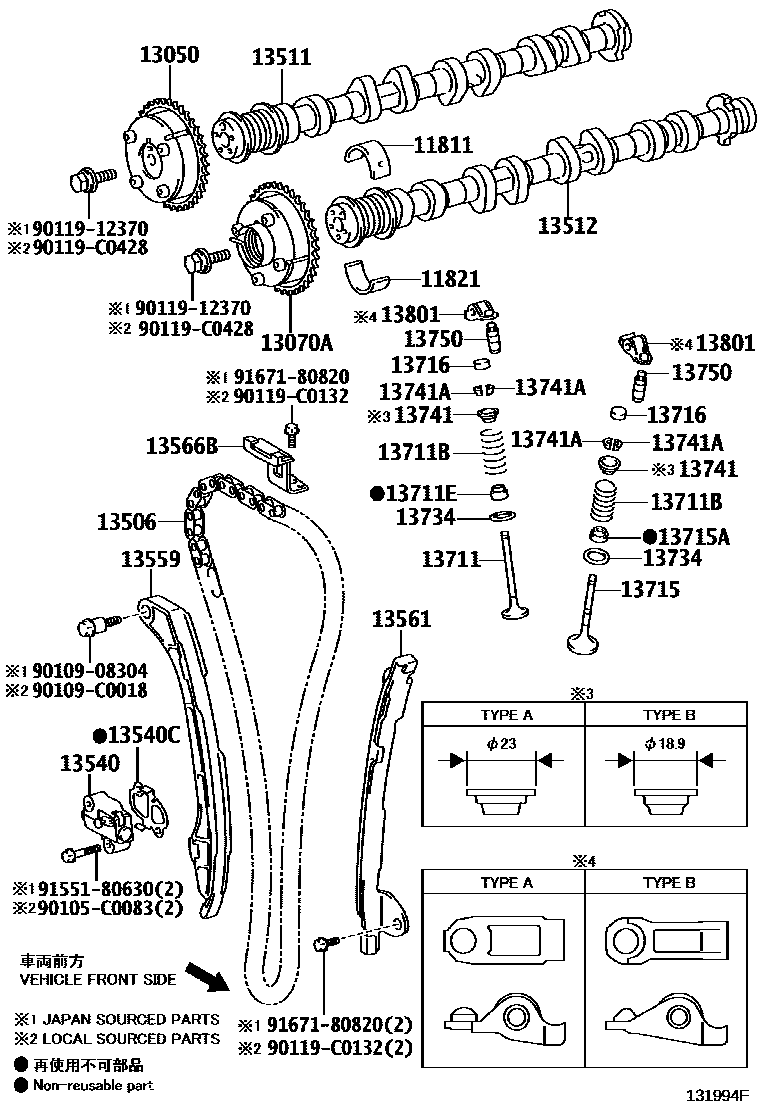

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13050GEAR ASSY, CAMSHAFT TIMING
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13506CHAIN SUB-ASSY
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13559SLIPPER, CHAIN TENSIONER
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
PNC 13741=TYPE A
PNC 13741=TYPE B
13711ESEAL, INTAKE VALVE STEM OIL
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
(L)
(J)
13741RETAINER, VALVE SPRING
(L),T/P A:REF.ILLUST
(L),T/P B:REF.ILLUST
(J),T/P A:REF.ILLUST
(J),T/P B:REF.ILLUST
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13750ADJUSTER ASSY, VALVE LASH
PNC 13801=TYPE A
PNC 13801=TYPE B
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
90105C0083
main90105-C0083
9010908304
main90109-08304
90109C0018
main90109-C0018
9011912370
main90119-12370
90119C0132
main90119-C0132
90119C0428
main90119-C0428
9155180630
main91551-80630
9167180820
main91671-80820
31 parts on this diagram · 3 diagrams in section
