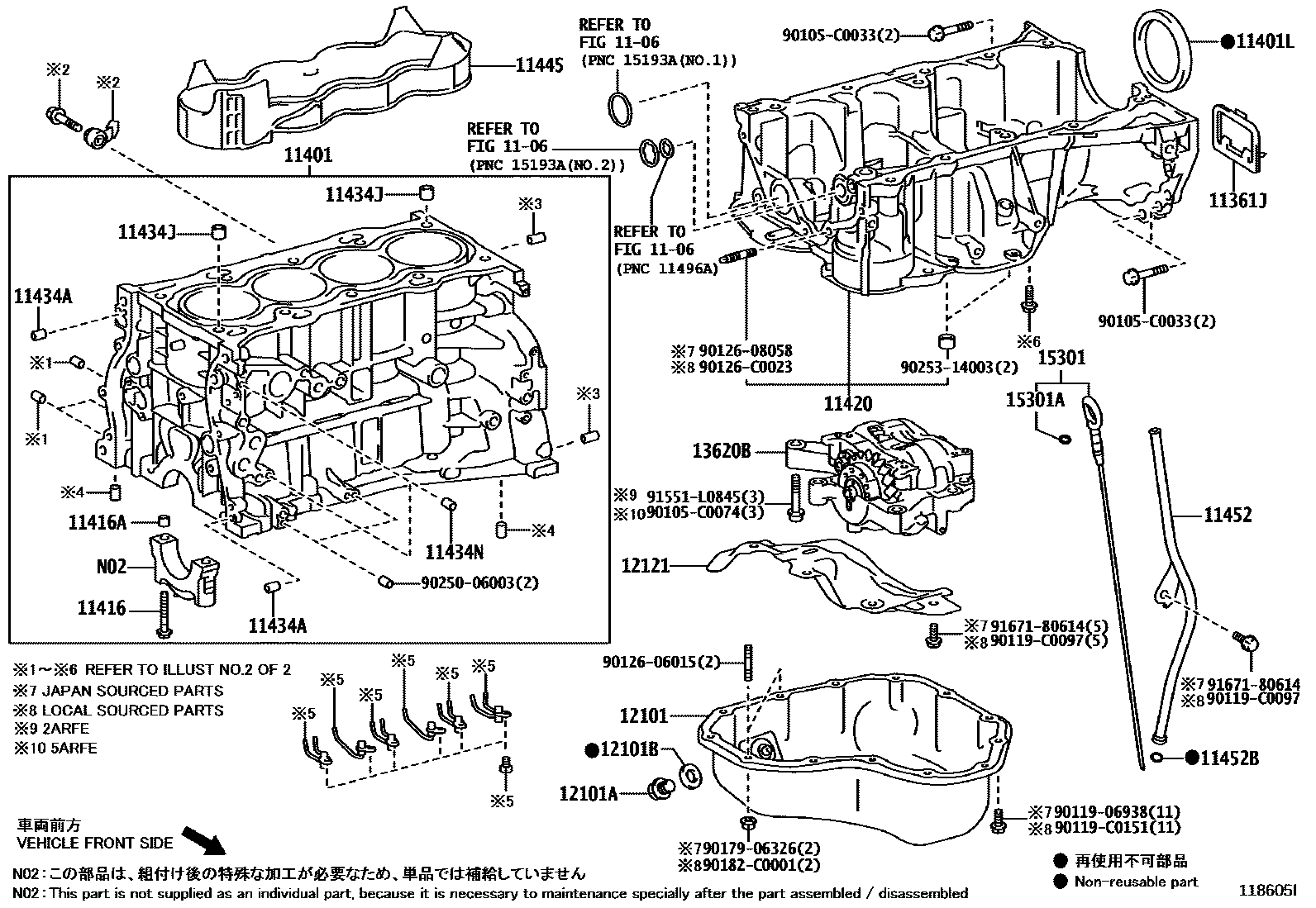

CYLINDER BLOCK
1106
11361JCOVER, FLYWHEEL HOUSING UNDER
(L)
(L)
(J)
(J)
11401LSEAL, ENGINE REAR OIL
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J)
(J)
(L)
(L)
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
(J)
(L)
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
L=12,OD=4.0
11434JPIN, RING (FOR CYLINDER HEAD SET)
(J)
(L)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
(L)
(J)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L)
(J)
12101PAN SUB-ASSY, OIL
(L)
(J)
12101APLUG(FOR OIL PAN DRAIN)
(J)
(L)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(J)
(L)
12121PLATE, OIL PAN BAFFLE, NO.1
13620BBALANCER ASSY, ENGINE
(L)
(J)
15301ARING, O(FOR OIL LEVEL GAGE)
90105C0033
main90105-C0033
90105C0074
main90105-C0074
9011906938
main90119-06938
90119C0097
main90119-C0097
90119C0151
main90119-C0151
9012606015
main90126-06015
9012608058
main90126-08058
90126C0023
main90126-C0023
9017906326
main90179-06326
90182C0001
main90182-C0001
9025006003
main90250-06003
9025314003
main90253-14003
91551L0845
main91551-L0845
9167180614
main91671-80614
34 parts on this diagram · 4 diagrams in section
