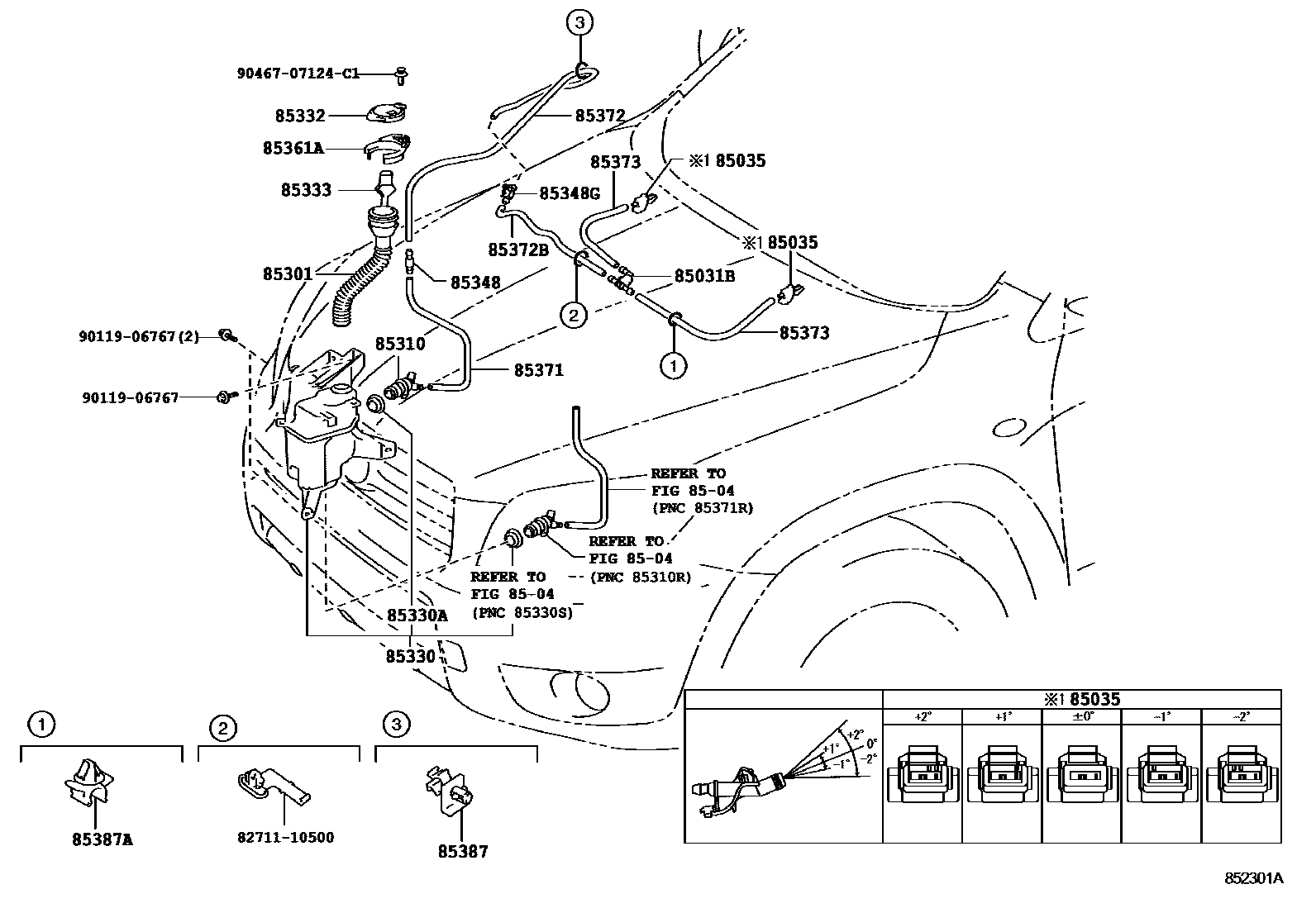

WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE +1
ANGLE -1
ANGLE +2
ANGLE -2
8504
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85361ABRACKET, WINDSHIELD WASHER, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=710
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=265
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=730
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=500
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10500
9011906767
main90119-06767
9046707124C1
main90467-07124C1
21 parts on this diagram · 1 diagram in section
