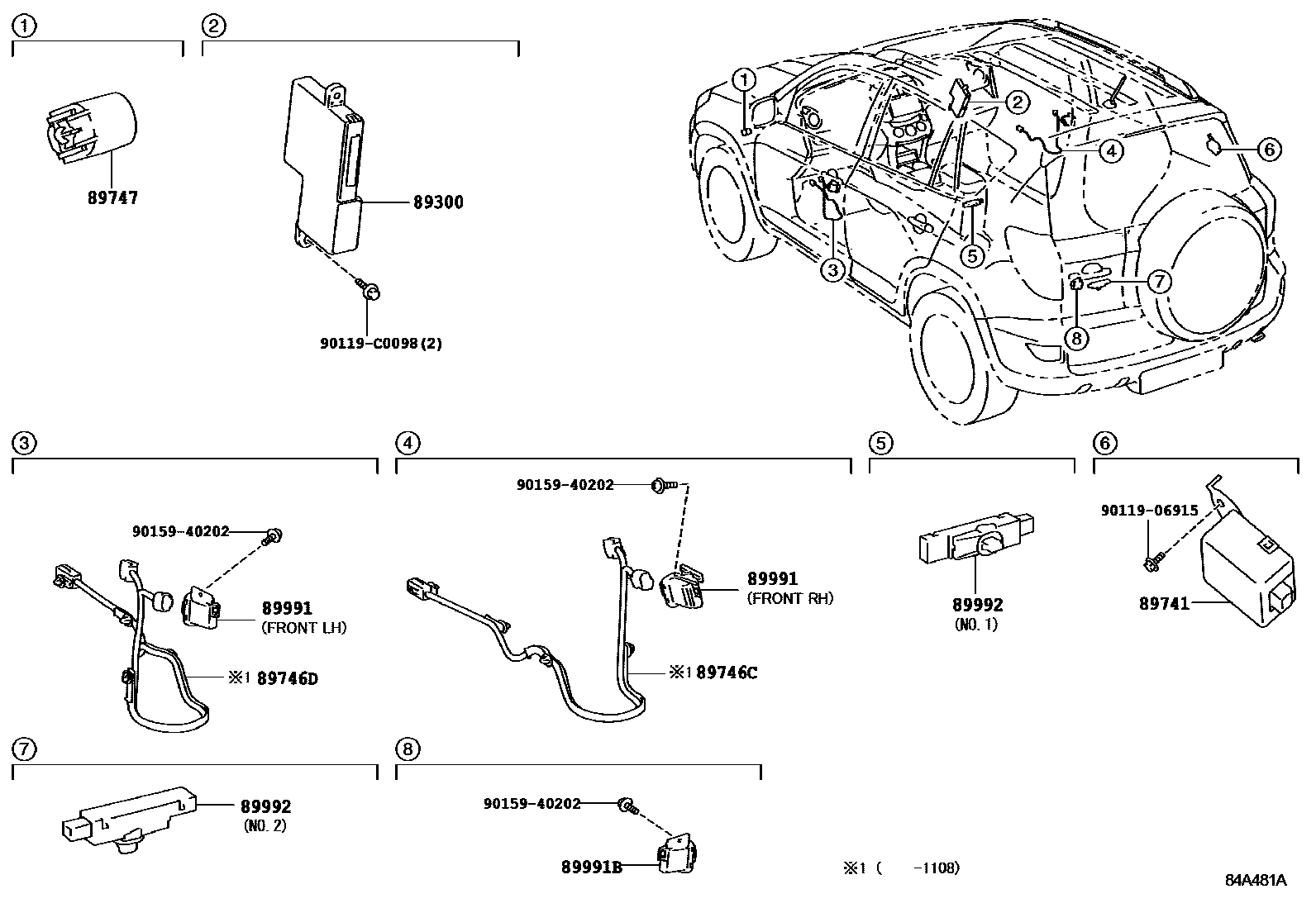

WIRELESS DOOR LOCK

0001 1W(SMART ENTRY) 0002 1W/O(SMART ENTRY)

89300BOX ASSY, ECU AGGREGATION

main89300-42070

main89300-42112

main89300-42113

89741RECEIVER, DOOR CONTROL

main89741-0R010supersedes 89740-0R020iACA37200903-201108

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-0R030iACA33200903-201108

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-0R040iACA33200903-201108

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040

main89991-30050

89991BOSCILLATOR, DOOR ELECTRICAL KEY(FOR LUGGAGE)

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-06050

main89992-02080

9011906915

main90119-06915

90119C0098

main90119-C0098

9015940202

main90159-40202

11 parts on this diagram · 2 diagrams in section
