CLEARANCE & BACK SONAR
89340ACOMPUTER ASSY, CLEARANCE WARNING
BACK MONITOR-WITHOUT
89341ASENSOR, ULTRASONIC, NO.1
BACK MONITOR-WITHOUT,SUPER WHITE 2,040
DLX PACKAGE,SILVER ME.,1F7
DLX PACKAGE,GRAY ME.,1G3
DLX PACKAGE,BLACK MC.,209
DLX PACKAGE,RED M.M.,3R3
DLX PACKAGE,DK. BROWN M.M.,4U3
89348RETAINER, ULTRASONIC SENSOR, NO.1
BACK MONITOR-WITHOUT,SUPER WHITE 2,040
DLX PACKAGE,SILVER ME.,1F7
DLX PACKAGE,GRAY ME.,1G3
DLX PACKAGE,BLACK MC.,209
DLX PACKAGE,RED M.M.,3R3
DLX PACKAGE,DK. BROWN M.M.,4U3
89348ARETAINER, ULTRASONIC SENSOR, NO.2
BACK MONITOR-WITHOUT,SUPER WHITE 2,040
DLX PACKAGE,SILVER ME.,1F7
DLX PACKAGE,GRAY ME.,1G3
DLX PACKAGE,BLACK MC.,209
DLX PACKAGE,RED M.M.,3R3
DLX PACKAGE,DK. BROWN M.M.,4U3
89348CRETAINER, ULTRASONIC SENSOR, NO.3
BACK MONITOR-WITHOUT,SUPER WHITE 2,040
DLX PACKAGE,SILVER ME.,1F7
DLX PACKAGE,GRAY ME.,1G3
DLX PACKAGE,BLACK MC.,209
DLX PACKAGE,RED M.M.,3R3
DLX PACKAGE,DK. BROWN M.M.,4U3
89348DCLIP, ULTRASONIC SENSOR
BACK MONITOR-WITHOUT
90119C0107
main90119-C0107

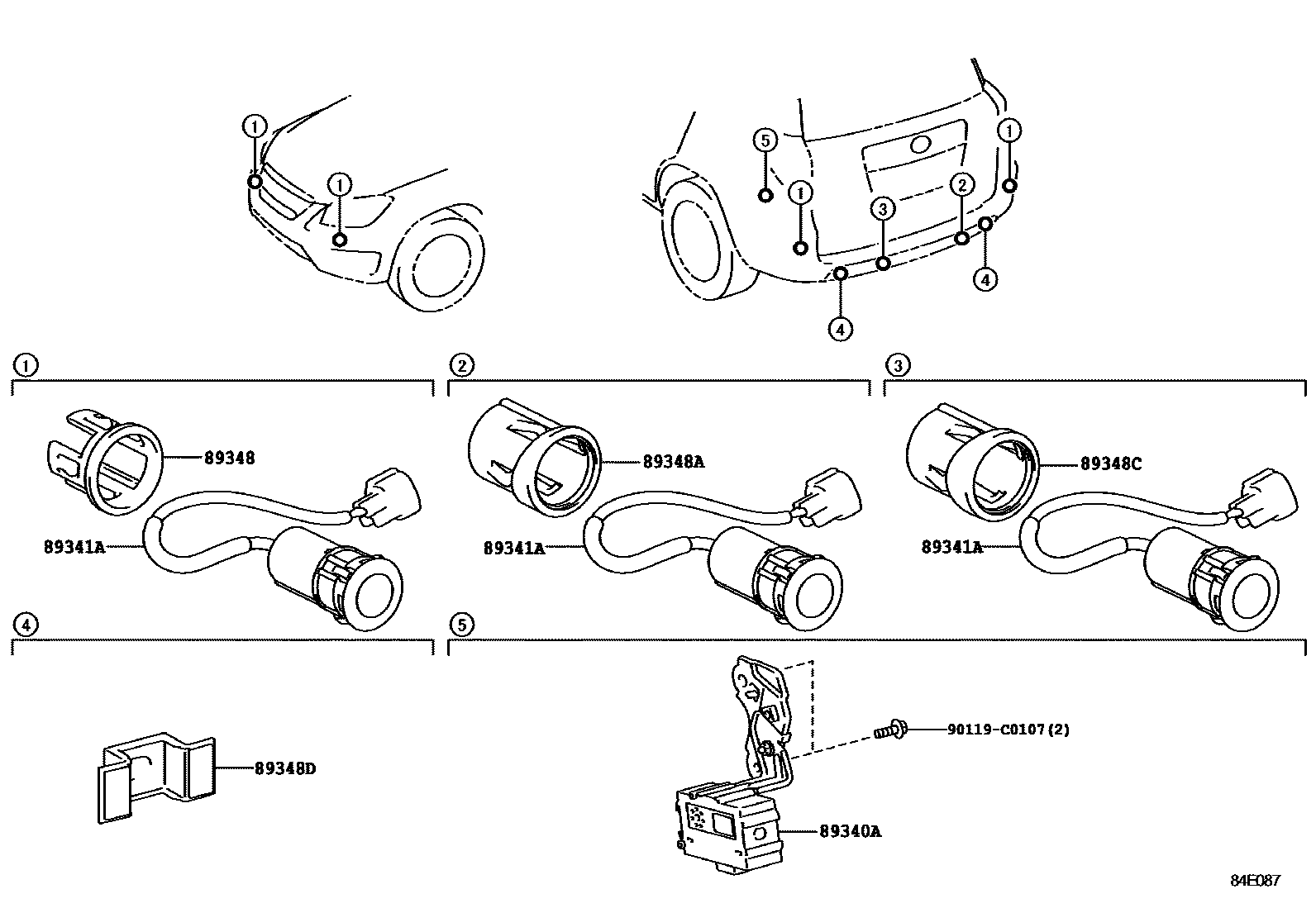

7 parts on this diagram · 1 diagram in section
