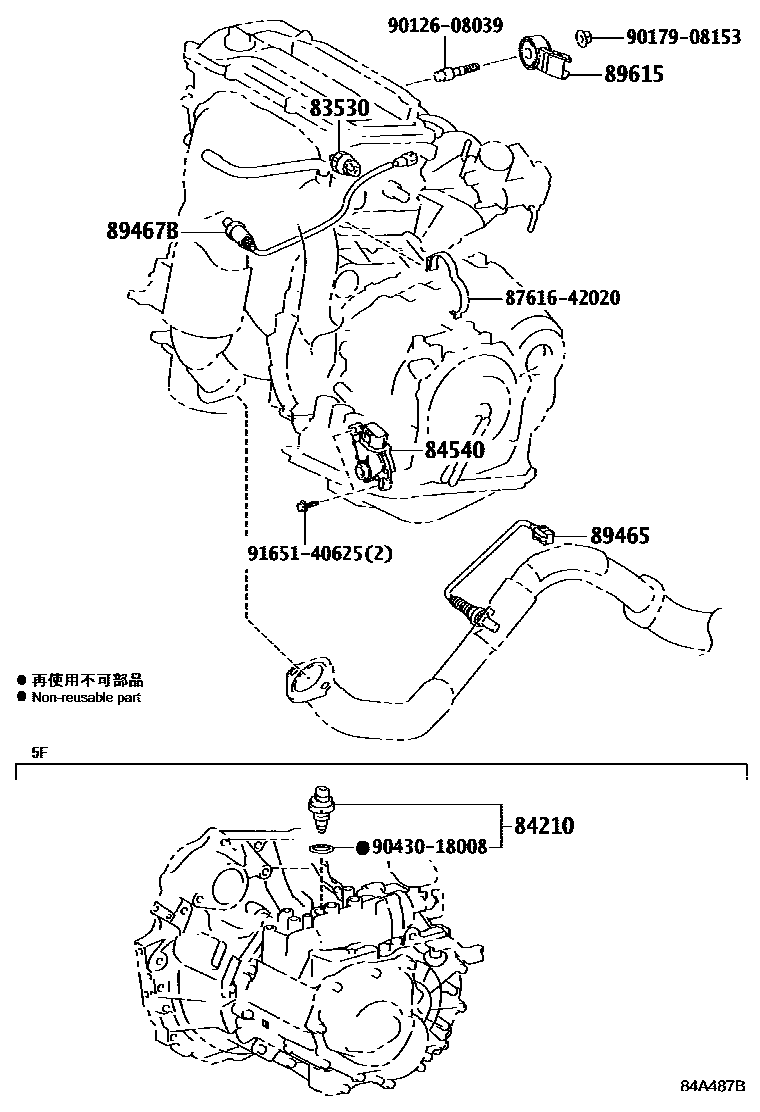

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1STEERING 0008 1SEAT 0009 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACA3#200903-201108

DENSO

main83530-60020iACA3#200903-201108

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iACA3#..5F200903-201206

sub84210-52050

main84210-52050iACA3#..5F201206-201307

84540SWITCH ASSY, NEUTRAL START

main84540-42010iACA3#..4FC200903-201307

89465SENSOR, OXYGEN

main89465-42170iACA3#200903-201108

89467BSENSOR, AIR FUEL RATIO

main89467-0R040iACA3#201011-201108

main89467-58030iACA3#200903-201011

89615SENSOR, KNOCK CONTROL

main89615-20090iACA3#200903-201108

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

11 parts on this diagram · 9 diagrams in section
