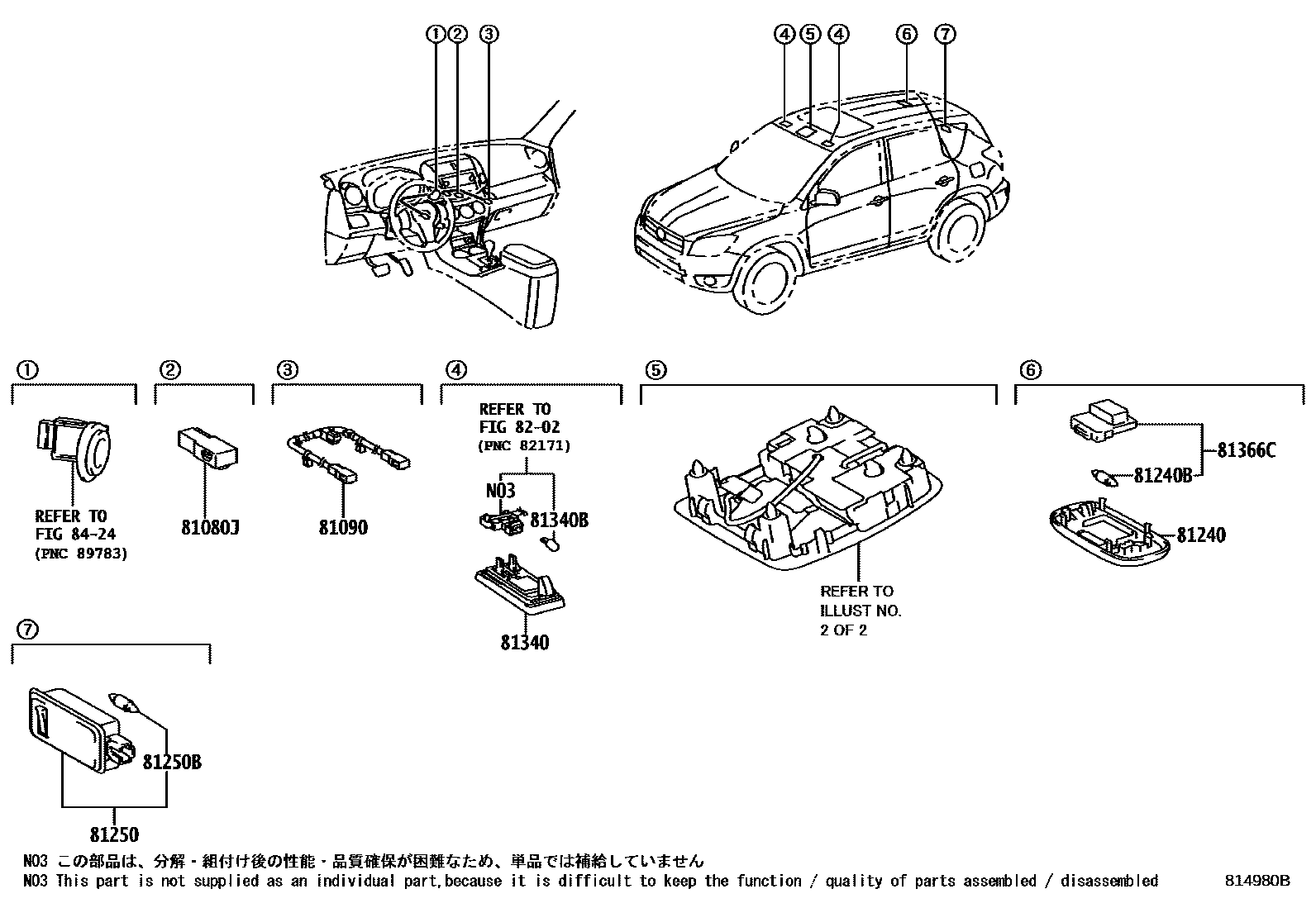

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-0R020iACA3#201209

main81080-42010iACA3#¥1,240200903-201208

sub81080-B2060

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-0R020iACA3#201209

main81090-42010iACA3#¥4,100200903-201208

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B0iACA3#200903-201307

GRAY,TRIM1#

main81240-52040-E2iACA3#201108-201307

SAND BEIGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iACA3#¥180200903-201108

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iACA3#¥2,420200903-201108

81250BBULB, ROOM LAMP, NO.2

main99132-13050iACA3#¥150200903-201108

12V 5W

81340LAMP ASSY, VANITY

main81340-0N010-B1iACA3#200903-201303

GRAY,TRIM1#

main81340-0N010-E1iACA3#201108-201303

SAND BEIGE,TRIM4#

main81340-0P010iACA3#201303

81340BBULB (FOR VANITY LAMP)

main90981-11062iACA3#¥340200903-201108

12V 8W

81366CBASE, ROOM LAMP SWITCH

main81366-68010iACA3#¥860200903-201307

8202

8424

11 parts on this diagram · 2 diagrams in section
