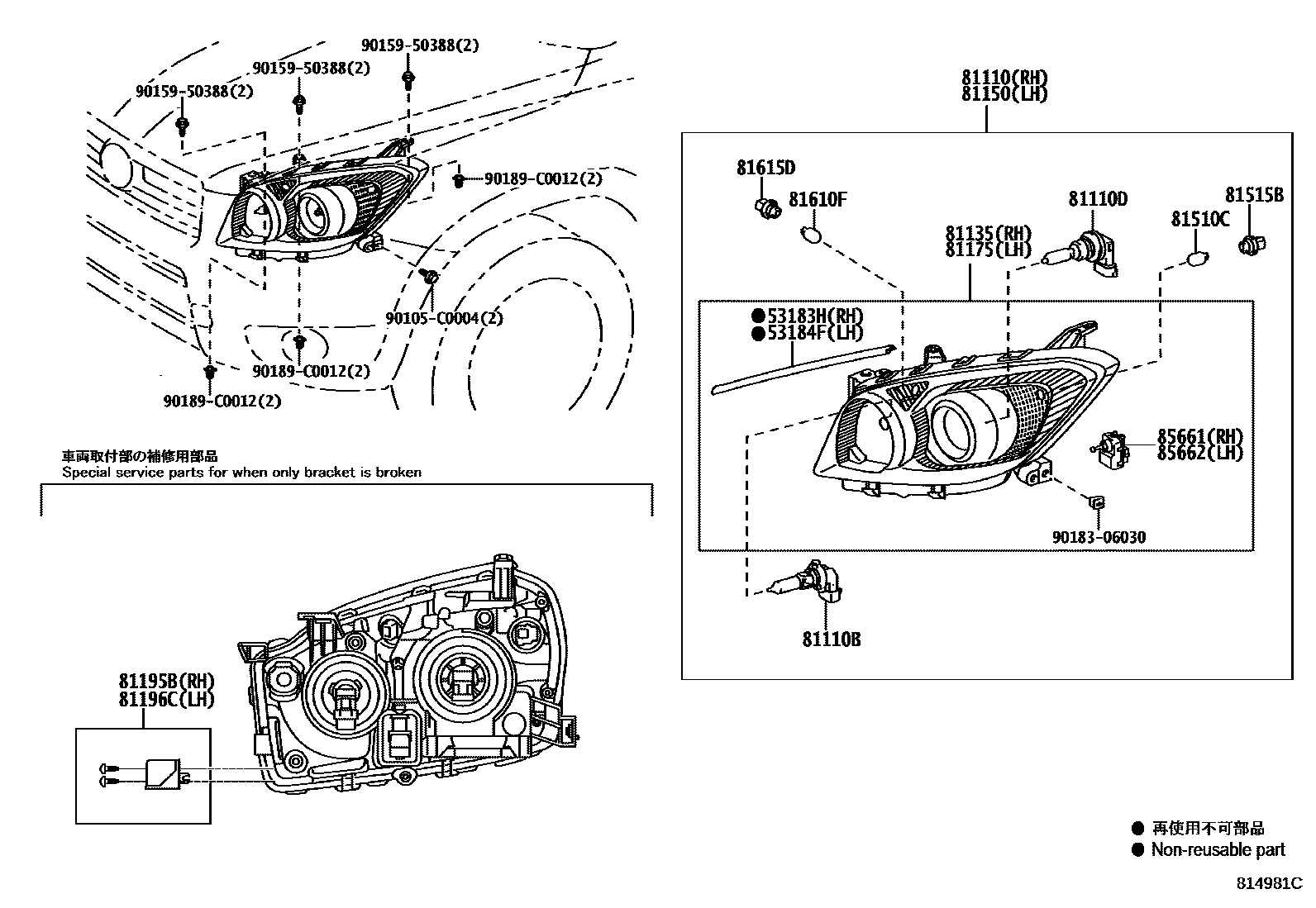

HEADLAMP
53183HSEAL, HEADLAMP COVER, RH
53184FSEAL, HEADLAMP COVER, LH
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
12V 60W
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W
81135UNIT ASSY, HEADLAMP, RH
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
90105C0004
main90105-C0004
9015950388
main90159-50388
9018306030
main90183-06030
90189C0012
main90189-C0012
20 parts on this diagram · 1 diagram in section
