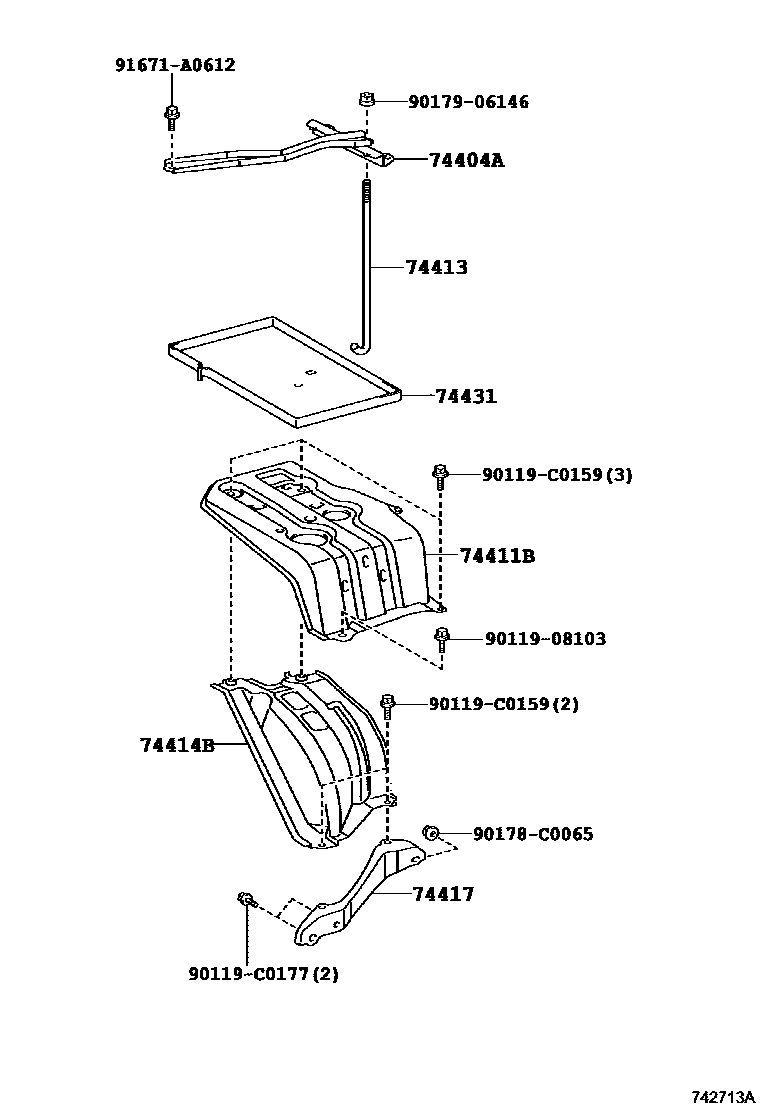

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-0R020iACA3#200903-201108

74411BBRACKET, BATTERY, FRONT

main74411-0R020iACA3#200903-201108

74413BOLT, BATTERY CLAMP

main74451-58011iACA3#200903-201108

74414BREINFORCEMENT, BATTERY BRACKET

main74414-0R020iACA3#200903-201108

74417BRACKET, BATTERY CARRIER

main74417-0R020iACA3#200903-201108

74431TRAY, BATTERY

main74431-0R020iACA3#200903-201108

9011908103

main90119-08103

90119C0159

main90119-C0159

90119C0177

main90119-C0177

90178C0065

main90178-C0065

9017906146

main90179-06146

91671A0612

main91671-A0612

12 parts on this diagram · 1 diagram in section
