EPC Data

SEAT & SEAT TRACK

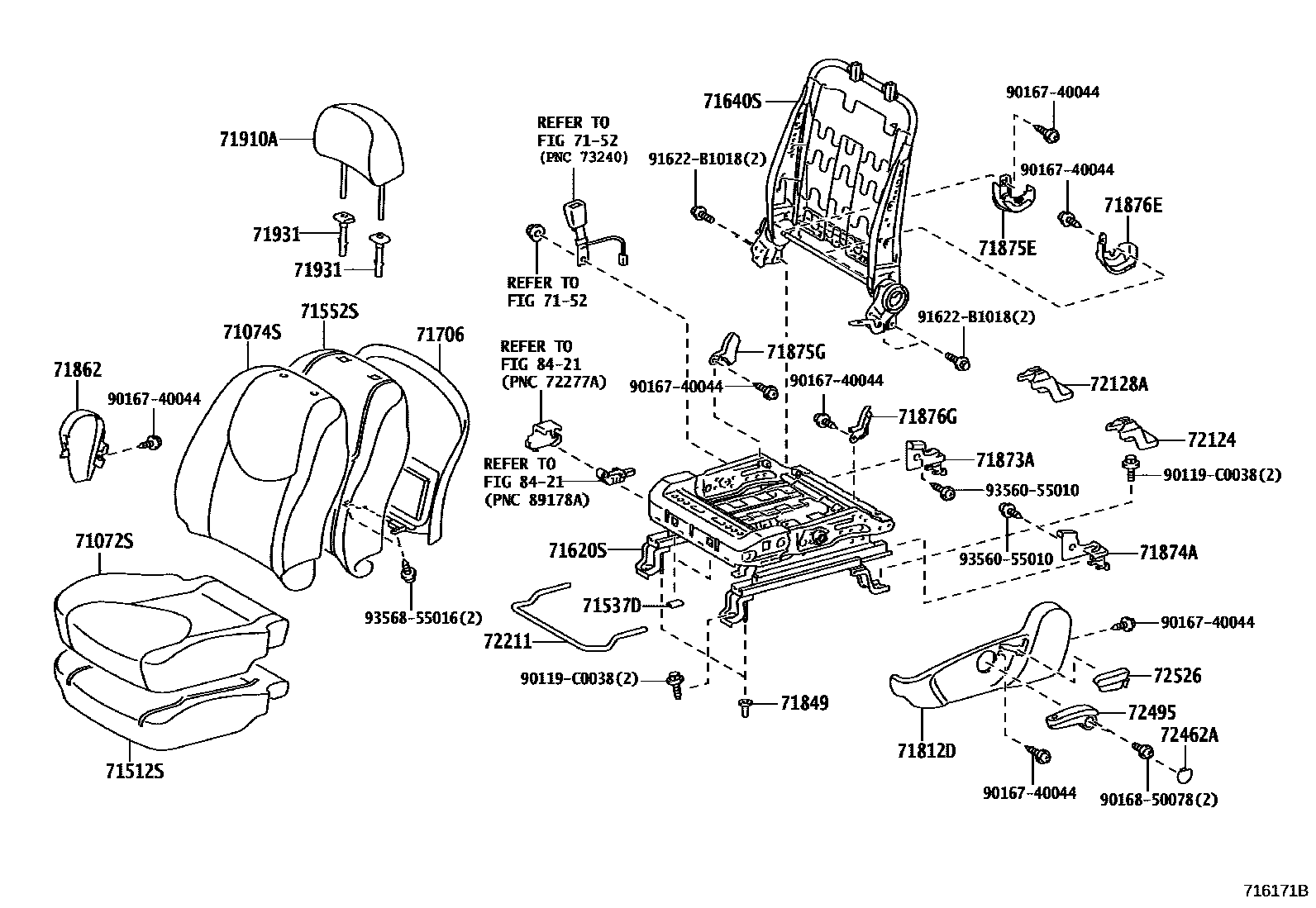

Parts diagram
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0R050-B2i200903-201006
GRAY,TRIM1#
sub71072-0R051
main71072-0R051-B2i201007-201108
GRAY,TRIM1#
main71072-0R051-B3i201108-201307
DK.GRAY,TRIM1#
main71072-0R051-B3i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#
main71072-0R051-E0i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
main71072-0R051-E0i201108-201307
SAND BEIGE,TRIM4#
main71072-0R060-B1i200903-201108
GRAY,TRIM1#
main71072-0R060-B1i200903-201108
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#
main71072-0R060-B2i201108-201307
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71072-0R060-B2i201108-201307
DK.GRAY,TRIM1#
main71072-0R060-B2i201108-201307
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71072-0R060-E0i201108-201307
SAND BEIGE,TRIM4#
main71072-0R060-E0i201108-201307
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
main71072-0R060-E0i201108-201307
SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-0R090-B2i200903-201006
GRAY,TRIM1#
sub71073-0R091
main71073-0R091-B2i201007-201108
GRAY,TRIM1#
main71074-0R051-B4i201108-201307
DK.GRAY,TRIM1#
sub71074-0R180
main71074-0R051-B4i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#
sub71074-0R180
main71074-0R051-E0i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
sub71074-0R180
main71074-0R051-E0i201108-201307
SAND BEIGE,TRIM4#
sub71074-0R180
main71074-0R060-B2i200903-201108
GRAY,TRIM1#
sub71074-0R190
main71074-0R060-B2i200903-201108
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#
sub71074-0R190
main71074-0R060-B3i201108-201307
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71074-0R190
main71074-0R060-B3i201108-201307
DK.GRAY,TRIM1#
sub71074-0R190
main71074-0R060-B3i201108-201307
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71074-0R190
main71074-0R060-E0i201108-201307
SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71074-0R190
main71074-0R060-E0i201108-201307
SAND BEIGE,TRIM4#
sub71074-0R190
main71074-0R060-E0i201108-201307
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71074-0R190
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71052-0R020i200903-201108
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
main71052-0R020i201108
SEAT COVER MATERIAL-NATURAL LEATHER
main71512-0R050i201108
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC
main71512-0R050i200903-201108
7152
71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH
main71537-02020i200903-201108
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-0R060i200903-201108
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-0R010i200903-201108
main71620-0R010i201108
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC
main71620-0R020i200903-201108
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
main71620-0R020i201108
SEAT COVER MATERIAL-NATURAL LEATHER
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-0R010i200903-201108
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71771-0R020-B2i200903-201108
GRAY,TRIM1#
main71771-0R020-B3i201108-201307
DK.GRAY,TRIM1#
main71771-0R020-E0i201108-201307
SAND BEIGE,TRIM4#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0R030-B0i200903-201108
GRAY,TRIM1#
main71812-0R030-B1i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#
main71812-0R030-B1i201108-201307
DK.GRAY,TRIM1#
main71812-0R030-E0i201108-201307
SAND BEIGE,TRIM4#
main71812-0R030-E0i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
main71812-0R040-B0i200903-201108
GRAY,TRIM1#
main71812-0R040-B0i200903-201108
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#
main71812-0R040-B1i201108-201307
DK.GRAY,TRIM1#
main71812-0R040-E0i201108-201307
SAND BEIGE,TRIM4#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-33010i¥100200903-201108
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-06130-B0i201108-201307
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71862-06130
main71862-06130-B0i201108-201307
DK.GRAY,TRIM1#
sub71862-06130
main71862-06130-B0i201108-201307
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71862-06130
main71862-06130-B1i200903-201108
GRAY,TRIM1#
sub71862-06130
main71862-06130-B1i200903-201108
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#
sub71862-06130
main71862-06130-E1i201108-201307
SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71862-06130
main71862-06130-E1i201108-201307
SAND BEIGE,TRIM4#
sub71862-06130
main71862-06130-E1i201108-201307
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71862-06130
main71862-0R030-B0i200903-201108
GRAY,TRIM1#
sub71862-0R030
main71862-0R030-B1i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#
sub71862-0R030
main71862-0R030-B1i201108-201307
DK.GRAY,TRIM1#
sub71862-0R030
main71862-0R030-E0i201108-201307
SAND BEIGE,TRIM4#
sub71862-0R030
main71862-0R030-E0i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
sub71862-0R030
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-06280i200903-201108
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-06240i200903-201108
71875ECOVER, RECLINING ADJUSTER INSIDE, RH
main71875-06340i200903-201108
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-06240-B0i201108-201307
DK.GRAY,TRIM1#
sub71875-06240
main71875-06240-B0i201108-201307
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71875-06240
main71875-06240-B0i201108-201307
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71875-06240
main71875-06240-B1i200903-201108
GRAY,TRIM1#
sub71875-06240
main71875-06240-B1i200903-201108
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#
sub71875-06240
main71875-06240-E1i201108-201307
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71875-06240
main71875-06240-E1i201108-201307
SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71875-06240
main71875-06240-E1i201108-201307
SAND BEIGE,TRIM4#
sub71875-06240
main71875-0R020-B0i200903-201108
GRAY,TRIM1#
sub71875-0R020
main71875-0R020-B1i201108-201307
DK.GRAY,TRIM1#
sub71875-0R020
main71875-0R020-B1i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#
sub71875-0R020
main71875-0R020-E0i201108-201307
SAND BEIGE,TRIM4#
sub71875-0R020
main71875-0R020-E0i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
sub71875-0R020
71876ECOVER, RECLINING ADJUSTER INSIDE, LH
main71876-06230i200903-201108
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
main71876-06230i201108
SEAT COVER MATERIAL-NATURAL LEATHER
main71876-06370i200903-201108
main71876-06370i201108
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-06270-B0i201108-201307
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71876-06270
main71876-06270-B0i201108-201307
DK.GRAY,TRIM1#
sub71876-06270
main71876-06270-B0i201108-201307
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71876-06270
main71876-06270-B1i200903-201108
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#
sub71876-06270
main71876-06270-B1i200903-201108
GRAY,TRIM1#
sub71876-06270
main71876-06270-E1i201108-201307
SAND BEIGE,TRIM4#
sub71876-06270
main71876-06270-E1i201108-201307
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71876-06270
main71876-06270-E1i201108-201307
SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71876-06270
main71876-0R020-B0i200903-201108
GRAY,TRIM1#
sub71876-0R020
main71876-0R020-B1i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#
sub71876-0R020
main71876-0R020-B1i201108-201307
DK.GRAY,TRIM1#
sub71876-0R020
main71876-0R020-E0i201108-201307
SAND BEIGE,TRIM4#
sub71876-0R020
main71876-0R020-E0i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
sub71876-0R020
71910AHEADREST ASSY, FRONT SEAT
main71910-0R040-B1i200903-201108
GRAY,TRIM1#
main71910-0R040-B2i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,DARK GRAY,TRIM1#
main71910-0R040-B2i201108-201307
DARK GRAY,TRIM1#
main71910-0R040-E0i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
main71910-0R040-E0i201108-201307
SAND BEIGE,TRIM4#
main71910-0R050-B0i200903-201108
GRAY,TRIM1#
main71910-0R050-B0i200903-201108
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#
main71910-0R050-B1i201108-201307
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71910-0R050-B1i201108-201307
DK.GRAY,TRIM1#
main71910-0R050-B1i201108-201307
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71910-0R050-E0i201108-201307
SAND BEIGE,TRIM4#
main71910-0R050-E0i201108-201307
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
main71910-0R050-E0i201108-201307
SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-02360-B0i201108-201307
W(LOCK),DK.GRAY,TRIM1#
sub71930-02360
main71930-02360-B1i200903-201108
W(LOCK),GRAY,TRIM1#
sub71930-02360
main71930-02360-E2i201108-201307
W(LOCK),SAND BEIGE,TRIM4#
sub71930-02360
main71931-02120-B0i201108-201307
W/O(LOCK),DK.GRAY,TRIM1#
sub71931-02120
main71931-02120-B1i200903-201108
W/O(LOCK),GRAY,TRIM1#
sub71931-02120
main71931-02120-E2i201108-201307
W/O(LOCK),SAND BEIGE,TRIM4#
sub71931-02120
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-0R020-B0i200903-201108
GRAY,TRIM1#
sub72124-0R020
main72124-0R020-B1i201108-201307
DK.GRAY,TRIM1#
sub72124-0R020
main72124-0R020-E0i201108-201307
SAND BEIGE,TRIM4#
sub72124-0R020
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-0R030-B0i200903-201108
GRAY,TRIM1#
sub72128-0R030
main72128-0R030-B1i201108-201307
DK.GRAY,TRIM1#
sub72128-0R030
main72128-0R030-E0i201108-201307
SAND BEIGE,TRIM4#
sub72128-0R030
72211HANDLE, SEAT TRACK ADJUSTING
main72211-06040i201108
SEAT COVER MATERIAL-NATURAL LEATHER
main72211-06040i200903-201108
DLX PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
main72211-06040i201108
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC
72462ACOVER, VERTICAL ADJUSTER LH
main72462-06050-B0i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#
main72462-06050-B0i201108-201307
DK.GRAY,TRIM1#
main72462-06050-B1i200903-201108
GRAY,TRIM1#
main72462-06050-E1i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
main72462-06050-E1i201108-201307
SAND BEIGE,TRIM4#
72495HANDLE, VERTICAL ADJUSTING, LH
main72494-02130-B0i201108-201307
DK.GRAY,TRIM1#
main72494-02130-B0i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#
main72494-02130-B1i200903-201108
GRAY,TRIM1#
main72494-02130-E1i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
main72494-02130-E1i201108-201307
SAND BEIGE,TRIM4#
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06050-B0i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#
main72526-06050-B0i201108-201307
DK.GRAY,TRIM1#
main72526-06050-B1i200903-201108
GRAY,TRIM1#
main72526-06050-E1i201108-201307
SAND BEIGE,TRIM4#
main72526-06050-E1i201108-201307
CONF PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
8421
90119C0038
main90119-C0038
9016740044
main90167-40044¥70
9016850078
main90168-50078¥60
91622B1018
main91622-B1018¥110
9356055010
main93560-55010¥60
9356855016
main93568-55016¥70

33 parts on this diagram · 7 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
