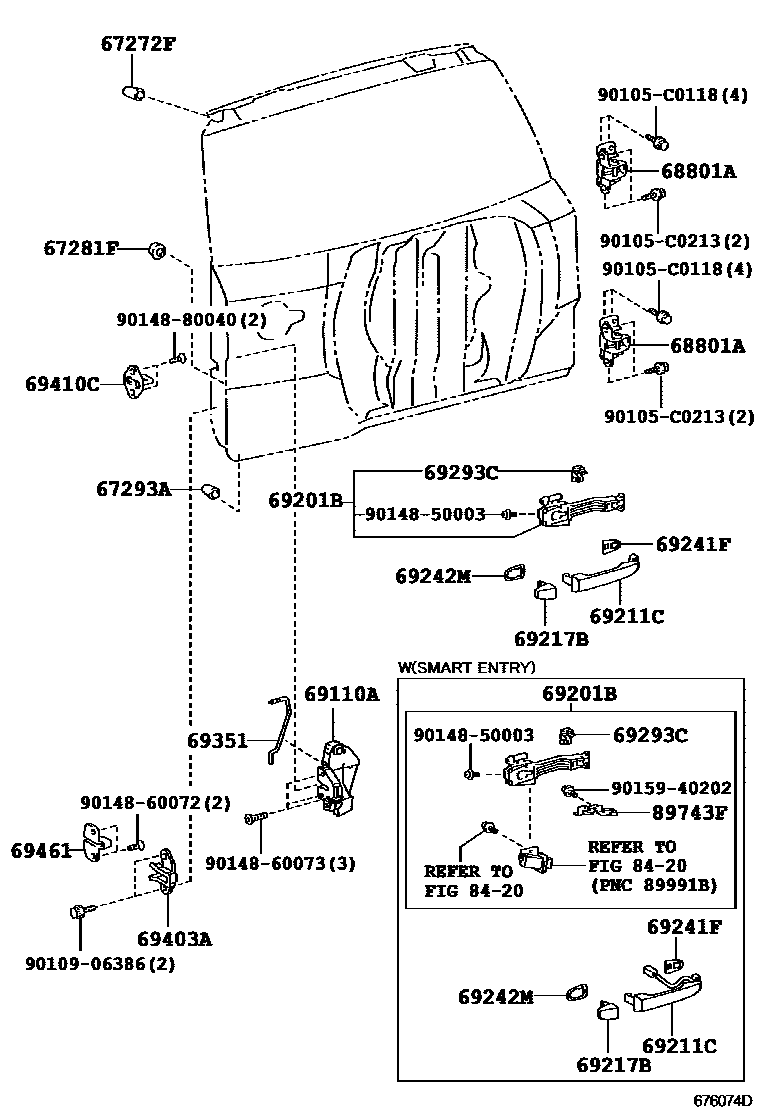

BACK DOOR LOCK & HINGE
67272FCUSHION, BACK DOOR STOPPER, NO.2
67281FSTOPPER, BACK DOOR, LOWER
67293ACUSHION, BACK DOOR STOPPER
68801AHINGE SUB-ASSY, BACK DOOR, UPPER
sub68801-0R021
69201BFRAME SUB-ASSY, BACK DOOR OUTSIDE HANDLE
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON)
69211CHANDLE, BACK DOOR OUTSIDE
WIRELESS DOOR LOCK-WITH(2 BUTTON),SUPER WHITE 2,040
SUPER WHITE 2,040
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),SUPER WHITE 2,040
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),SILVER ME.,1F7
SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(2 BUTTON),SILVER ME.,1F7
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(2 BUTTON),GRAY ME.,1G3
GRAY ME.,1G3
SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3,METALLIC PAINTED
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3
WIRELESS DOOR LOCK-WITH(2 BUTTON),SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3
BLACK MC.,209
WIRELESS DOOR LOCK-WITH(2 BUTTON),BLACK MC.,209
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),BLACK MC.,209
RED M.M.,3R3
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),RED M.M.,3R3
WIRELESS DOOR LOCK-WITH(2 BUTTON),RED M.M.,3R3
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),DK. BROWN M.M.,4U3
WIRELESS DOOR LOCK-WITH(2 BUTTON),DK. BROWN M.M.,4U3
DK.BLUE MC.,8S6
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),SUPER WHITE 2,040
sub69211-02944
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),SILVER ME.,1F7
sub69211-02944
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),GRAY ME.,1G3
sub69211-02944
SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3,METALLIC PAINTED
sub69211-02944
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3,METALLIC PAINTED
sub69211-02944
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),BLACK MC.,209
sub69211-02944
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),RED M.M.,3R3
sub69211-02944
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON),DK. BROWN M.M.,4U3
sub69211-02944
69217BCOVER, BACK DOOR OUTSIDE HANDLE
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3,METALLIC PAINTED
BLACK MC.,209
RED M.M.,3R3
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
DK.BLUE MC.,8S6
69241FPAD, DOOR OUTSIDE HANDLE
69242MPAD, BACK DOOR OUTSIDE HANDLE, REAR
69293CSNAP, BACK DOOR HANDLE
69351ROD, BACK DOOR LOCK CONTROL, UPPER
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
69461STOPPER, BACK DOOR SIDE MALE, RH
8420
89743FBRACKET, ELECTRICAL KEY WIRE HARNESS
CONF PACKAGE&WIRELESS DOOR LOCK-WITH(2 BUTTON)
WIRELESS DOOR LOCK-WITH(2 BUTTON)
90105C0118
main90105-C0118
90105C0213
main90105-C0213
9010906386
main90109-06386
9014850003
main90148-50003
9014860072
main90148-60072
9014860073
main90148-60073
9014880040
main90148-80040
9015940202
main90159-40202
25 parts on this diagram · 1 diagram in section
