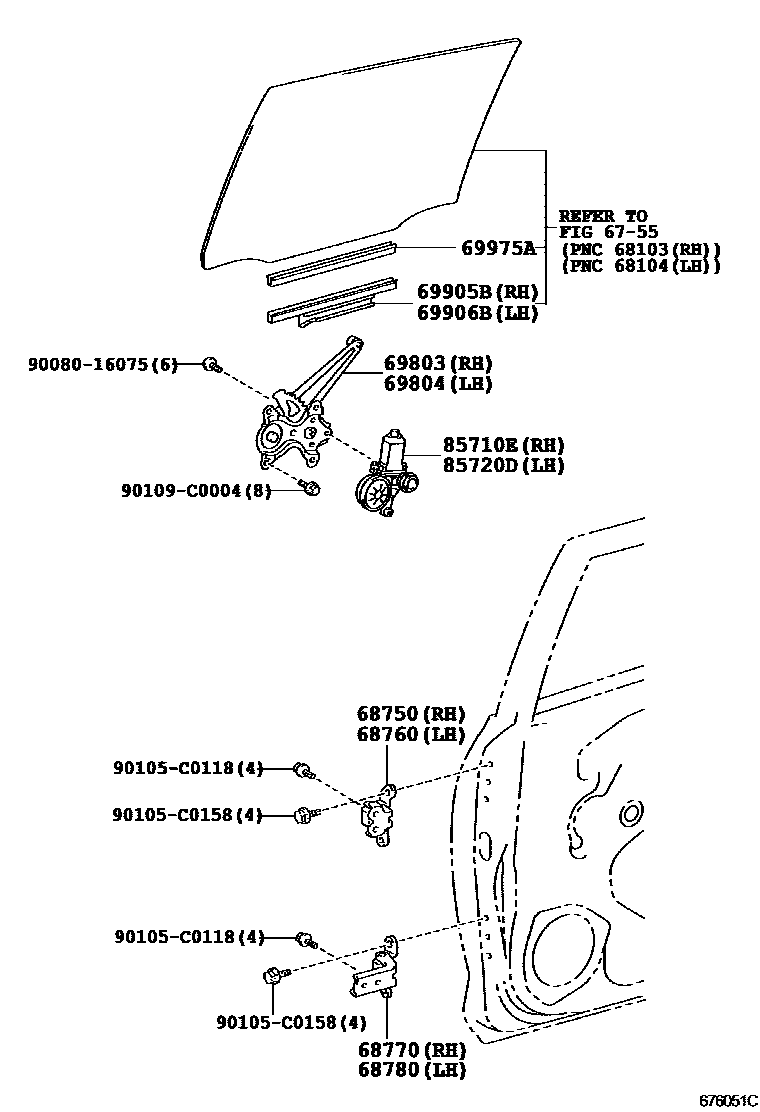

REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P011iACA3#200903-201108

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P011iACA3#200903-201108

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D021iACA3#200903-201108

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D021iACA3#200903-201108

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0R020iACA3#200903-201108

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0R020iACA3#200903-201108

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0R020iACA3#200903-201307

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0R020iACA3#200903-201307

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0R050iACA3#200903-201307

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-06210iACA3#200903-201108

sub85720-35140

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-06190iACA3#200903-201108

sub85710-35180

9008016075

main90080-16075

90105C0118

main90105-C0118

90105C0158

main90105-C0158

90109C0004

main90109-C0004

16 parts on this diagram · 1 diagram in section
