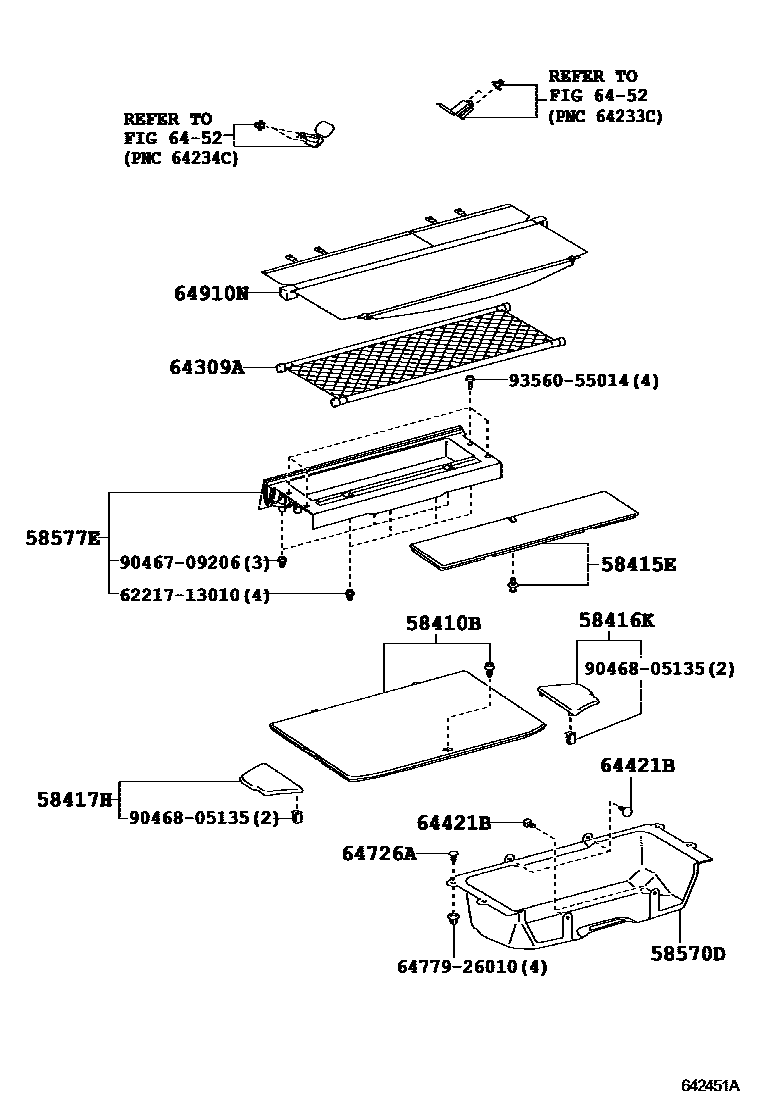

DECK BOARD & DECK TRIM COVER
58410BBOARD ASSY, DECK
58415EBOARD, REAR FLOOR, NO.1
58416KBOARD, REAR FLOOR, NO.2
DK.GRAY,TRIM1#
SAND BEIGE,TRIM4#
58417HBOARD, REAR FLOOR, NO.3
DK.GRAY,TRIM1#
SAND BEIGE,TRIM4#
58570DCARPET ASSY, REAR FLOOR
sub58571-0R031
58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1
64309APOCKET SUB-ASSY, PACKAGE TRAY TRIM
64421BCLIP(FOR LUGGAGE COMPARTMENT TRAY)
BLACK
6452
64726ACLIP, LUGGAGE TRIM, REAR
DK.GRAY
64910NCOVER ASSY, TONNEAU
6221713010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-13010
6477926010TRAY, SPARE WHEEL COVER
main64779-26010
9046709206
main90467-09206
9046805135
main90468-05135
9356055014
main93560-55014
16 parts on this diagram · 1 diagram in section
