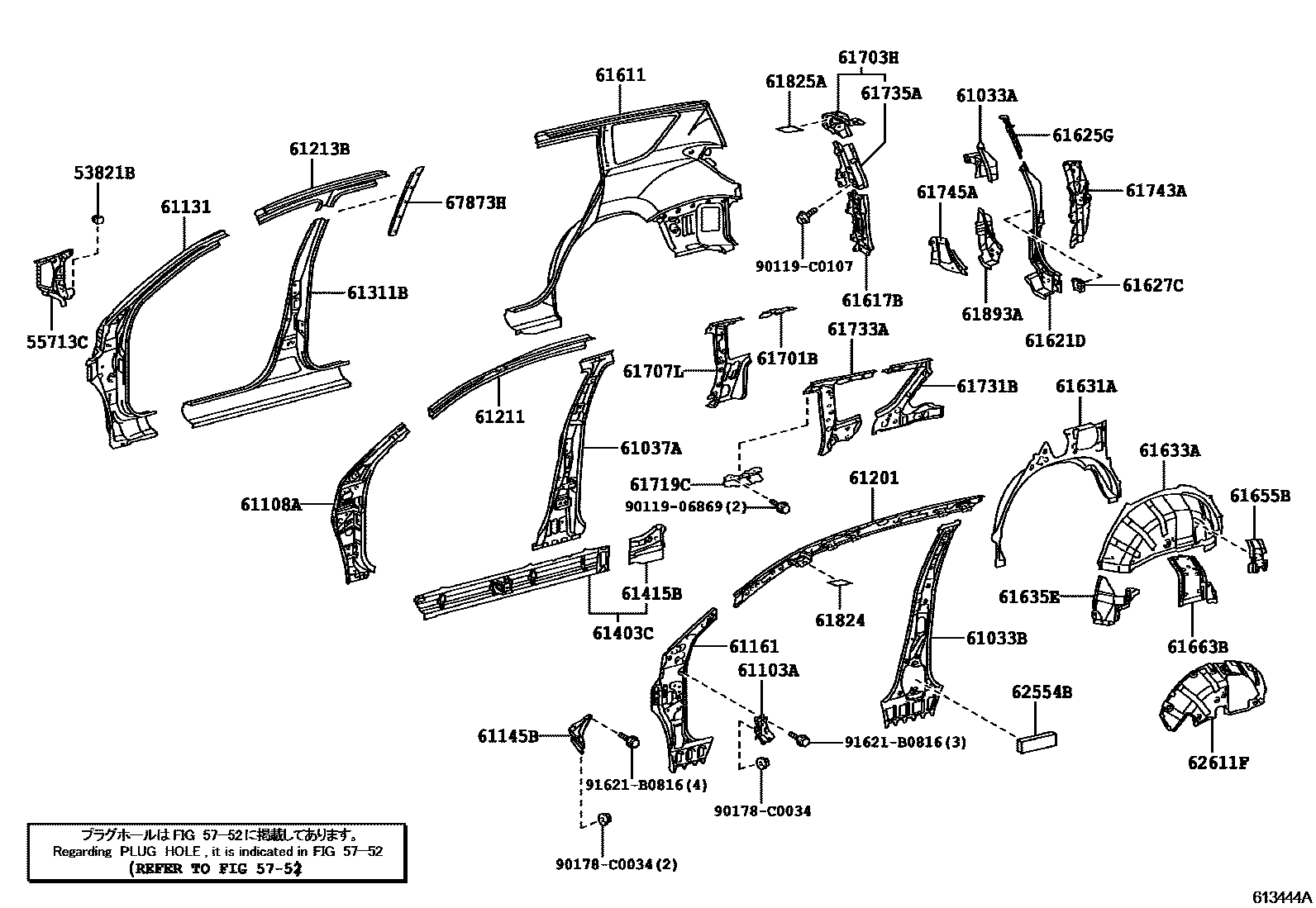

SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
55713CPANEL, COWL TOP SIDE, RH
5752
61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61033BPILLAR SUB-ASSY, NO.2 INNER, RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61161PILLAR, FRONT BODY, UPPER INNER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61311BPILLAR, CENTER BODY, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61415BEXTENSION, ROCKER, OUTER RH
61617BPANEL, QUARTER INNER, LOWER RH
61621DTROUGH, BACK DOOR OPENING, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61627CREINFORCEMENT, QUARTER INNER PANEL, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61635EEXTENSION, QUARTER WHEEL HOUSE, RH
61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61719CBRACKET, ROOF SIDE RAIL, RH
DLX PACKAGE
SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE)
SRS AIR BAG-W(DRIVER&PASSENGER&SIDE) & W/O(CURTAIN)
61731BPANEL, ROOF SIDE, INNER RH
61733APANEL, ROOF SIDE, INNER FRONT RH
61735APANEL, ROOF SIDE, INNER REAR RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61893ARETAINER, BACK DOOR LOWER HINGE, RH
62554BPAD, PILLAR, NO.4
62611FINSULATOR, QUARTER WHEEL HOUSE, RH
67873HWEATHERSTRIP, CENTER DOOR, UPPER NO.1
9011906869
main90119-06869
90119C0107
main90119-C0107
90178C0034
main90178-C0034
91621B0816
main91621-B0816
46 parts on this diagram · 2 diagrams in section
