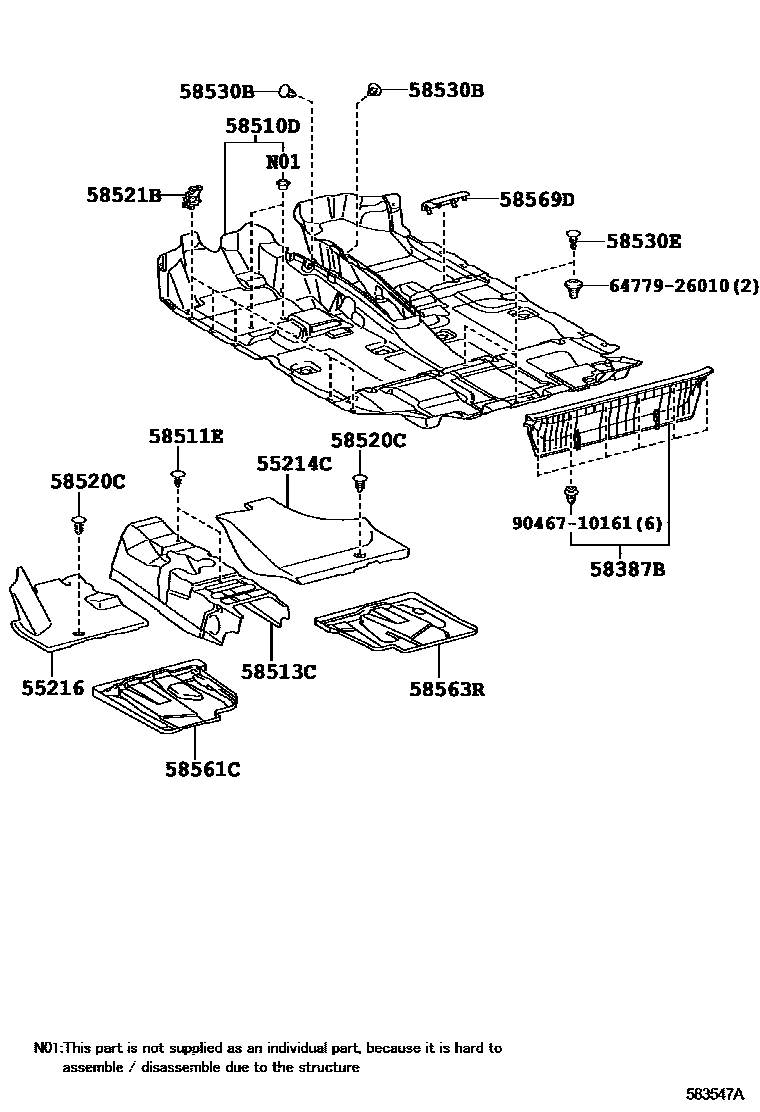

FLOOR MAT & SILENCER PAD

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0R020iACA3#200903-201108

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-0R020iACA3#200903-201108

58387BPLATE, REAR FLOOR FINISH

main58387-0R030-B0iACA3#200903-201108

DK.GRAY,TRIM1#

main58387-0R030-B0iACA3#201108-201307

DK.GRAY,TRIM1#,4#

58510DCARPET ASSY, FLOOR, FRONT

main58510-0R030-B1iACA3#200903-201108

GRAY,TRIM1#

main58510-0R030-B2iACA3#201108-201307

DK.GRAY,TRIM1#

main58510-0R030-E0iACA3#201108-201307

SAND BEIGE,TRIM4#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-05164-C0iACA3#200903-201106

BLACK

sub90467-05164

main90467-C0016-C0iACA3#201107-201307

BLACK

58513CMAT, FLOOR, FRONT CENTER

main58513-0R020iACA3#200903-201108

58520CCLIP(FOR FRONT FLOOR CARPET)

main63399-26050-B2iACA3#200903-201307

GRAY

58521BHOOK, FLOOR CARPET

main58521-0R020iACA3#200903-201108

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09050iACA3#200903-201210

main90467-09050iACA3#201210

(J)

main90467-C0006iACA3#201210

(L)

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main64726-26010-B1iACA3#201108-201307

DK.GRAY,TRIM1#

main64726-26010-B2iACA3#200903-201108

GRAY,TRIM1#

main64726-26010-E1iACA3#201108-201307

SAND BEIGE,TRIM4#

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0R020iACA3#200903-201108

58563RSILENCER, FRONT FLOOR, NO.3

main58563-0R020iACA3#200903-201108

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-0R020-B0iACA3#200903-201108

GRAY,TRIM1#

sub58569-0R020

main58569-0R020-B1iACA3#201108-201307

DK.GRAY,TRIM1#

sub58569-0R020

main58569-0R020-E0iACA3#201108-201307

SAND BEIGE,TRIM4#

sub58569-0R020

6477926010TRAY, SPARE WHEEL COVER

main64779-26010

9046710161

main90467-10161

15 parts on this diagram · 1 diagram in section
