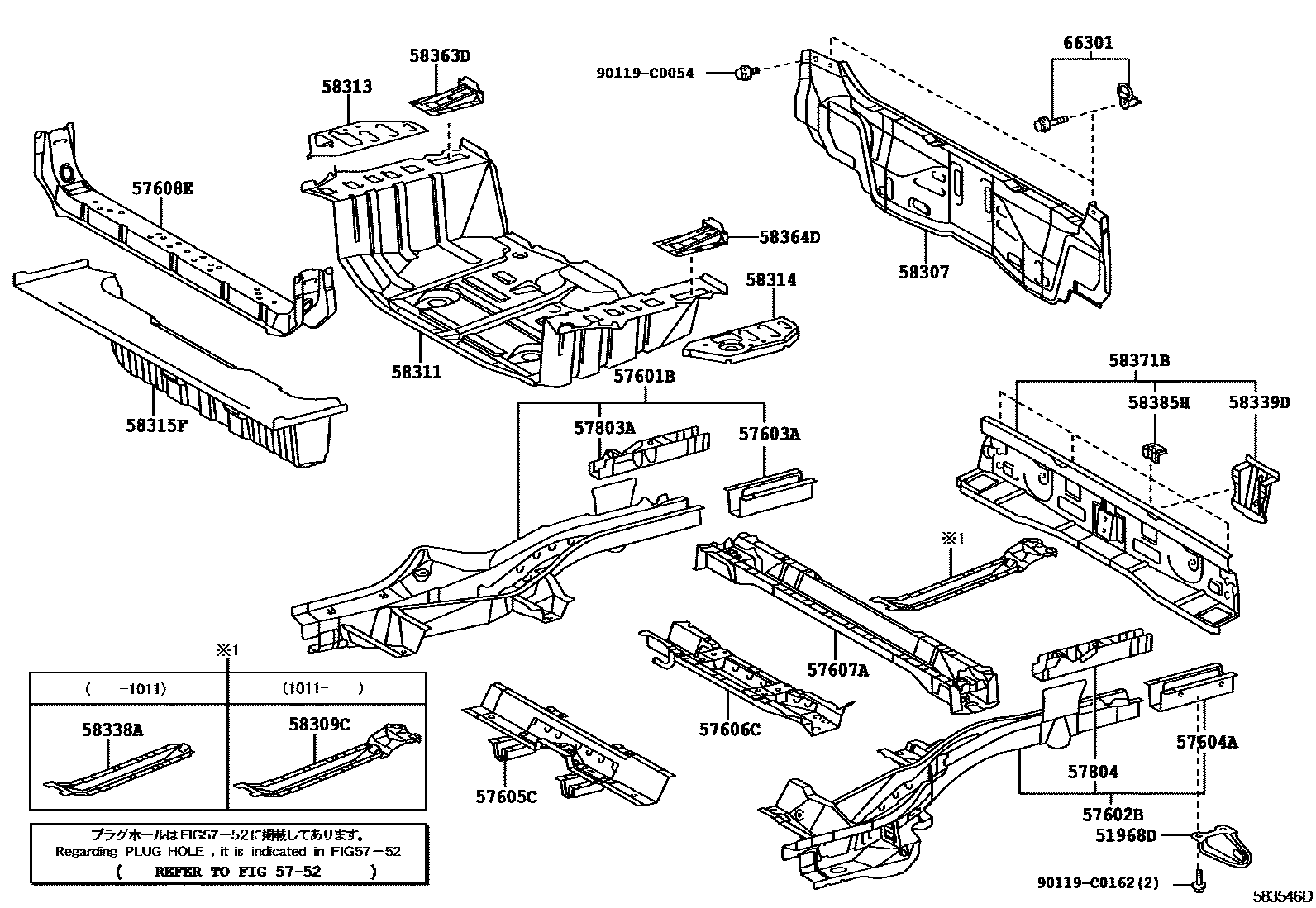

REAR FLOOR PANEL & REAR FLOOR MEMBER
51968DHOOK, TRANSPORT, REAR LH
5752
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57608EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH
57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
58309CGUARD SUB-ASSY, REAR VALANCE PANEL
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315FEXTENSION, REAR FLOOR SIDE PANEL, FRONT
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH
58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH
58385HBRACKET, REAR BUMPER COVER, NO.1
66301HOOK SUB-ASSY, ROPE
90119C0054
main90119-C0054
90119C0162
main90119-C0162
27 parts on this diagram · 1 diagram in section
