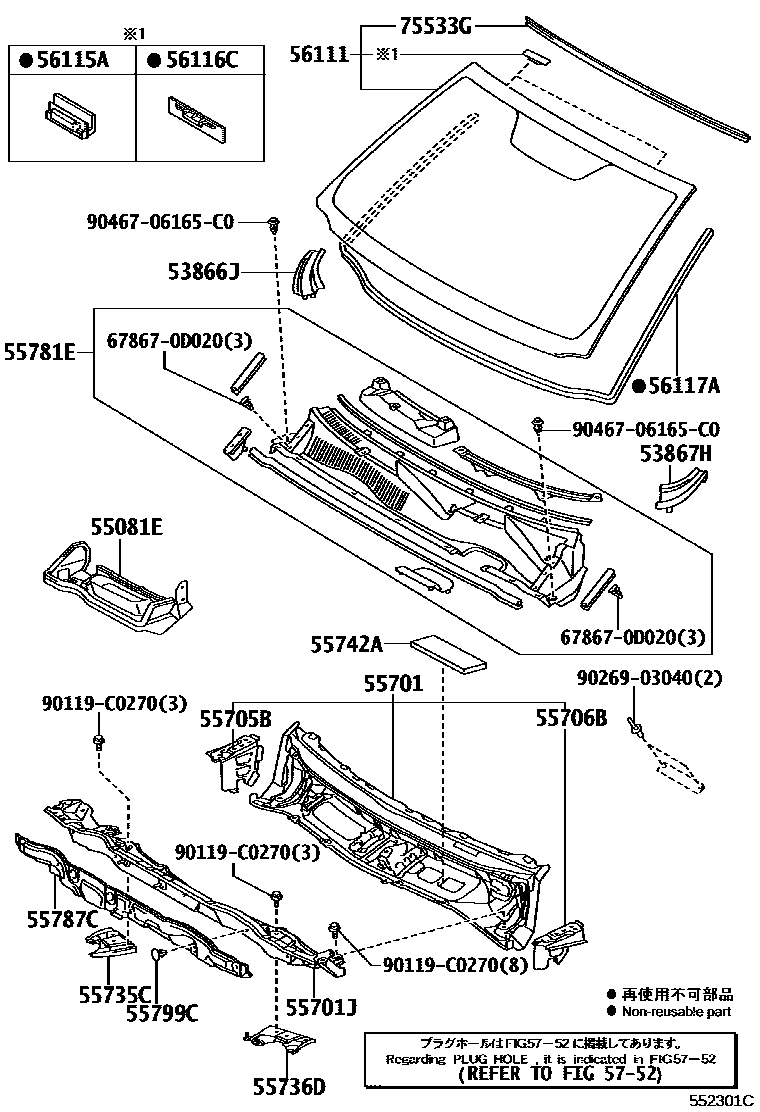

COWL PANEL & WINDSHIELD GLASS
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55081EHOUSING SUB-ASSY, COWL VENTILATOR
55701PANEL SUB-ASSY, COWL
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55742ASHEET, COWL TOP INSULATOR
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55787CINSULATOR, COWL TOP PANEL, NO.1
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN,MARK=ASAHI
*LAM,T=4.76,GREEN,MARK=FY
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=2834
5752
75533GMOULDING, WINDSHIELD, OUTSIDE
GLASS MARK=ASAHI
GLASS MARK=FY
678670D020CLIP, DOOR WEATHERSTRIP
main67867-0D020
90119C0270
main90119-C0270
9026903040
9046706165C0
main90467-06165C0
23 parts on this diagram · 1 diagram in section
