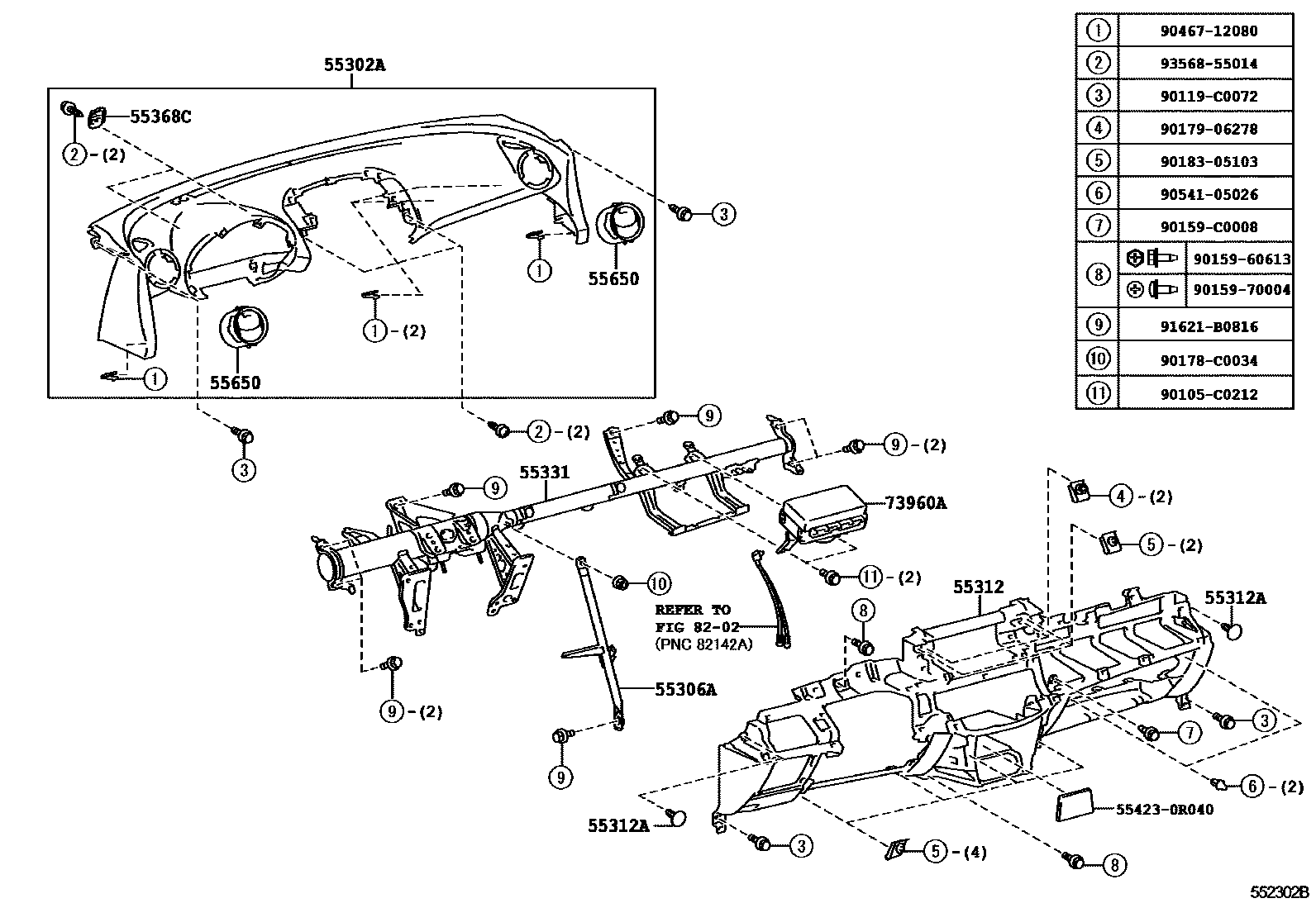

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0R020-B1iACA3#200903-201108

DK.GRAY,TRIM1#

sub55302-0R021

main55302-0R020-B1iACA3#201108-201202

DK.GRAY,TRIM1#,4#

sub55302-0R021

main55302-0R021-B1iACA3#201203-201307

DK.GRAY,TRIM1#,4#

sub55302-0R022

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0R020iACA3#200903-201108

55312PANEL, INSTRUMENT, LOWER

main55312-0R020-B0iACA3#200903-201108

GRAY,TRIM1#

sub55312-0R021

main55312-0R020-B1iACA3#201108-201307

DK.GRAY,TRIM1#

sub55312-0R021

main55312-0R020-E0iACA3#201108-201307

SAND BEIGE,TRIM4#

sub55312-0R021

55312ACLIP, INSTRUMENT PANEL

main90467-05161-B0iACA3#200903-201307

DK.GRAY

sub90467-05161

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0R020iACA3#200903-201108

55368CBRACKET, METER MOUNTING

main55368-42010iACA3#200903-201108

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-0R020-B1iACA3#200903-201108

GRAY,TRIM1#

main55650-0R020-B1iACA3#201108-201203

GRAY,TRIM1#,4#

main55650-0R021-B1iACA3#201203-201307

GRAY,TRIM1#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0R020iACA3#200903-201108

8202

554230R040PANEL, STEREO PLAYER FINISH

main55423-0R040

90105C0212

main90105-C0212

90119C0072

main90119-C0072

9015960613

main90159-60613

9015970004

main90159-70004

90159C0008

main90159-C0008

90178C0034

main90178-C0034

9017906278

main90179-06278

9018305103

main90183-05103

9046712080

main90467-12080

9054105026

main90541-05026

91621B0816

main91621-B0816

9356855014

main93568-55014

22 parts on this diagram · 4 diagrams in section
