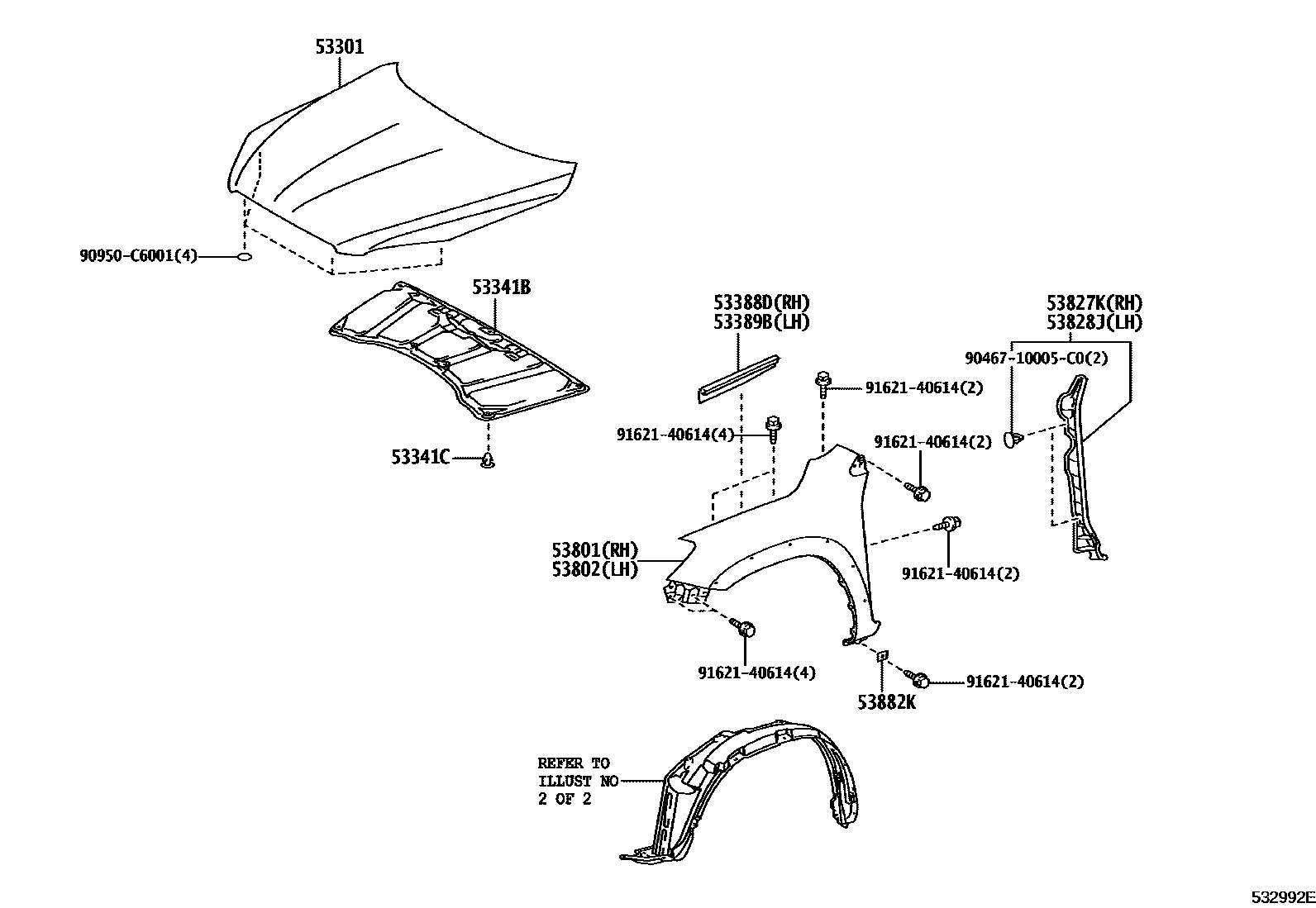

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-0R030iACA3#200903-201307

53341BINSULATOR, HOOD

main53341-0R020iACA3#200903-201108

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iACA3#200903-201110

main90467-C0006iACA3#201110

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0R020iACA3#200903-201108

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-0R020iACA3#200903-201108

53801FENDER SUB-ASSY, FRONT RH

main53811-0R070iACA37200903-201108

main53811-0R080iACA33200903-201108

main53811-0R090iACA32,33201108

DLX PACKAGE

53802FENDER SUB-ASSY, FRONT LH

main53812-0R050iACA37200903-201108

main53812-0R060iACA33200903-201108

main53812-0R070iACA32,33201108

DLX PACKAGE

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0R020iACA3#200903-201108

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0R020iACA3#200903-201108

53882KSEAL, FRONT FENDER

main53882-16030iACA3#200903-201108

9046710005C0

main90467-10005C0

90950C6001

main90950-C6001

9162140614

main91621-40614

13 parts on this diagram · 2 diagrams in section
