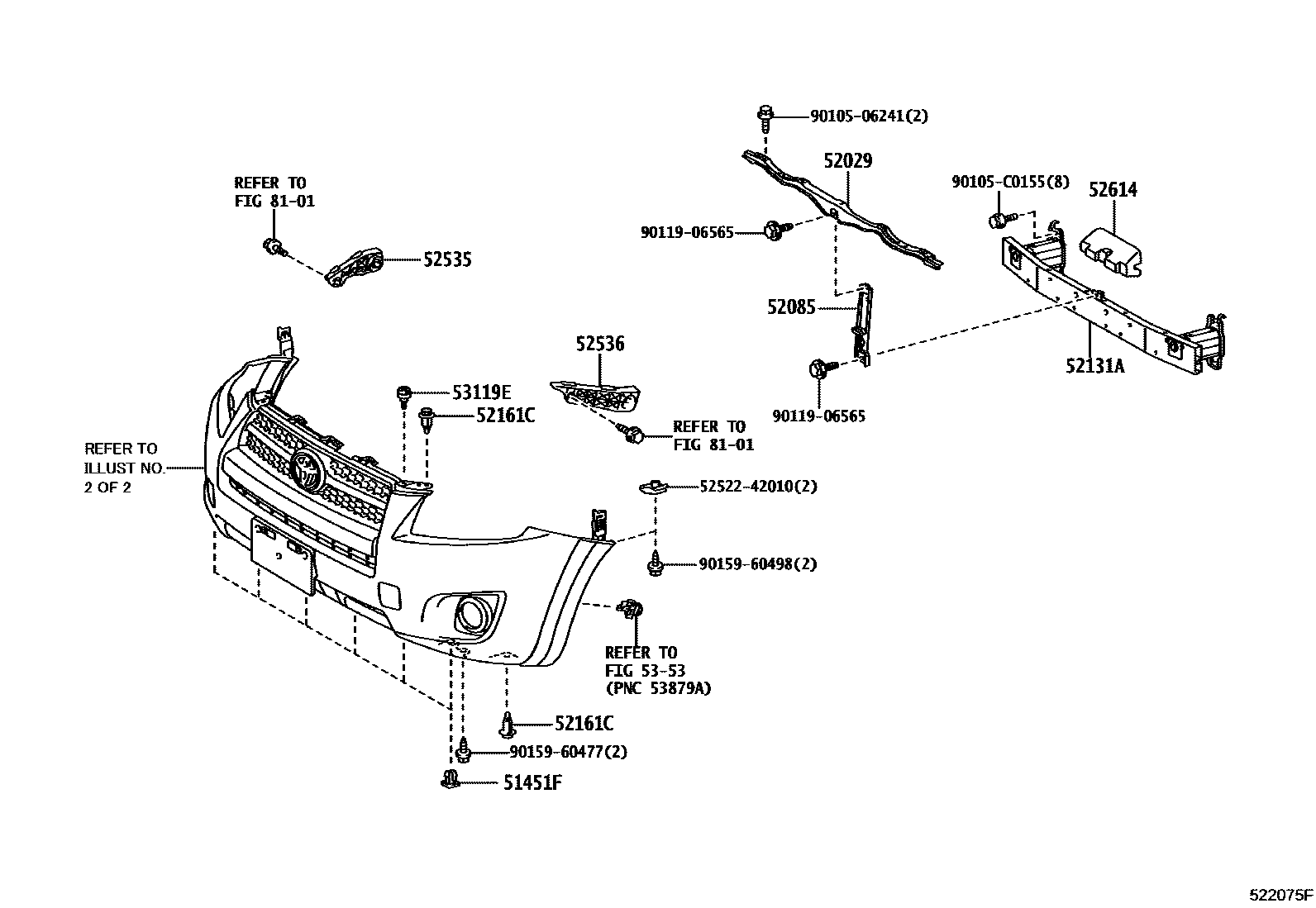

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1RADIATOR GRILLE = SMALL TYPE 0004 1RADIATOR GRILLE = SMALL TYPE 0005 1RADIATOR GRILLE = LARGE TYPE 0006 1RADIATOR GRILLE = LARGE TYPE

51451FGROMMET, NO.1

main90189-06193iACA3#200903-201108

main90189-06193iACA37201108-201110

DLX PACKAGE

main90189-C0006iACA32,33201110-201307

DLX PACKAGE

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-0R020iACA3#200903-201108

52085STAY SUB-ASSY, FRONT BUMPER, CENTER

main52085-0R010iACA3#200903-201108

52131AREINFORCEMENT, FRONT BUMPER

main52021-0R030iACA3#200903-201108

52161CPIECE, FRONT BUMPER

main52161-02040iACA3#200903-201108

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0R020iACA3#200903-201108

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0R020iACA3#200903-201108

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-0R020iACA3#200903-201108

53119EPROTECTOR, RADIATOR GRILLE

main53119-20120iACA3#200903-201108

5353

8101

5252242010RETAINER, FRONT BUMPER UPPER SIDE

main52522-42010

9010506241

main90105-06241

90105C0155

main90105-C0155

9011906565

main90119-06565

9015960477

main90159-60477

9015960498

main90159-60498

17 parts on this diagram · 6 diagrams in section
