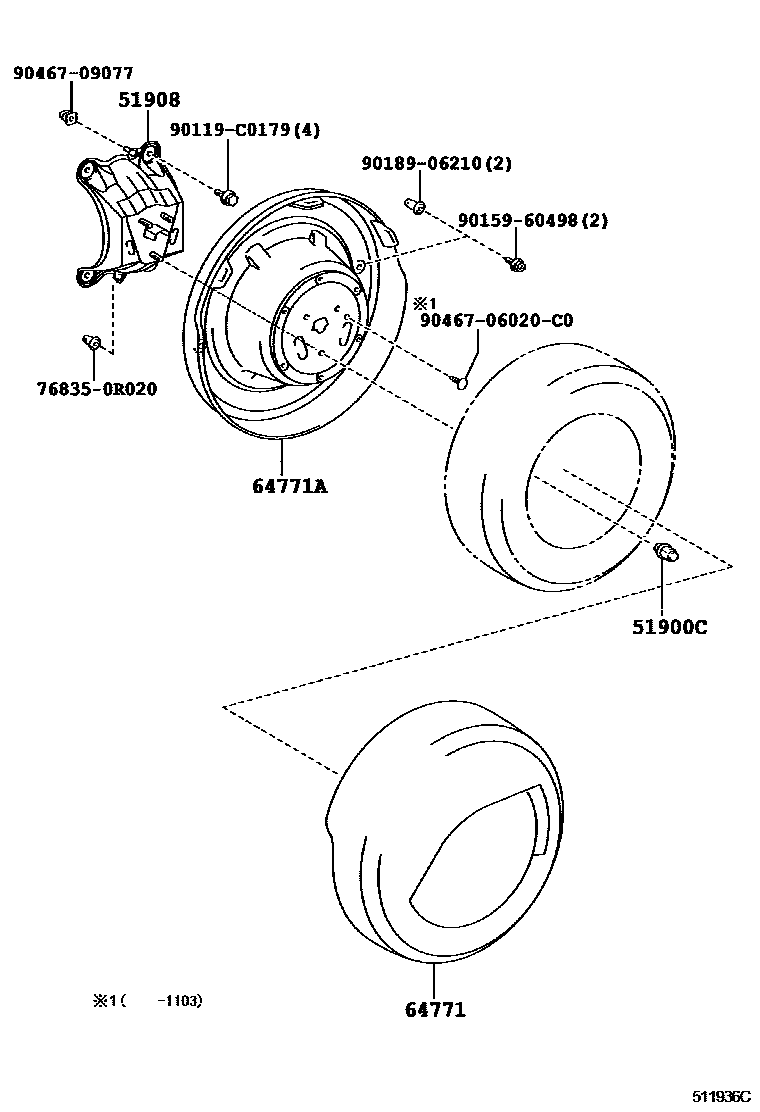

SPARE WHEEL CARRIER

51900CNUT, SPARE WHEEL, HUB

main90942-01033iACA3#200903-200906

main90942-C1001iACA3#200906-201108

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-0R021iACA3#200903-201108

64771COVER, SPARE WHEEL

main64771-0R030-A0iACA3#200903-201007

SUPER WHITE 2,040

sub64771-0R031

main64771-0R030-B0iACA3#200903-201007

SILVER ME.,1F7

sub64771-0R031

main64771-0R030-C0iACA3#200909-201007

BLACK MC.,209

sub64771-0R031

main64771-0R030-D0iACA3#200903-201007

RED M.M.,3R3

sub64771-0R031

main64771-0R030-E0iACA3#200903-201007

BEIGE ME.,4T8

sub64771-0R031

main64771-0R030-J0iACA3#200903-201007

DK.BLUE MC.,8S6

sub64771-0R031

main64771-0R031-A0iACA3#201008-201307

SUPER WHITE 2,040

sub64771-0R032

main64771-0R031-B0iACA3#201008-201307

SILVER ME.,1F7

sub64771-0R032

main64771-0R031-B1iACA3#201103-201307

GRAY ME.,1G3

sub64771-0R032

main64771-0R031-C0iACA3#201008-201307

BLACK MC.,209

sub64771-0R032

main64771-0R031-D0iACA3#201008-201307

RED M.M.,3R3

sub64771-0R032

main64771-0R031-E0iACA3#201008-201103

BEIGE ME.,4T8

sub64771-0R032

main64771-0R031-E1iACA3#201108-201307

DK. BROWN M.M.,4U3

sub64771-0R032

main64771-0R031-J0iACA3#201008-201108

DK.BLUE MC.,8S6

sub64771-0R032

64771ACOVER, SPARE WHEEL

main64773-0R021iACA3#200903-201007

sub64773-0R022

main64773-0R022iACA3#201008-201108

768350R020RETAINER, REAR SPOILER SIDE, NO.1

main76835-0R020

90119C0179

main90119-C0179

9015960498

main90159-60498

9018906210

main90189-06210

9046706020C0

main90467-06020C0

9046709077

main90467-09077

10 parts on this diagram · 1 diagram in section
