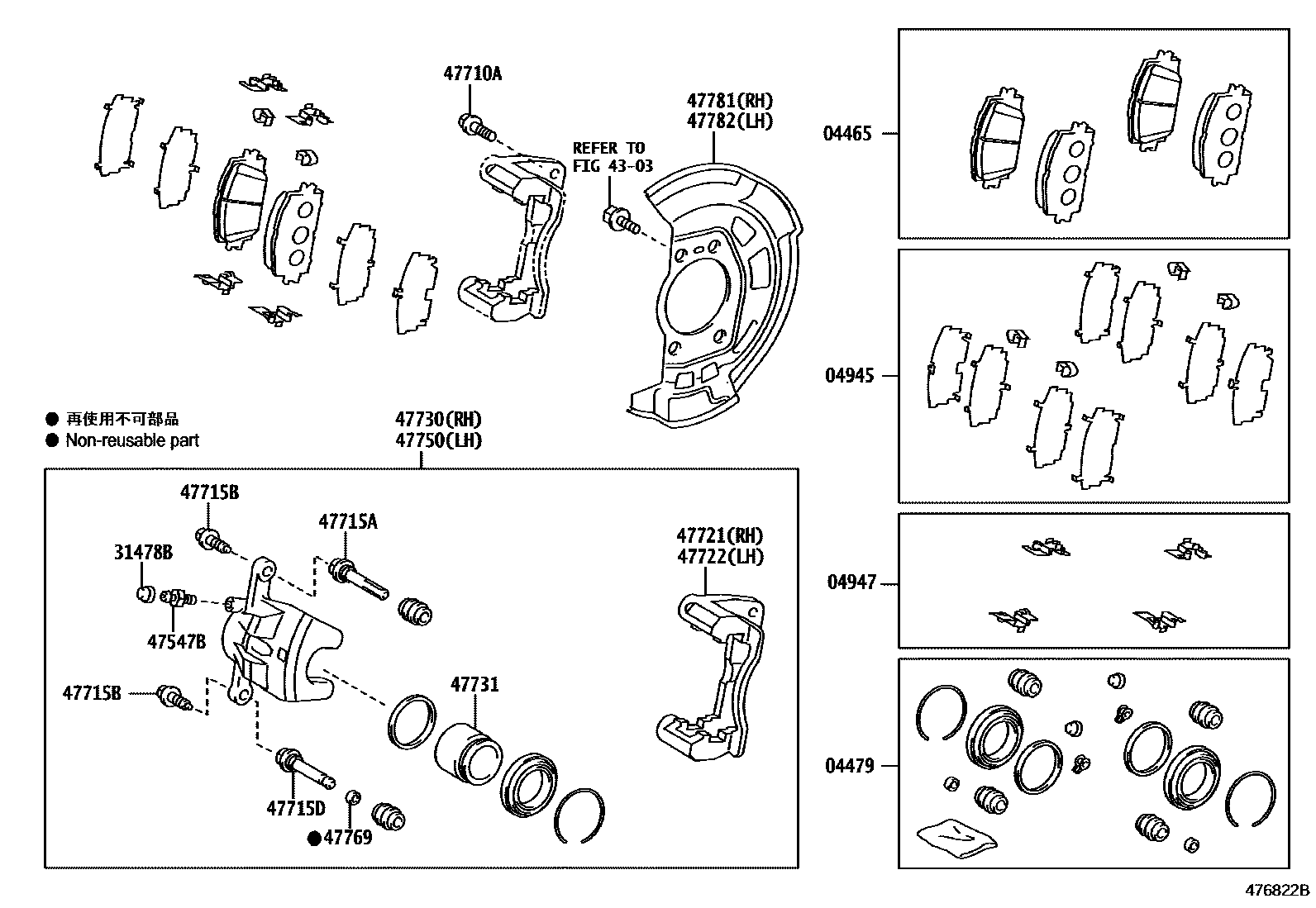

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42180iACA3#200903-201108

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0R010iACA3#200903-201108

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0R020iACA3#200903-201108

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02100iACA3#200903-201108

sub04947-0R020

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iACA3#200903-201108

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iACA3#200903-201108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-C0021iACA3#200903-201307

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-06270iACA3#200903-201108

sub47714-0R020

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iACA3#200903-201108

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-06270iACA3#200903-201108

sub47715-0D210

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0R030iACA3#200903-201108

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0R030iACA3#200903-201108

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0R030iACA3#200903-201108

47731PISTON, FRONT DISC BRAKE

main47731-0R030iACA3#200903-201108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0R030iACA3#200903-201108

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0P010iACA3#200903-201108

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0R030iACA3#200903-201307

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0R030iACA3#200903-201307

19 parts on this diagram · 1 diagram in section
