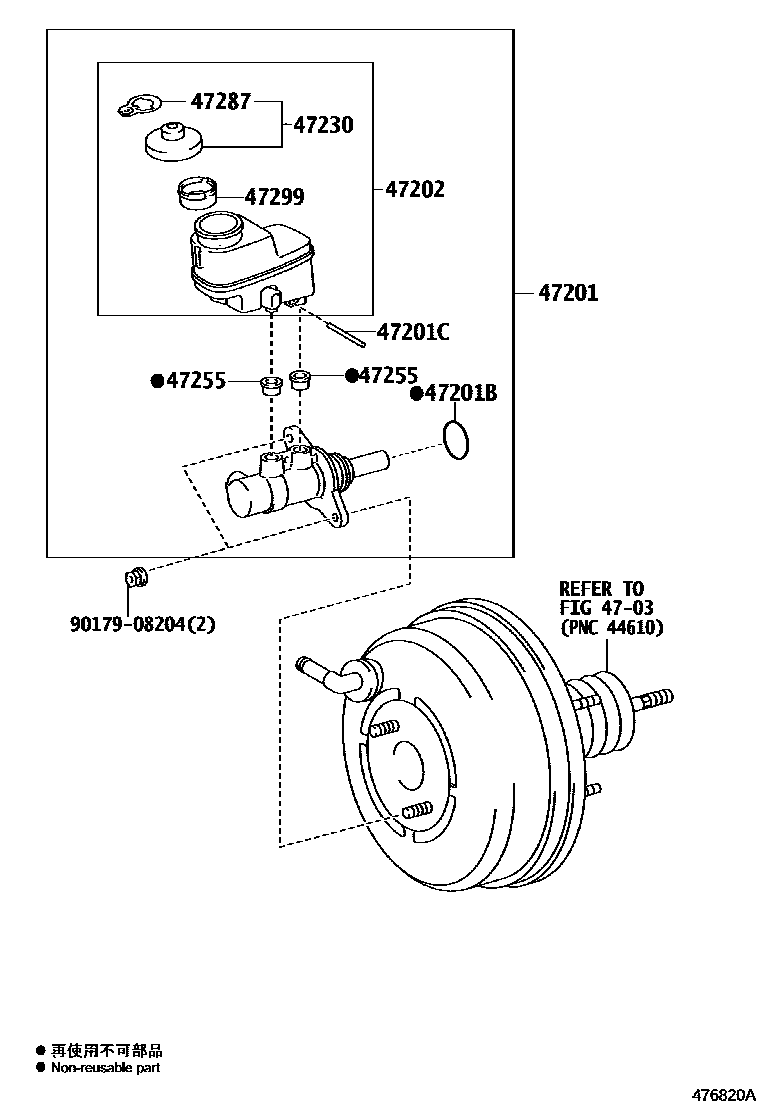

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0R030iACA32,37..4FC201108

VSC-WITHOUT

main47201-0R030iACA37..4FC200903-201108

main47201-0R040iACA37..5F200903-201108

main47201-0R040iACA32,37..5F201108

VSC-WITHOUT

main47201-0R050iACA33..4FC200903-201203

VSC-WITH

sub47201-0R051

main47201-0R051iACA33..4FC201204-201205

VSC-WITH

sub47201-0R052

main47201-0R052iACA32,37..4FC201206

VSC-WITH

main47201-0R060iACA33..5F200903-201203

VSC-WITH

sub47201-0R061

main47201-0R061iACA33..5F201204-201205

VSC-WITH

sub47201-0R062

main47201-0R062iACA32,37..5F201206

VSC-WITH

sub47201-0R100

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iACA3#200903-201108

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iACA3#200903-201108

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-0R030iACA3#..4FC200903-201108

sub47220-0R060

main47220-0R040iACA3#..5F200903-201108

sub47220-0R070

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02260iACA3#200903-201108

sub47230-0R030

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iACA3#200903-201108

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iACA3#200903-201108

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iACA3#200903-201108

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
