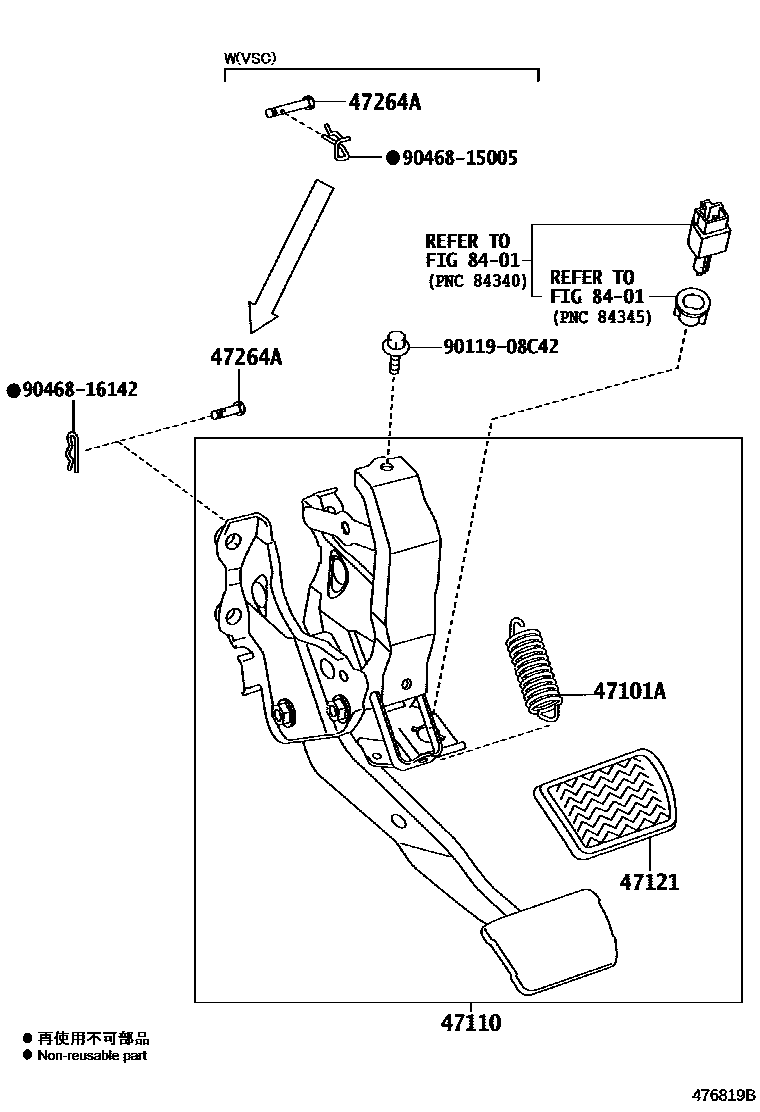

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-42020iACA3#200903-201108

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0R030iACA37..5F200903-201108

main47110-0R031iACA33..5F201108

VSC-WITHOUT

main47110-0R040iACA33..5F200903-201108

DLX PACKAGE

main47110-0R041iACA33..5F201108

VSC-WITH

main47110-0R041iACA33..5F201108

DLX PACKAGE

main47110-0R050iACA37..4FC200903-201108

main47110-0R051iACA33..4FC201108

VSC-WITHOUT

main47110-0R060iACA37..4FC200903-201108

DLX PACKAGE

main47110-0R061iACA37..4FC201108

DLX PACKAGE

main47110-0R061iACA33..4FC201108

VSC-WITH

47121PAD, BRAKE PEDAL

main31321-42010iACA3#..5F200903-201108

main47121-0R020iACA3#..4FC200903-200904

main47121-42010iACA3#..4FC200905-201108

47264APIN(FOR PUSH ROD)

main90249-06180iACA33200903-201108

DLX PACKAGE

main90249-06180iACA37201108

VSC-WITH

main90249-08256iACA37200903-201108

main90249-08256iACA33201108

VSC-WITHOUT

8401

9011908C42

main90119-08C42

9046815005

main90468-15005

9046816142

main90468-16142

8 parts on this diagram · 1 diagram in section
