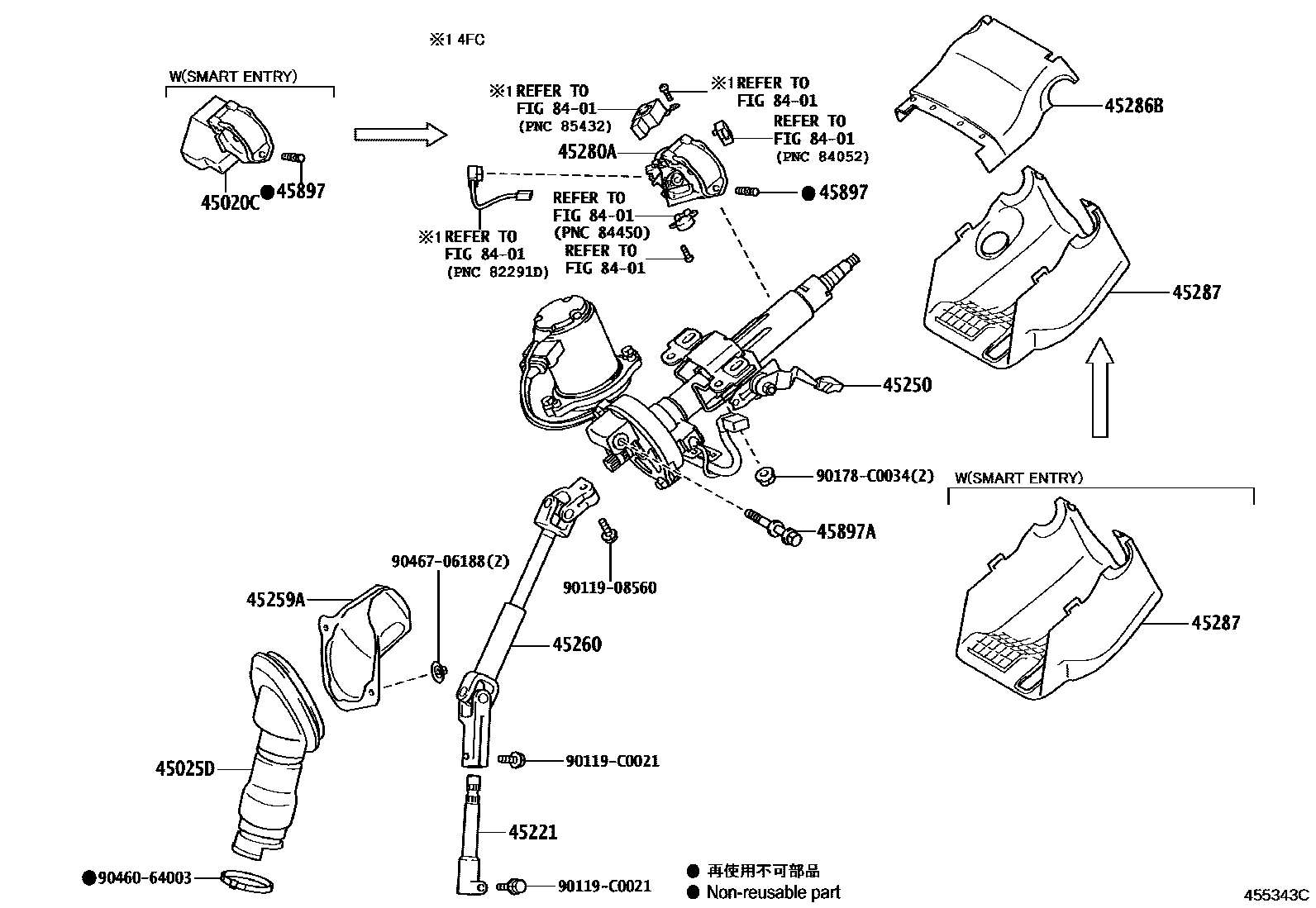

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45280ABRACKET ASSY, STEERING COLUMN, UPPER
WIRELESS DOOR LOCK-WITH(2 BUTTON)
WIRELESS DOOR LOCK-WITH(2 BUTTON)
45286BCOVER, STEERING COLUMN, UPR
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
WIRELESS DOOR LOCK-WITH(2 BUTTON),DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
45287COVER, STEERING COLUMN, LWR
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
WIRELESS DOOR LOCK-WITH(2 BUTTON),DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
8401
9011908560
main90119-08560
90119C0021
main90119-C0021
90178C0034
main90178-C0034
9046064003
main90460-64003
9046706188
main90467-06188
17 parts on this diagram · 2 diagrams in section
