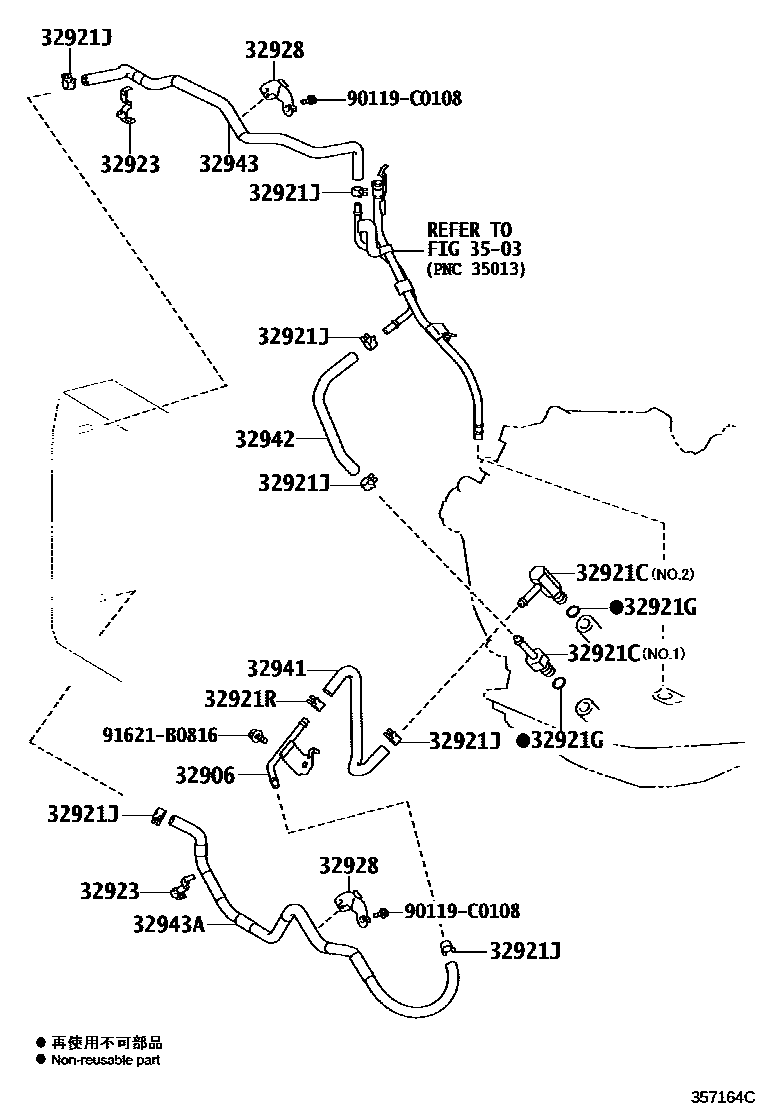

OIL COOLER & TUBE (ATM)

32906TUBE SUB-ASSY, OIL COOLER

main32907-0R010iACA3#..4FC200903-201108

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iACA3#..4FC200903-201108

NO.1

sub90404-13010

main90407-13009iACA3#..4FC200903-201108

NO.2

sub90407-13010

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iACA3#..4FC200903-201307

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004iACA3#..4FC200903-201301

main90466-16004iACA3#..4FC201301

(J)

main90466-C0024iACA3#..4FC201301

(L)

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90467-16022iACA3#..4FC200903-201108

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main82711-51020iACA3#..4FC200903-201108

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-42010iACA3#..4FC200903-201108

32941HOSE, OIL COOLER INLET, NO.1

main32941-42020iACA3#..4FC200903-201108

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0R040iACA3#..4FC201209

main32942-42010iACA3#..4FC200903-201209

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-0R020iACA3#..4FC201209

main32943-42010iACA3#..4FC200903-201209

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-0R030iACA3#..4FC201209

main32943-42020iACA3#..4FC200903-201209

3503

90119C0108

main90119-C0108

91621B0816

main91621-B0816

14 parts on this diagram · 1 diagram in section
