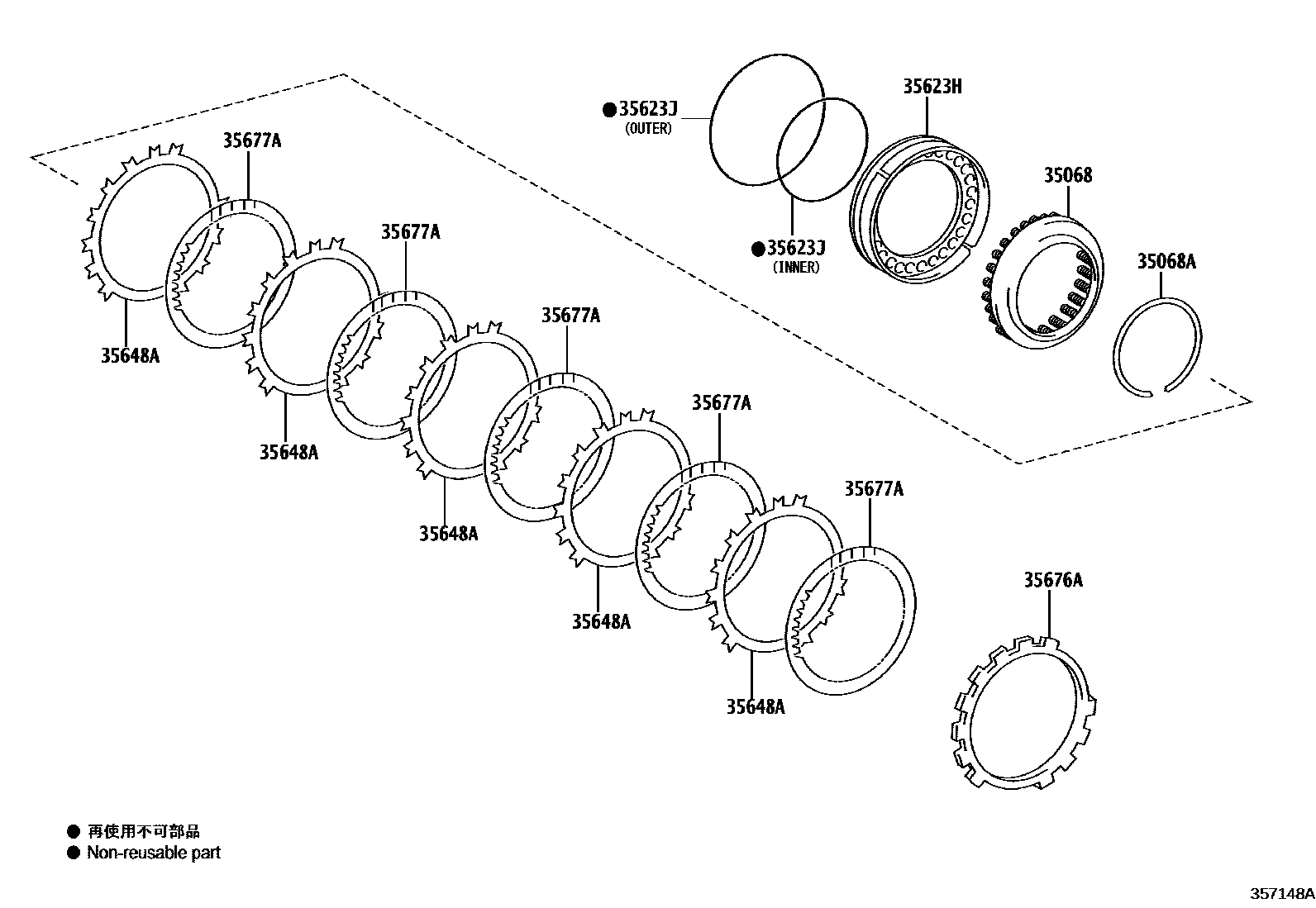

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21011iACA3#..4FC¥2,490200903-201108

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iACA3#..4FC¥260200903-201108

35623HPISTON, 1ST & REVERSE BRAKE

main35623-28020iACA3#..4FC¥3,140200903-201108

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99096iACA3#..4FC¥200200903-201307

INNER

main90301-99098iACA3#..4FC¥320200903-201307

OUTER

sub90301-99134¥270

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-21011iACA3#..4FC¥890200903-201108

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iACA3#..4FC¥2,500200903-201108

T=1.8,MARK 1

main35678-21020iACA3#..4FC¥2,500200903-201108

T=1.9,MARK 2

main35678-21030iACA3#..4FC¥2,570200903-201108

T=2.0,MARK 3

main35678-21040iACA3#..4FC¥2,570200903-201108

T=2.1,MARK 4

main35678-21050iACA3#..4FC¥2,670200903-201108

T=2.2,MARK 5

main35678-21060iACA3#..4FC¥2,670200903-201108

T=2.3,MARK 6

main35678-21070iACA3#..4FC¥2,740200903-201108

T=2.4,MARK 7

main35678-21080iACA3#..4FC¥2,820200903-201108

T=2.5,MARK 8

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-28010iACA3#..4FC¥750200903-201108

7 parts on this diagram · 1 diagram in section
