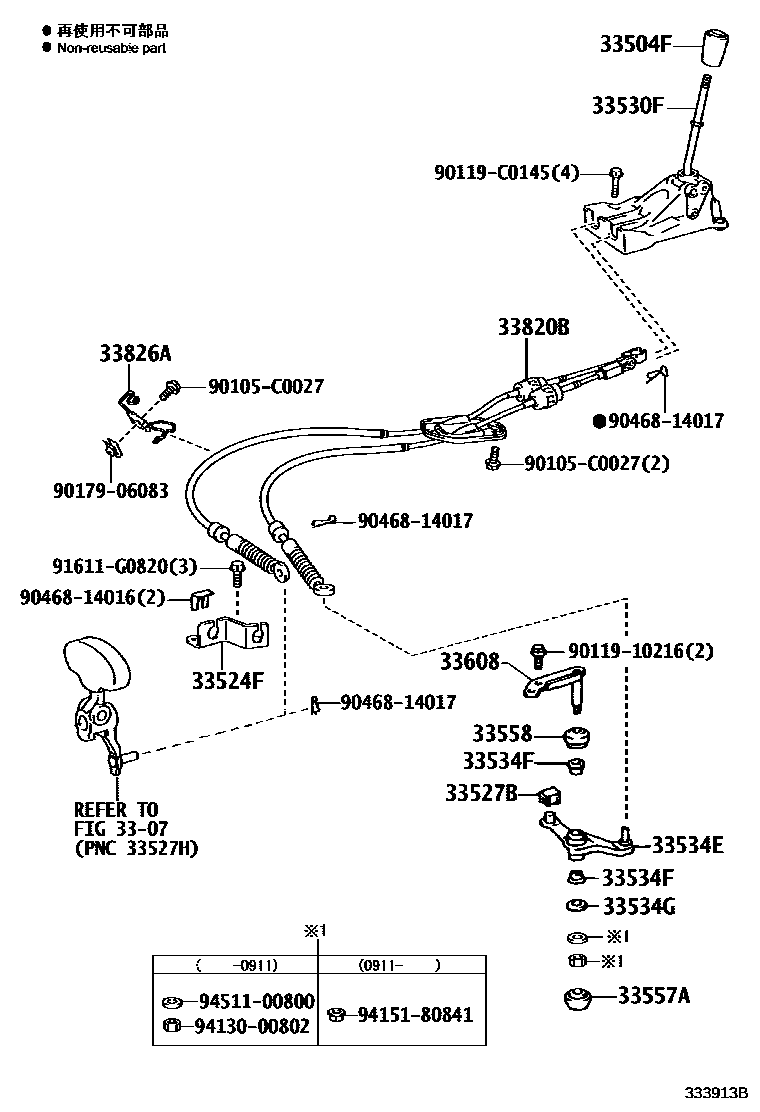

SHIFT LEVER & RETAINER
3307
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
DLX PACKAGE,DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
DLX PACKAGE,DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
33527BBUSH (FOR CONTROL SHIFT LEVER)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
(L)
(J)
33534ECRANK, SELECTING BELL, NO.2
33534FBUSH (FOR SELECTING BELLCRANK NO.2)
33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
33557ACOVER, SELECTING BELLCRANK DUST, NO.1
33558COVER, SELECTING BELLCRANK DUST, NO.2
33608SUPPORT SUB-ASSY, SELECTING BELLCRANK
33820BCABLE ASSY, TRANSMISSION CONTROL
33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2
90105C0027
main90105-C0027
9011910216
main90119-10216
90119C0145
main90119-C0145
9017906083
main90179-06083
9046814016
main90468-14016
9046814017
main90468-14017
91611G0820
main91611-G0820
9413000802
main94130-00802
9415180841
main94151-80841
9451100800
main94511-00800
23 parts on this diagram · 3 diagrams in section
