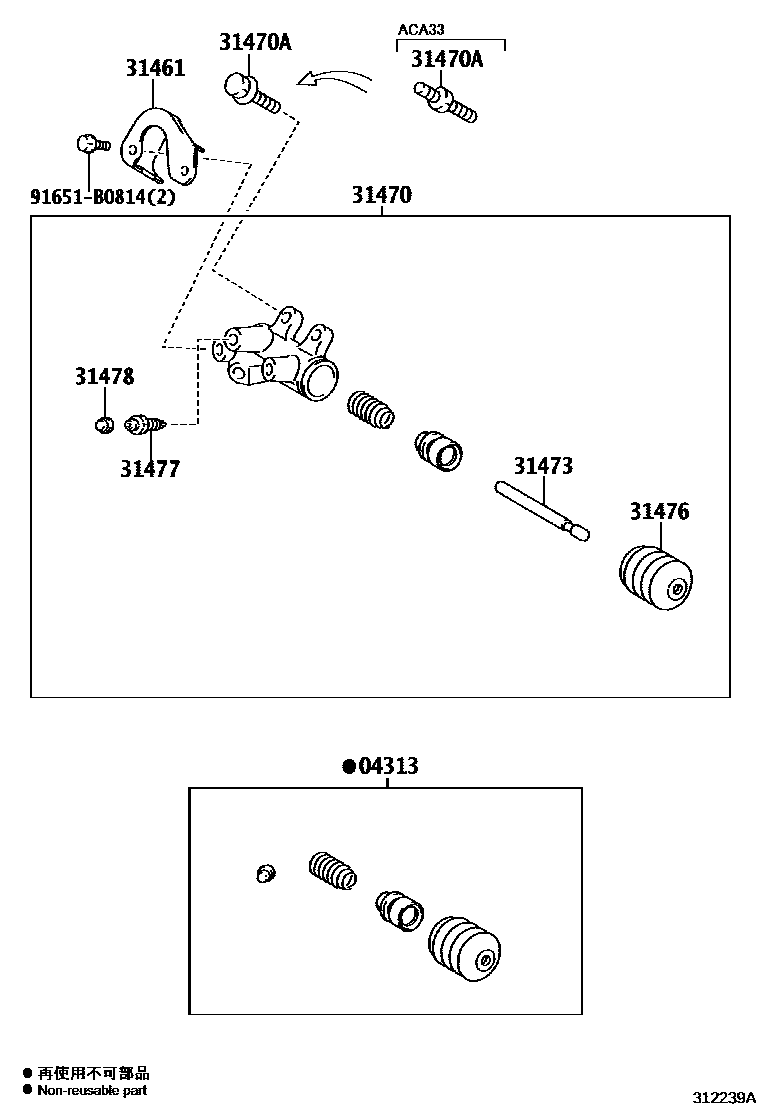

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-52020iACA37..5F200903-201108

main04313-53010iACA33..5F200903-201108

31461INSULATOR, RELEASE CYLINDER HEAT

main31461-0R010iACA3#..5F201212

(L)

main31461-42011iACA3#..5F200903-201212

main31461-42011iACA3#..5F201212

(J)

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-42031iACA37..5F200903-201108

main31470-42040iACA33..5F200903-201108

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iACA33..5F200903-201108

*8-1.25PX25-20.1

main91611-60822iACA32,37..5F200903-201108

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iACA3#..5F200903-201108

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iACA3#..5F200903-201108

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iACA3#..5F200903-201108

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iACA3#..5F200903-201108

91651B0814

main91651-B0814

9 parts on this diagram · 1 diagram in section
