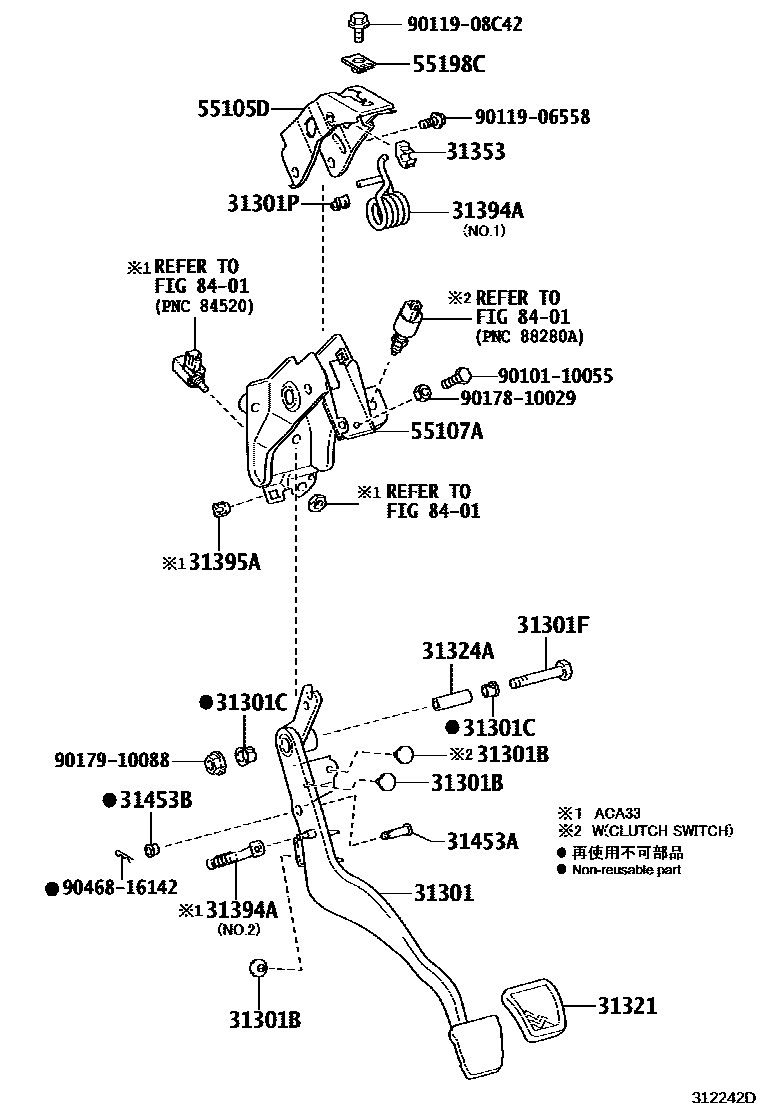

CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
CRUISE CONTROL-WITH(ELECTRIC TYPE)
VSC-WITH
CRUISE CONTROL-WITH(ELECTRIC,W/VSC)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31301PBUSH(FOR CLUTCH PEDAL TURNOVER)
31321PAD, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31353HOLDER, CLUTCH PEDAL SPRING
31394ASPRING, PEDAL W/HOOK
NO.1
NO.1
NO.2
31395AHOOK, PEDAL SPRING, NO.1
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=36.5
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
55105DBRACKET SUB-ASSY, CLUTCH PEDAL
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
55198CHOLDER, BRAKE AWAY MOUNTING BOLT
8401
9010110055
main90101-10055
9011906558
main90119-06558
9011908C42
main90119-08C42
9017810029
main90178-10029
9017910088
main90179-10088
9046816142
main90468-16142
22 parts on this diagram · 3 diagrams in section
