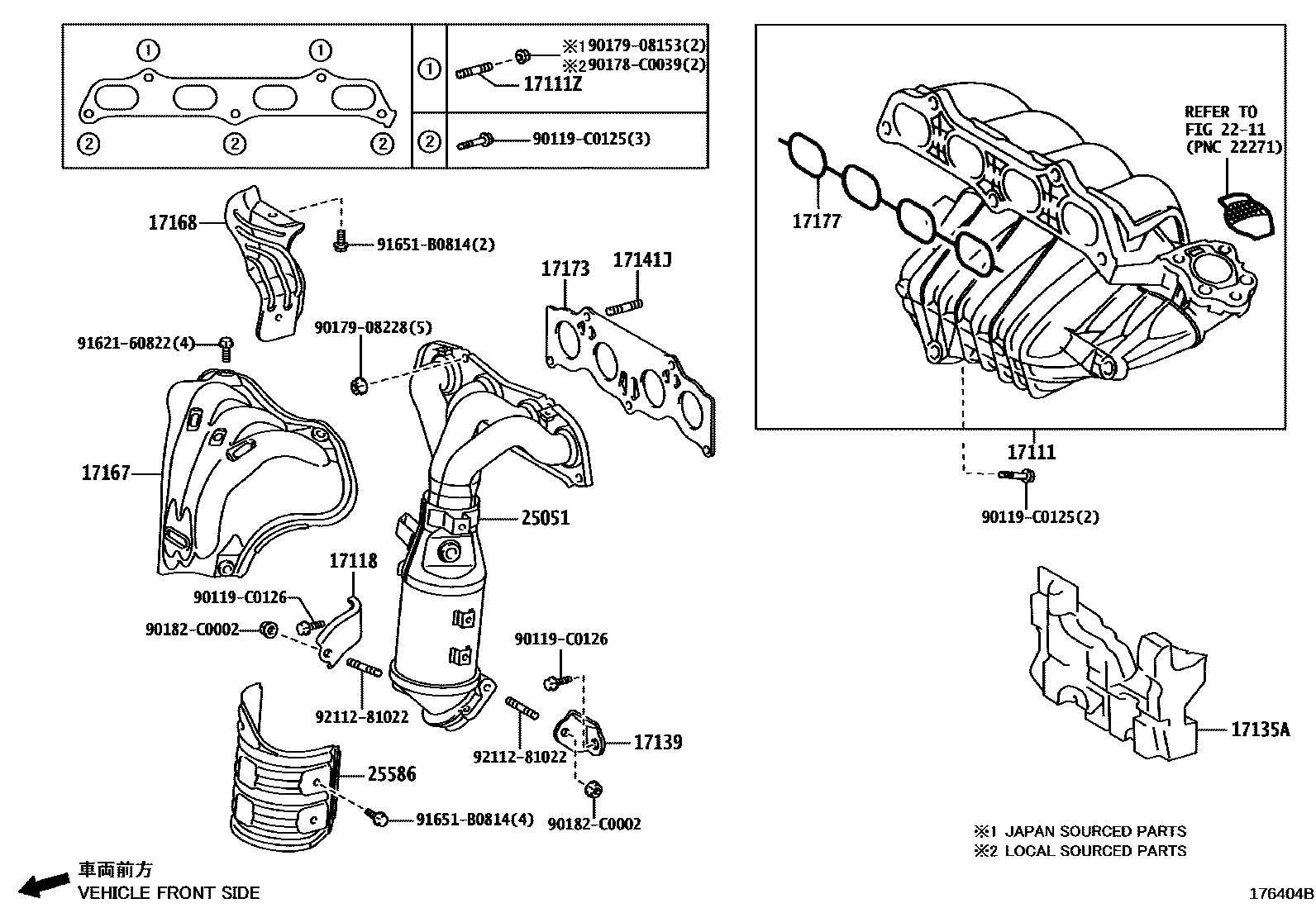

MANIFOLD
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17139STAY, MANIFOLD, NO.2
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L)
(J)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25586INSULATOR, MANIFOLD CONVERTER, NO.1
90119C0125
main90119-C0125
90119C0126
main90119-C0126
90178C0039
main90178-C0039
9017908153
main90179-08153
9017908228
main90179-08228
90182C0002
main90182-C0002
9162160822
main91621-60822
91651B0814
main91651-B0814
9211281022
main92112-81022
22 parts on this diagram · 2 diagrams in section
