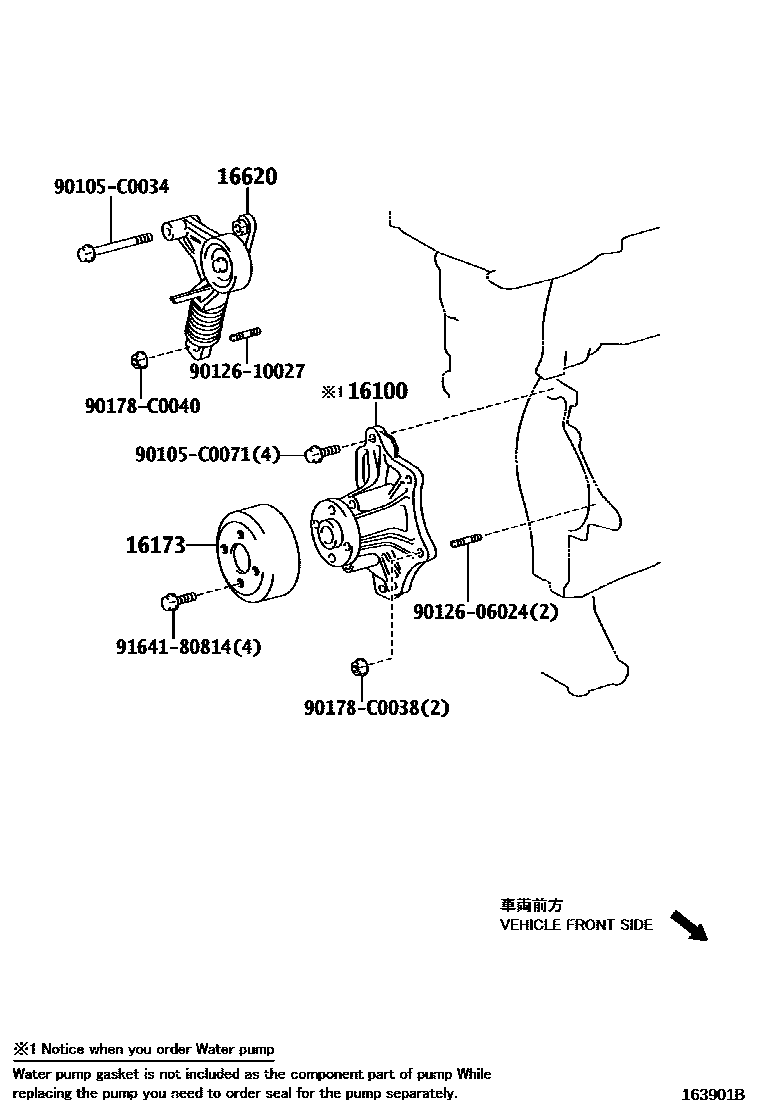

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-0H040i1AZFE,2AZFE..ACA3#200903-201108

sub16100-0H050

16173PULLEY, WATER PUMP

main16173-0H040i1AZFE,2AZFE..ACA3#200903-201108

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i1AZFE,2AZFE..ACA3#200903-201301

sub16620-0H021

main16620-0H021i1AZFE,2AZFE..ACA3#201301

90105C0034

main90105-C0034

90105C0071

main90105-C0071

9012606024

main90126-06024

9012610027

main90126-10027

90178C0038

main90178-C0038

90178C0040

main90178-C0040

9164180814

main91641-80814

10 parts on this diagram · 1 diagram in section
