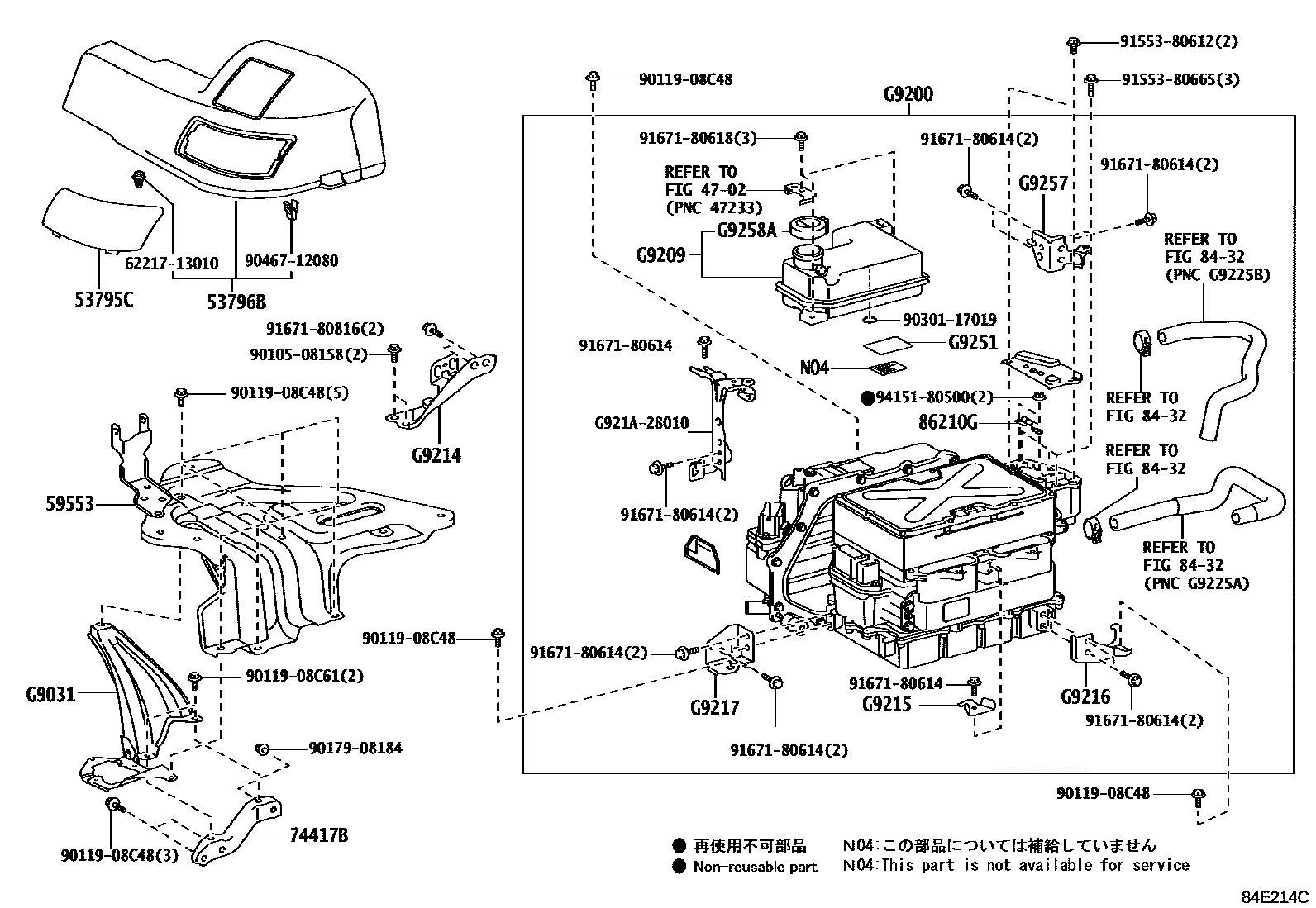

HEV INVERTER

4702

53795CCOVER, ENGINE ROOM, SIDE

main53795-28030iAHR20201304

53796BCOVER, ENGINE ROOM SIDE, LH NO.2

main53796-28040iAHR20201304

59553REINFORCEMENT, INVERTER BOX, NO.1

main59553-28011iAHR20201304

74417BBRACKET, BATTERY CARRIER

main74417-42030iAHR20201304

8432

86210GFUSE, HIGH VOLTAGE

main90982-11050iAHR20201304-201605

G9031BRACKET SUB-ASSY, HV WATER PUMP

mainG903128010iAHR20201304

G9200INVERTER ASSY, W/CONVERTER

mainG92A028012iAHR20201304

G9209TANK SUB-ASSY, INVERTER RESERVE

mainG920928011iAHR20201304-201605

G9214BRACKET, INVERTER, NO.1

mainG921428040iAHR20201304

G9215BRACKET, INVERTER, NO.2

mainG921528020iAHR20201304-201605

G9216BRACKET, INVERTER, NO.3

mainG921628020iAHR20201304-201605

G9217BRACKET, INVERTER, NO.4

mainG921728020iAHR20201304-201605

G9251SEAT, INVERTER NAME

mainG925147010iAHR20201304

G9257BRACKET, INVERTER, NO.5

mainG925728010iAHR20201304-201605

G9258ACAP, INVERTER RESERVE TANK

mainG925828011iAHR20201304-201409

mainG925828012iAHR20201410

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

9010508158

main90105-08158

9011908C48

main90119-08C48

9011908C61

main90119-08C61

9017908184

main90179-08184

9030117019

main90301-17019

9046712080

main90467-12080

9155380612

main91553-80612

9155380665

main91553-80665

9167180614

main91671-80614

9167180618

main91671-80618

9167180816

main91671-80816

9415180500

main94151-80500

G921A28010BRACKET, INVERTER RESERVE TANK, NO.1

mainG921A-28010

31 parts on this diagram · 1 diagram in section
