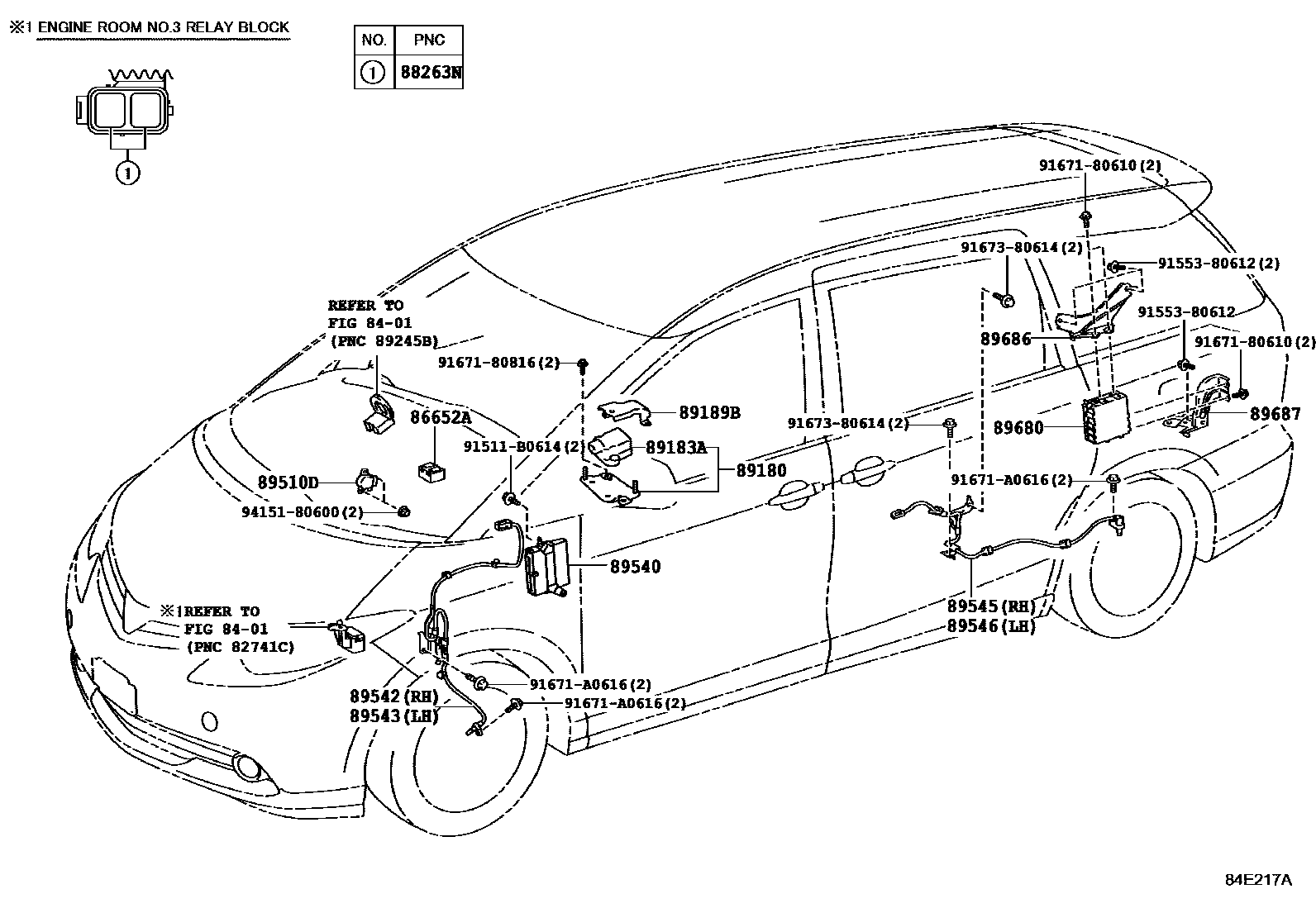

ABS & VSC
8401
86652ABUZZER ASSY, SKID CONTROL
88263NRELAY, ABS MOTOR
89180SENSOR ASSY, YAWRATE
89183ASENSOR, YAWRATE
89189BBRACKET, YAWRATE SENSOR
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89680SUPPLY ASSY, BRAKE CONTROL POWER
89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2
91511B0614
main91511-B0614
9155380612
main91553-80612
9167180610
main91671-80610
9167180816
main91671-80816
91671A0616
main91671-A0616
9167380614
main91673-80614
9415180600
main94151-80600
22 parts on this diagram · 1 diagram in section
