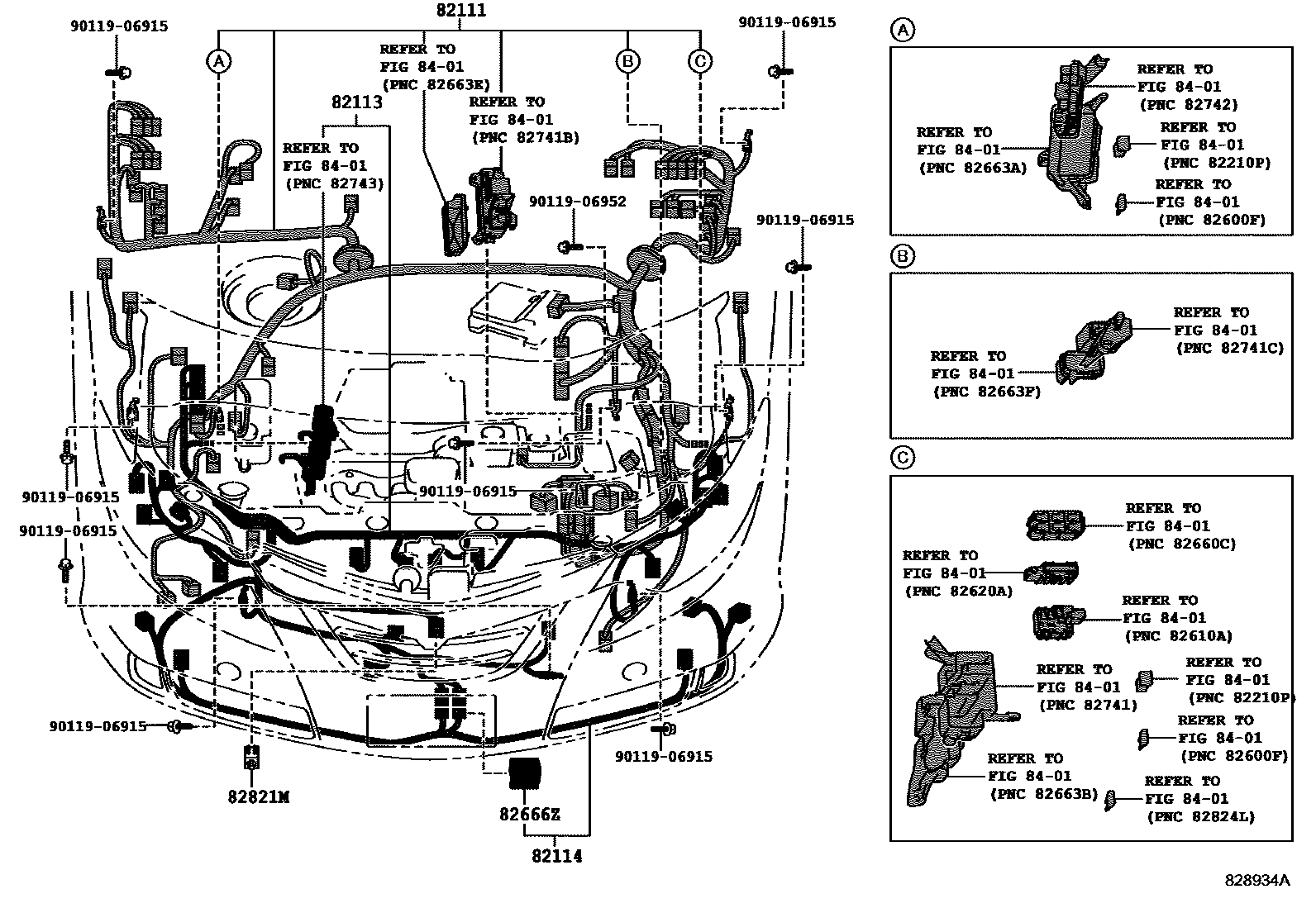

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR,FRAME & ROOF 0006 1HIGH-TENSION CABLE 0007 1SEAT 0008 1CLAMP & BRACKET 0009 1CABLE BOND 0010 1CONNECTOR 1/2 0011 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-28K64iAHR20¥238,000201304-201401

main82111-28K65iAHR20¥238,000201401-201409

main82111-28K66iAHR20¥238,000201409

82113WIRE, ENGINE ROOM, NO.3

main82113-28421iAHR20¥42,500201304

82114WIRE, ENGINE ROOM, NO.4

main82114-28162iAHR20¥10,500201304

82666ZHOLDER, CONNECTOR NO.19

main82666-28540iAHR20¥1,360201304

82821MCOVER, CONNECTOR

main82821-28250iAHR20¥240201304

8401

9011906915

main90119-06915¥60

9011906952

main90119-06952¥60

8 parts on this diagram · 11 diagrams in section
