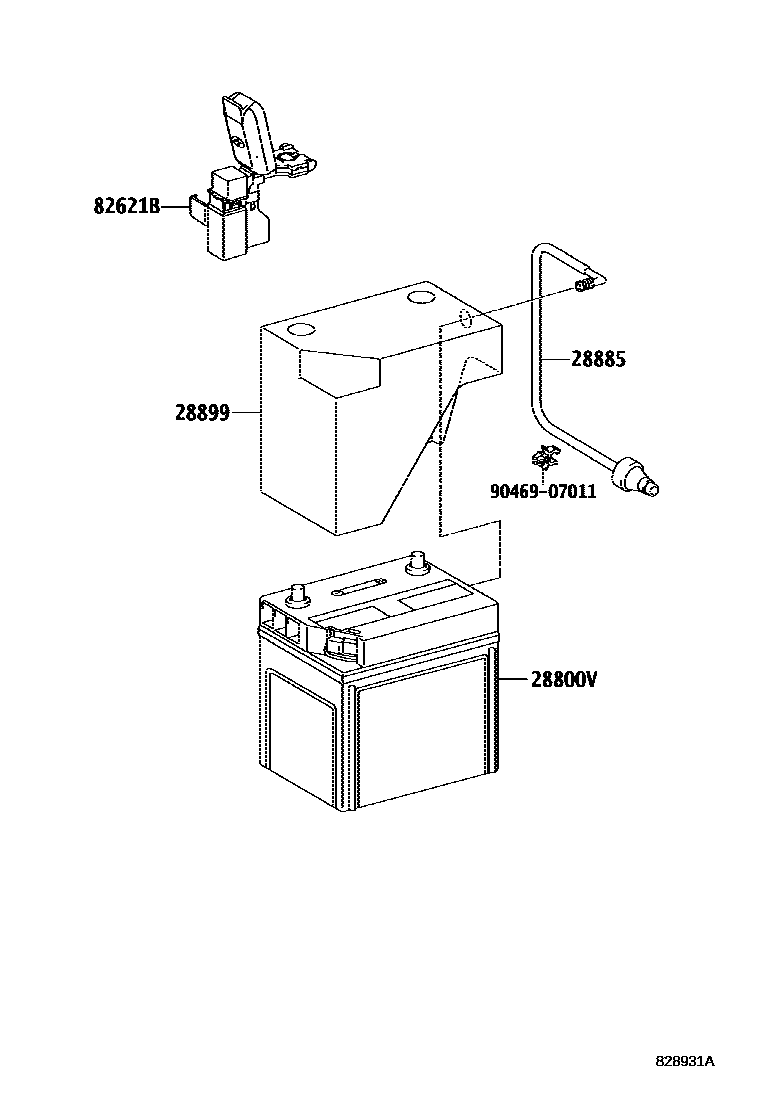

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY

28800VBATTERY, W/TEMPERATURE SENSOR

main28800-28070i2AZFXE..AHR20201304-201605

S55D23L

sub28800-28071

28885HOSE, BATTERY ROOM VENTILATION

main28885-28100i2AZFXE..AHR20201304

28899INSULATOR, BATTERY

main28877-28011i2AZFXE..AHR20201304

82621BCOVER, FUSIBLE LINK

main82620-58040iAHR20201304

9046907011

main90469-07011

5 parts on this diagram · 3 diagrams in section
