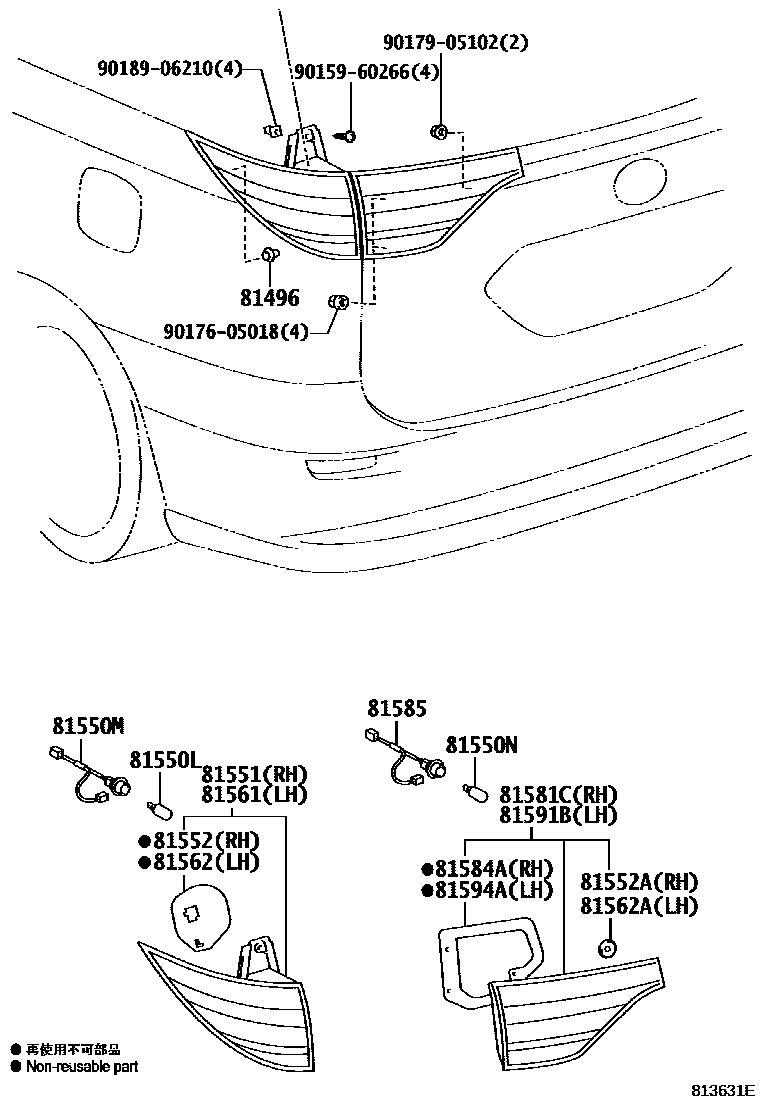

REAR COMBINATION LAMP

81496GUIDE, REAR COMBINATION LAMP

main81496-28010iAHR20201304-201605

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iAHR20201304-201605

81550MSOCKET, REAR TURN SIGNAL LAMP

main81555-28500iAHR20201304-201605

81550NBULB, BACK UP LAMP

main90981-11059iAHR20201304-201605

81551LENS, REAR COMBINATION LAMP, RH

main81551-28502iAHR20201304-201306

sub81551-28503

main81551-28503iAHR20201306-201605

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-28502iAHR20201304-201605

sub81552-28503

81552AGASKET, REAR COMBINATION LAMP, RH

main81584-22040iAHR20201304-201605

81561LENS, REAR COMBINATION LAMP, LH

main81561-28502iAHR20201304-201306

sub81561-28503

main81561-28503iAHR20201306-201605

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-28502iAHR20201304-201605

sub81562-28503

81562AGASKET, REAR COMBINATION LAMP, LH

main81584-22040iAHR20201304-201605

81581CLENS AND BODY, REAR LAMP, RH

main81581-28262iAHR20201304-201605

81584AGASKET, REAR LAMP RH

main81584-28261iAHR20201304-201605

sub81584-28262

81585SOCKET & WIRE, REAR LAMP

main81585-28260iAHR20201304-201605

RH

main81595-28260iAHR20201304-201605

LH

81591BLENS AND BODY, REAR LAMP, LH

main81591-28262iAHR20201304-201605

81594AGASKET, REAR LAMP LH

main81594-28261iAHR20201304-201605

sub81594-28262

9015960266

main90159-60266

9017605018

main90176-05018

9017905102

main90179-05102

9018906210

main90189-06210

19 parts on this diagram · 1 diagram in section
