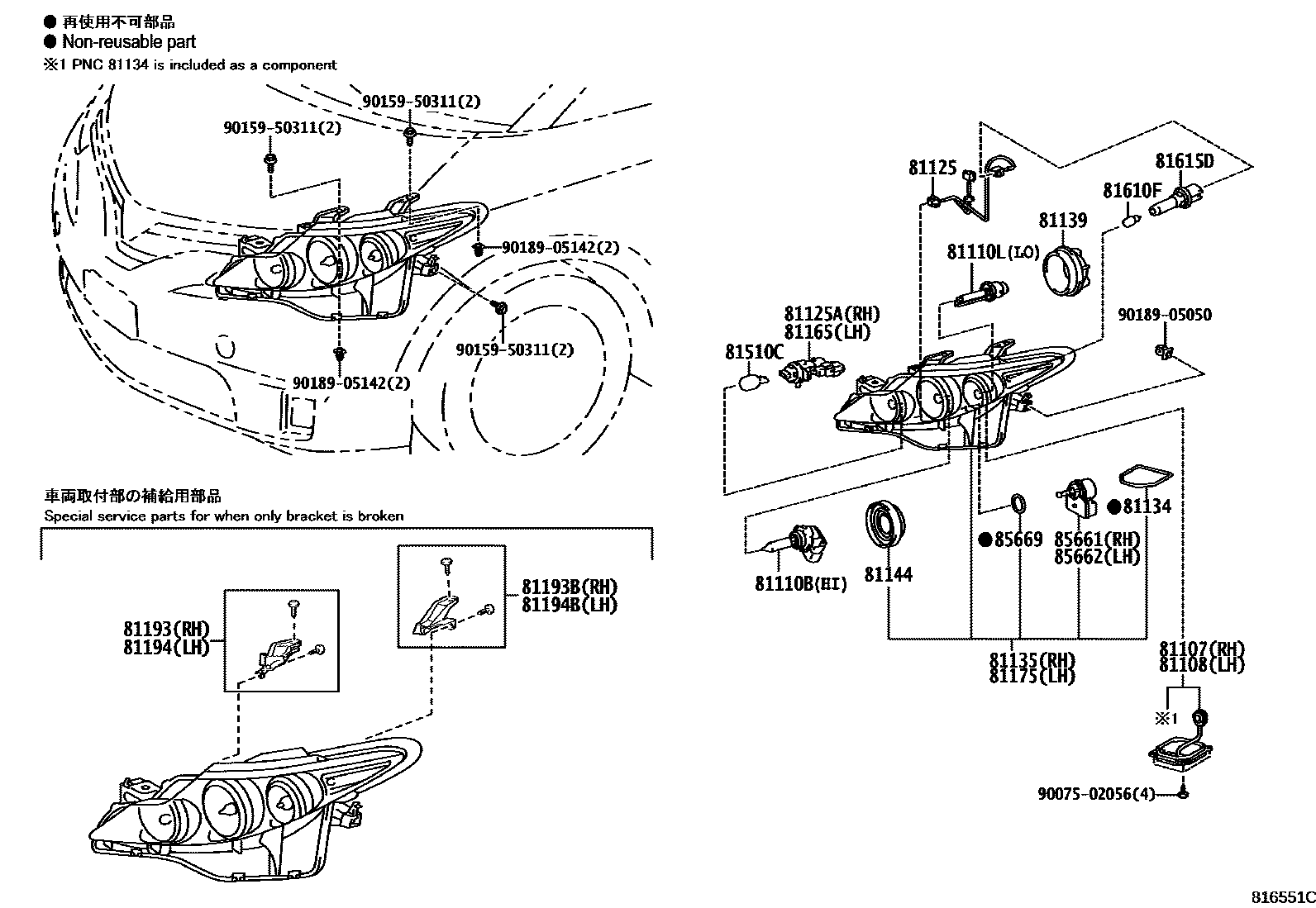

HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110LBULB, DISCHARGE HEADLAMP
42V 35W
81125CORD, HEADLAMP
81125ACORD, HEADLAMP, RH
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
sub81145-28C72
81139COVER, HEADLAMP SOCKET
81144COVER, HEADLAMP, NO.1
81165CORD, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
sub81185-28C72
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502056
main90075-02056
9015950311
main90159-50311
9018905050
main90189-05050
9018905142
main90189-05142
26 parts on this diagram · 1 diagram in section
