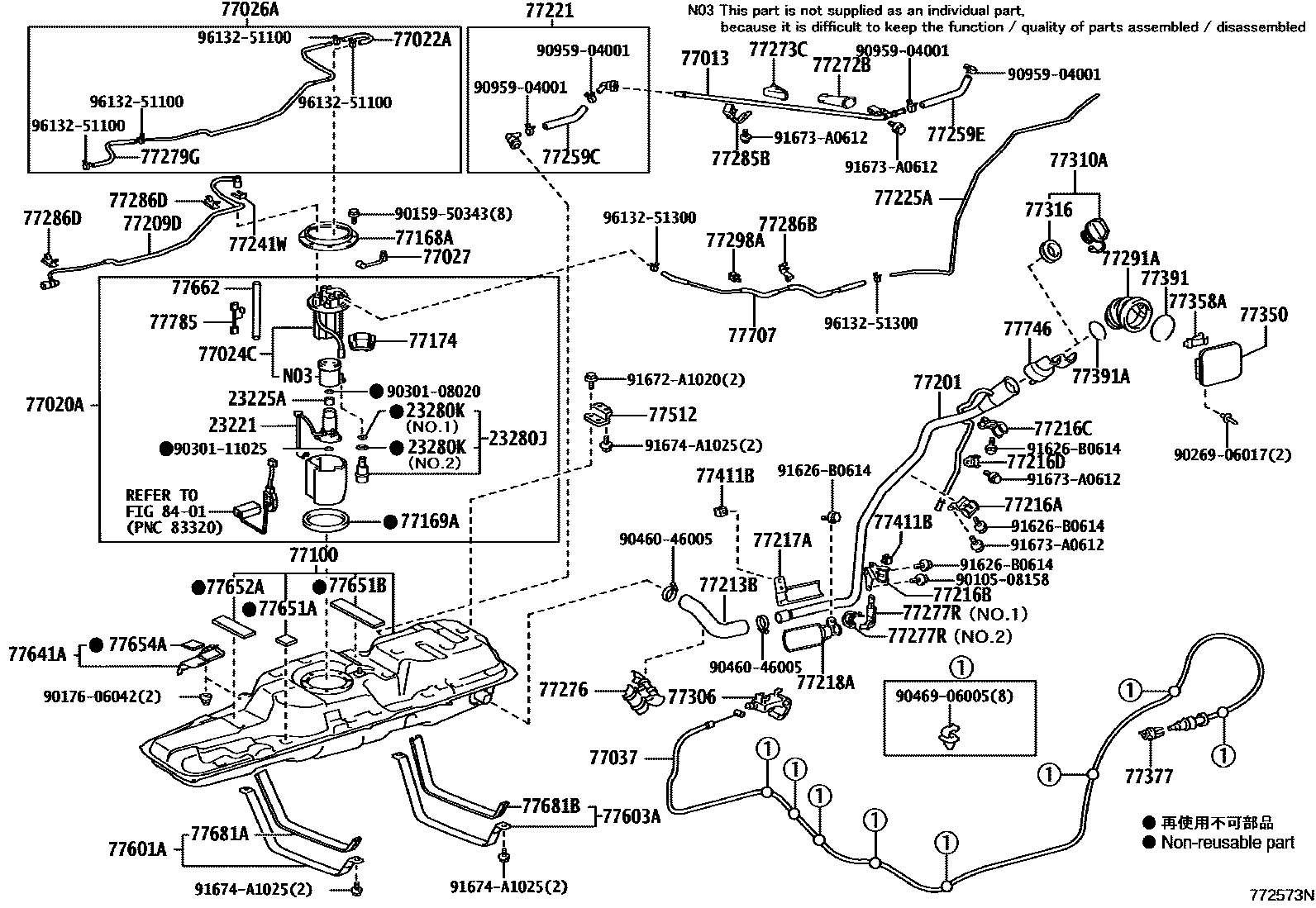

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE

23221PUMP, FUEL

main23220-28301i2AZFXE..AHR20201304

23225ASPACER, FUEL PUMP

main23225-21020i2AZFXE..AHR20201304

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2AZFXE..AHR20201304

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2AZFXE..AHR20201304

NO.1

main90301-15024i2AZFXE..AHR20201304

NO.2

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-28080iAHR20201304

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-28091iAHR20201304

sub77020-28092

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77279-28090iAHR20201304

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-28060iAHR20201304-201605

sub77024-28061

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-28131iAHR20201304

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-28010iAHR20201304

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-28080iAHR20201304

77100TANK ASSY, FUEL

main77001-28551iAHR20201304

sub77001-28552

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iAHR20201304

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iAHR20201304

77174SUPPORT, FUEL SUCTION, NO.1

main77174-72020iAHR20201304

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28260iAHR20201304

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-28050iAHR20201304

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-28050iAHR20201304

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-28160iAHR20201304

77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-28170iAHR20201304

77216CSUPPORT, FUEL TANK FILLER PIPE NO.3

main77216-28180iAHR20201304

77216DSUPPORT, FUEL TANK FILLER PIPE NO.4

main77216-28190iAHR20201304

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-28200iAHR20201304

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77216-28320iAHR20201304

77221TUBE, FUEL TANK BREATHER, NO.1

main77221-28110iAHR20201304

77225ATUBE, FUEL TANK BREATHER, NO.5

main77225-28040iAHR20201304

77241WCLIP, TUBE JOINT

main77241-33011iAHR20201304

77259CHOSE, FUEL

main77259-28090iAHR20201304

77259EHOSE, FUEL

main77259-28080iAHR20201304

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-28050iAHR20201304

77273CSUPPORT, BREATHER TUBE, NO.2

main77273-28010iAHR20201304

77276PROTECTOR, FUEL HOSE

main77276-28010iAHR20201304

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-28050iAHR20201304

NO.1

main77277-28060iAHR20201304

NO.2

77279GHOSE, FUEL, NO.2

main77279-28101iAHR20201304

77285BCLAMP, FUEL TUBE W/GROMMET, NO.1

main77285-28030iAHR20201304

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77285-28040iAHR20201304

77286DCLAMP, FUEL TUBE, NO.2

main77286-58010×2iAHR20201304

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-28040iAHR20201304

77298ACLAMP, FUEL TUBE, NO.4

main77298-30170iAHR20201304

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-58020-C0iAHR20201304-201605

BLACK

77310ACAP ASSY, FUEL TANK

main77300-52030iAHR20201304

77316GASKET, FUEL TANK CAP

main77316-52040iAHR20201304

77350LID ASSY, FUEL FILLER OPENING

main77350-28030iAHR20201304

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-30060iAHR20201304

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iAHR20201304

77391RING, FUEL INLET BOX

main77391-28010iAHR20201304

77391ARING, FUEL INLET BOX

main77391-28020iAHR20201304

77411BSUPPORT, FUEL TUBE GROMMET, NO.1

main77411-20050×2iAHR20201304

77512BRACKET, FUEL TANK, REAR

main77512-28020iAHR20201304

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-28100iAHR20201304-201603

main77601-28150iAHR20201603-201605

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-28030iAHR20201304-201603

main77602-28070iAHR20201603-201605

77641APROTECTOR, FUEL TANK, NO.1

main77641-28120iAHR20201304

77651ACUSHION, FUEL TANK, NO.1

main77651-20090×4iAHR20201304

77651BCUSHION, FUEL TANK

main77651-35060iAHR20201304

77652ACUSHION, FUEL TANK, NO.2

main77652-30070iAHR20201304

77654ACUSHION, FUEL TANK, NO.4

main77651-21020iAHR20201304

77662COVER, FUEL TANK GAGE

main77662-53010iAHR20201304

77681ASEAT, FUEL TANK BAND

main77616-68010iAHR20201304-201605

77681BSEAT, FUEL TANK BAND

main77681-28060iAHR20201304-201605

77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

main77707-28020iAHR20201304

77746FILTER, CHARCOAL CANISTER, NO.2

main77745-12050iAHR20201304

77785HARNESS, FUEL PUMP

main77785-28030iAHR20201304

8401

9010508158

main90105-08158

9015950343

main90159-50343

9017606042

main90176-06042

9026906017

main90269-06017

9030108020

main90301-08020

9030111025

main90301-11025

9046046005

main90460-46005

9046906005

main90469-06005

9095904001

main90959-04001

91626B0614

main91626-B0614

91672A1020

main91672-A1020

91673A0612

main91673-A0612

91674A1025

main91674-A1025

9613251100

main96132-51100

9613251300

main96132-51300

78 parts on this diagram · 2 diagrams in section
