MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-28040iAHR20201304

75533MOULDING, WINDSHIELD, OUTSIDE RH

main76003-28010iAHR20201304

75534MOULDING, WINDSHIELD, OUTSIDE LH

main76004-28010iAHR20201304

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-28040iAHR20201304

75545GCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-28050iAHR20201304

75546CLIP, WINDSHIELD OUTSIDE MOULDING

main75545-28061iAHR20201304

RH,NO.1

main75545-28070iAHR20201304

NO.2

main75545-28080iAHR20201304

NO.3

main75545-28090iAHR20201304

NO.4

main75545-28101iAHR20201304

RH,NO.5

main75546-28030iAHR20201304

LH,NO.1

main75546-28050iAHR20201304

LH,NO.5

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-28070iAHR20201304

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-28070iAHR20201304

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52040iAHR20201304

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-28010iAHR20201304

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-28010iAHR20201304

9026906013

main90269-06013

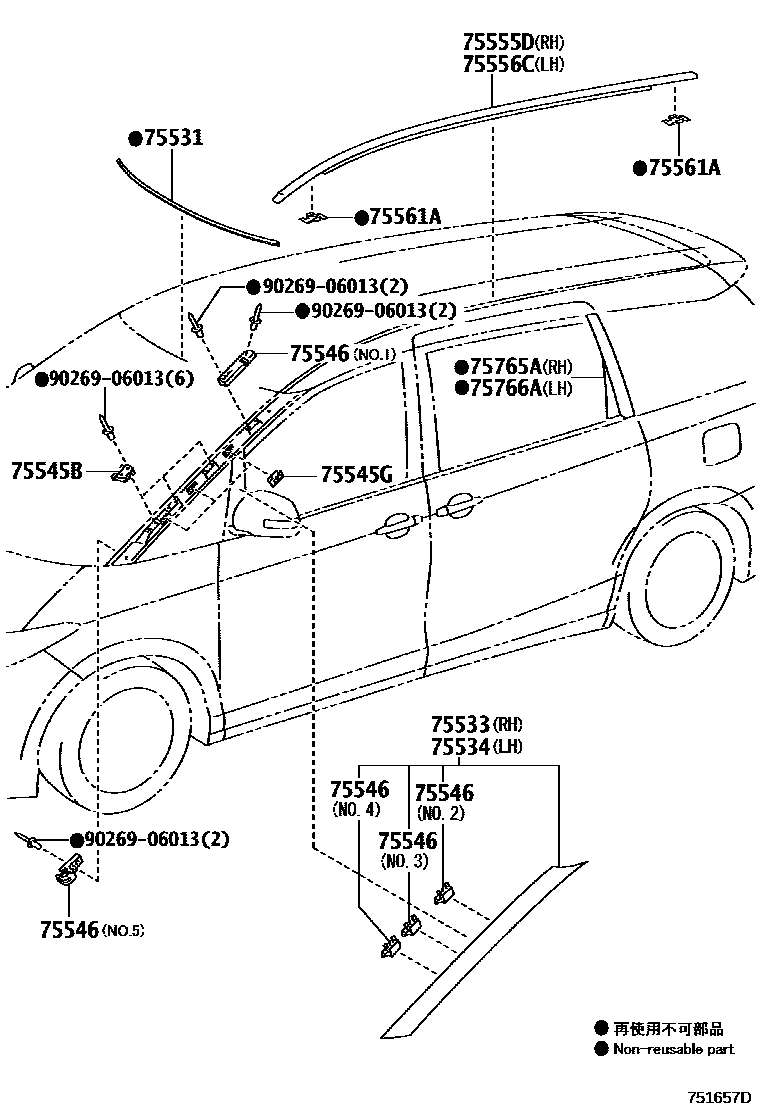

12 parts on this diagram · 1 diagram in section
