REAR SEAT & SEAT TRACK

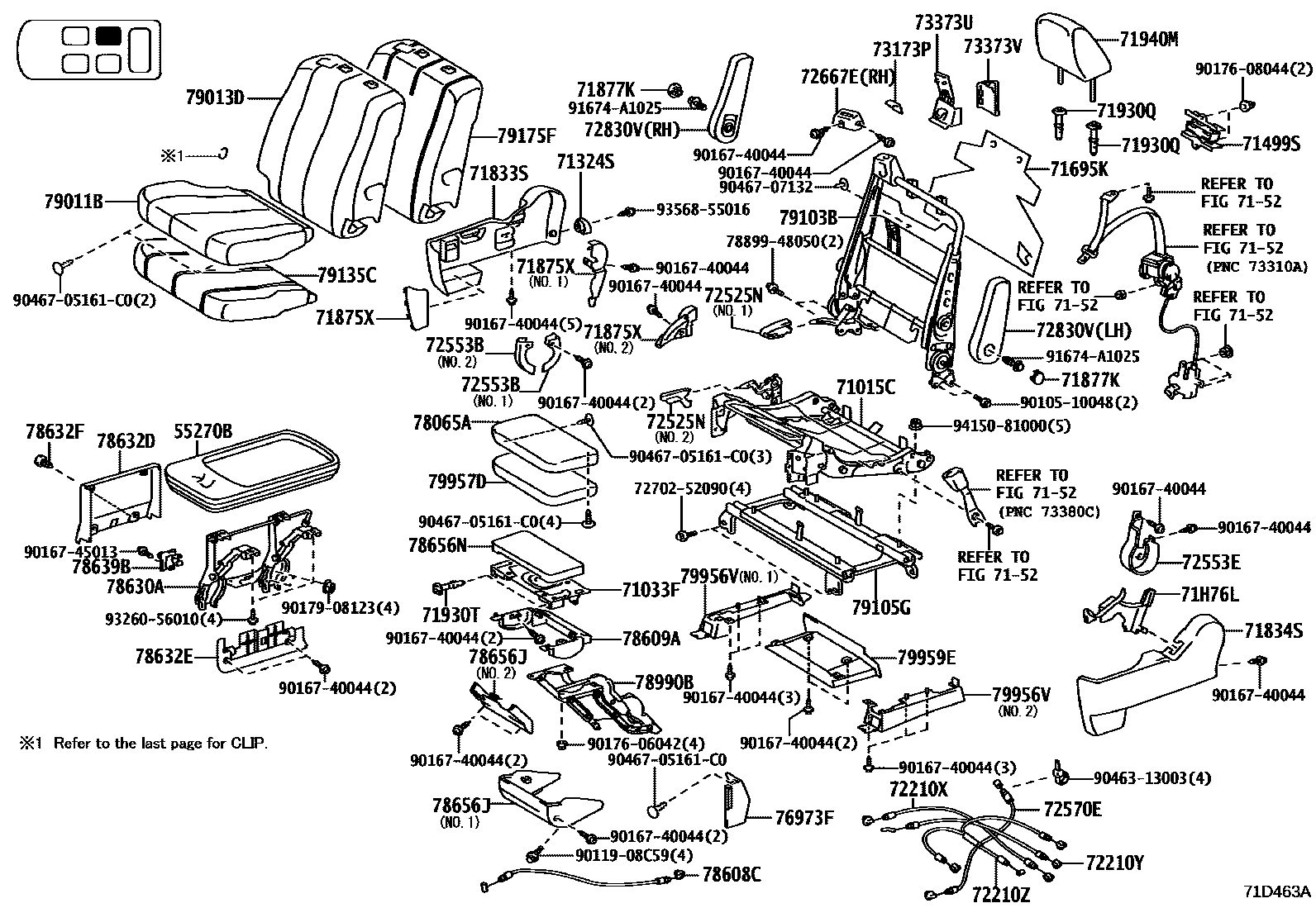

Parts diagram
55270BTABLE ASSY
main78631-44010-A1i201304-201605
SHELL,TRIM0#
71015CFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
main71015-28170i¥35,000201304-201605
71033FLEG SUB-ASSY, REAR SEAT CUSHION, RH
main71033-28131i¥3,040201304-201605
71324SCUSHION, REAR NO.1 SEAT, RH
main71324-28150i¥460201304-201605
71499SDAMPER, SEAT CUSHION SPRING
main71499-28050i¥8,900201304-201605
7152
71695KPROTECTOR, NO.1 SEATBACK, RH
main71695-28140i¥750201304-201605
71833SCOVER, REAR SEAT RECLINING, NO.1 RH
main71825-28040-A0i201304-201605
SHELL,TRIM0#
sub71825-28040¥9,200
71834SCOVER, REAR SEAT RECLINING, NO.1 LH
main71826-28030-A0i201304-201605
SHELL,TRIM0#
sub71826-28030¥9,000
71875XCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-28130-A0i201304-201605
SHELL,TRIM0#,NO.3:REFER ILLUST.
sub71875-28130¥1,760
main71875-28190-A0i201304-201605
SHELL,TRIM0#,NO.1:REFER ILLUST.
sub71875-28190¥1,470
main71875-28240-A0i201304-201605
SHELL,TRIM0#,NO.2:REFER ILLUST.
sub71875-28240¥2,610
71877KCOVER, REAR SEAT ARMREST HOLE RH
main72848-28030-A2i201304-201605
SHELL,TRIM0#
sub72848-28030¥360
sub72848-0E020
71930QSUPPORT ASSY, REAR SEAT HEADREST
main71930-52030-A2i201304-201605
W(LOCK)&W(BUTTON),SHELL,TRIM0#
sub71930-52030¥950
main71931-42020-A5i201304-201605
W(LOCK)&W/O(BUTTON),SHELL,TRIM0#
sub71931-42020¥590
71930TSUPPORT ASSY, REAR SEAT LEGREST
main71930-42020-A5i201304-201605
SHELL,TRIM0#
sub71930-52030¥950
sub71930-42020¥1,260
sub71930-44020¥1,260
71940MHEADREST ASSY, REAR SEAT
main71940-28C50-A1i201304-201605
SHELL,TRIM0#
71H76LCOVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)
main71876-28180-A0i201304-201605
SHELL,TRIM0#
sub71876-28180¥1,530
72210XCABLE ASSY, NO.1 SEAT TRACK CONTROL, RH
main72210-28280i¥630201304-201605
72210YCABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1
main72210-28250i¥1,660201304-201605
72210ZCABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.2
main72210-28260i¥2,110201304-201605
72525NHANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH
main72525-28120-A0i201304-201605
SHELL,TRIM0#,NO.1:REFER ILLUST.
sub72525-28120¥1,940
main72525-58060-A0i201304-201605
SHELL,TRIM0#,NO.2:REFER ILLUST.
sub72525-58060¥720
72553BPROTECTOR, RECLINING COVER, RH
main72554-28050-A0i201304-201605
SHELL,TRIM0#,NO.1:REFER ILLUST.
sub72554-28050¥500
main72554-28070-A0i201304-201605
SHELL,TRIM0#,NO.2:REFER ILLUST.
sub72554-28070¥500
72553EPROTECTOR, RECLINING COVER, RH NO.1
main72553-28050-A0i201304-201605
SHELL,TRIM0#
sub72553-28050¥1,600
72570ECABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH
main72570-28020i¥1,660201304-201605
72667EBEZEL, REAR SEATBACK LOCK, UPPER
main72667-28030-A0i201304-201605
SHELL,TRIM0#,RH
sub72667-28030¥3,570
main72667-28040-A0i201304-201605
SHELL,TRIM0#,LH
sub72667-28040¥3,570
72830VARMREST ASSY, REAR NO.1 SEAT, RH
main72880-2J091-A1i201304-201605
SHELL,TRIM0#,RH
main72890-28871-A1i201304-201605
SHELL,TRIM0#,LH
73173PCOVER, REAR SEAT BELT HOLE, RH
main73173-28040-A0i201304-201605
SHELL,TRIM0#
sub73173-28040¥760
73373UCOVER, NO.1 SEAT SHOULDER BELT, RH NO.1
main73373-28010i¥1,460201304-201605
73373VCOVER, NO.1 SEAT SHOULDER BELT, RH NO.2
main73373-28040i¥1,030201304-201605
76973FCOVER, REAR UNDER SIDE, RH
main76971-28010i¥1,470201304-201605
78065ACOVER SUB-ASSY, REAR SEAT LEGREST, RH
main78065-28101-A0i201304-201605
SHELL,TRIM0#
78608CCABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR RH SEAT)
main78608-28010i¥1,680201304-201605
78609ACOVER SUB-ASSY, REAR SEAT LEGREST LOCK(FOR RH SEAT)
main78609-28010-A0i201304-201605
SHELL,TRIM0#
sub78609-28010¥2,330
sub78609-08020¥1,940
78630AADJUSTER ASSY, FR0NT SEAT SIDE TABLE
main78630-58010i¥13,100201304-201605
78632DCOVER, REAR SEAT SIDE TABLE, NO.1
main78632-44020-A1i201304-201605
SHELL,TRIM0#
sub78632-44020¥4,790
78632ECOVER, REAR SEAT SIDE TABLE, NO.2
main78632-28010-A0i201304-201605
SHELL,TRIM0#
sub78632-28010¥1,790
78632FCLIP, REAR SEAT SIDE TABLE COVER
main90467-06177-A2i201304-201605
SHELL,TRIM0#
sub90467-05164¥110
sub90467-06177¥100
78639BCLIP, REAR SEAT SIDE TABLE
main78639-26010-A1i201304-201605
SHELL,TRIM0#
sub78639-26010¥1,180
78656JCOVER, REAR SEAT LEGREST, RH
main78656-28140-A0i201304-201605
SHELL,TRIM0#,NO.1:REFER ILLUST.
sub78656-28140¥3,240
sub78656-08080
main78656-28151-A0i201304-201605
SHELL,TRIM0#,NO.2:REFER ILLUST.
sub78656-08090
78656NCOVER, REAR SEAT LEGREST, RH NO.2
main78656-28110-A0i201304-201605
SHELL,TRIM0#
sub78656-28110¥4,580
sub78656-08070
78990BADJUSTER ASSY, NO.1 SEAT FOOTREST(FOR RH SEAT)
main78990-28010i¥8,900201304-201605
79011BCOVER SUB-ASSY, NO.1 SEAT CUSHION, RH
main71075-28861-A1i201304-201605
SHELL,TRIM0#
79013DCOVER SUB-ASSY, NO.1 SEATBACK, RH
main71077-28891-A0i201304-201605
SHELL,TRIM0#
79103BFRAME SUB-ASSY, NO.1 SEATBACK, RH
main71017-28130i¥45,000201304-201605
79105GLEG SUB-ASSY, NO.1 SEAT, RH
main79105-28320i¥16,500201304-201605
79135CPAD, NO.1 SEAT CUSHION, RH
main71611-28200i¥16,100201304-201605
79175FPAD, NO.1 SEATBACK, RH
main71651-28200i¥13,100201304-201605
79956VCOVER, REAR SEAT LEG SIDE, RH
main79968-28060-A0i201304-201605
SHELL,TRIM0#,NO.1:REFER ILLUST.
sub79968-28060¥2,340
main79969-28030-A0i201304-201605
SHELL,TRIM0#,NO.2:REFER ILLUST.
sub79969-28030¥2,910
79957DPAD, REAR SEAT LEG SIDE
main79957-28012i¥13,400201304-201605
79959ECOVER, NO.1 SEAT LEG, RH
main79959-28170-A0i201304-201605
SHELL,TRIM0#
sub79959-28170¥4,620
7270252090BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52090¥400
7889948050BOLT, FRONT SEAT
main78899-48050¥230
9010510048
main90105-10048¥130
9011908C59
main90119-08C59¥80
9016740044
main90167-40044¥70
9016745013
main90167-45013¥90
9017606042
main90176-06042¥90
9017608044
main90176-08044¥90
9017908123
main90179-08123¥160
9046313003
main90463-13003¥180
9046705161C0
main90467-05161C0
9046707132
main90467-07132¥90
91674A1025
main91674-A1025¥120
9326056010
main93260-56010¥70
9356855016
main93568-55016¥70
9415081000
main94150-81000¥100

64 parts on this diagram · 5 diagrams in section
