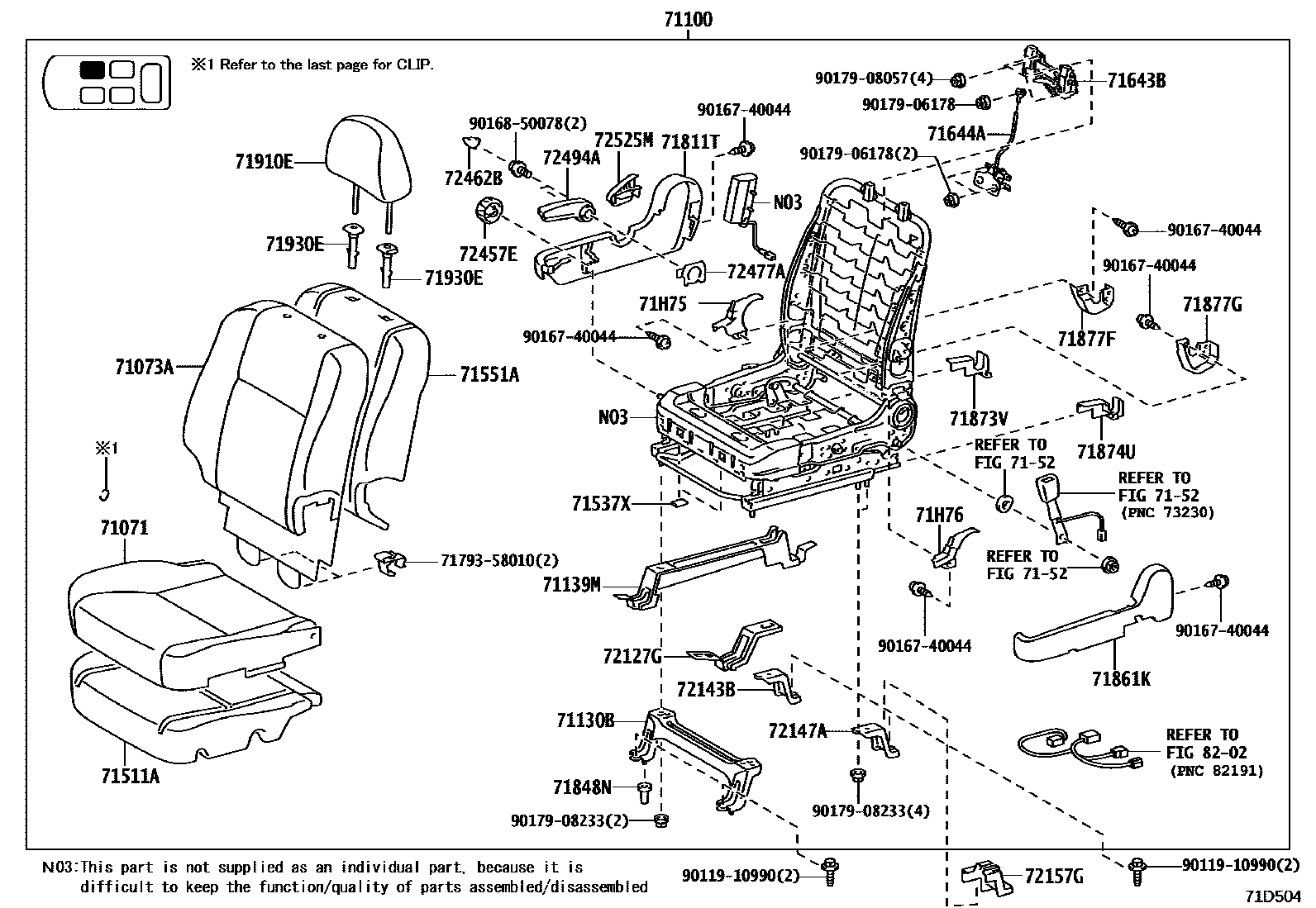

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1PASSENGER SEAT 0003 1CLIP

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-28D71-A0iAHR20201304-201605

SHELL,TRIM0#

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71073-28N90-A0iAHR20201304-201605

SHELL,TRIM0#

71100SEAT ASSY, FRONT RH

main71100-28Y80-A1iAHR20201304-201409

SHELL,TRIM0#

main71100-28Y80-A3iAHR20201409-201605

SHELL,TRIM0#

71130BLEG ASSY, FRONT SEAT, RH

main71130-28060iAHR20201304-201605

71139MCOVER, FRONT SEAT LEG, RH OUTER

main71139-28110-A0iAHR20201304-201605

SHELL,TRIM0#

71511APAD, FRONT SEAT CUSHION, RH

main71511-28320iAHR20201304-201605

7152

71537XPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-26010×2iAHR20201304-201605

71551APAD, FRONT SEATBACK, RH

main71551-28750iAHR20201304-201605

71643BUNIT, ACTIVE HEADREST, UPR

main71643-12011×2iAHR20201304-201605

71644AUNIT, ACTIVE HEADREST, LWR

main71644-12030×2iAHR20201304-201605

71811TSHIELD, FRONT SEAT CUSHION, RH

main71811-28340-A0iAHR20201304-201605

SHELL,TRIM0#

71848NCAP, FRONT SEAT ADJUSTER COVER, RH NO.1

main71848-33010×2iAHR20201304-201605

71861KSHIELD, FRONT SEAT CUSHION, INNER RH

main71861-28060-A0iAHR20201304-201605

SHELL,TRIM0#

71873VSHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-28011×2iAHR20201304-201605

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-28011×2iAHR20201304-201605

71877FCOVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)

main71875-58060iAHR20201304-201605

71877GCOVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

main71876-58060iAHR20201304-201605

71910EHEADREST ASSY, FRONT SEAT, RH

main71910-28C30-A0iAHR20201304-201605

SHELL,TRIM0#

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

main71930-52030-A2iAHR20201304-201605

W(LOCK)&W(BUTTON),SHELL,TRIM0#

main71931-42020-A5iAHR20201304-201605

W(LOCK)&W/O(BUTTON),SHELL,TRIM0#

71H75COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)

main71875-58040-A2iAHR20201304-201605

SHELL,TRIM0#

71H76COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

main71876-58040-A2iAHR20201304-201605

SHELL,TRIM0#

72127GCOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-28030-A0iAHR20201304-201605

SHELL,TRIM0#

72143BBRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT)

main72143-28100iAHR20201304-201605

72147ABRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

main72143-28100iAHR20201304-201605

72157GCOVER, SEAT TRACK BRACKET, INNER REAR RH

main72157-28050-A0iAHR20201304-201605

SHELL,TRIM0#

72457EKNOB, VERTICAL SEAT ADJUSTER, RH

main72457-58010-A2iAHR20201304-201605

SHELL,TRIM0#

72462BCOVER, VERTICAL ADJUSTER RH

main72462-60010-A1iAHR20201304-201605

SHELL,TRIM0#

72477ASPACER, VERTICAL ADJUSTER

main72477-52010-C0iAHR20201304-201605

BLACK

72494AHANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

main72494-60020-A1iAHR20201304-201605

SHELL,TRIM0#

72525MHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-58030-A2iAHR20201304-201605

SHELL,TRIM0#

8202

7179358010PLATE, REAR SEAT UNDER BOARD SET, REAR CENTER RH

main71793-58010

9011910990

main90119-10990

9016740044

main90167-40044

9016850078

main90168-50078

9017906178

main90179-06178

9017908057

main90179-08057

9017908233

main90179-08233

39 parts on this diagram · 3 diagrams in section
