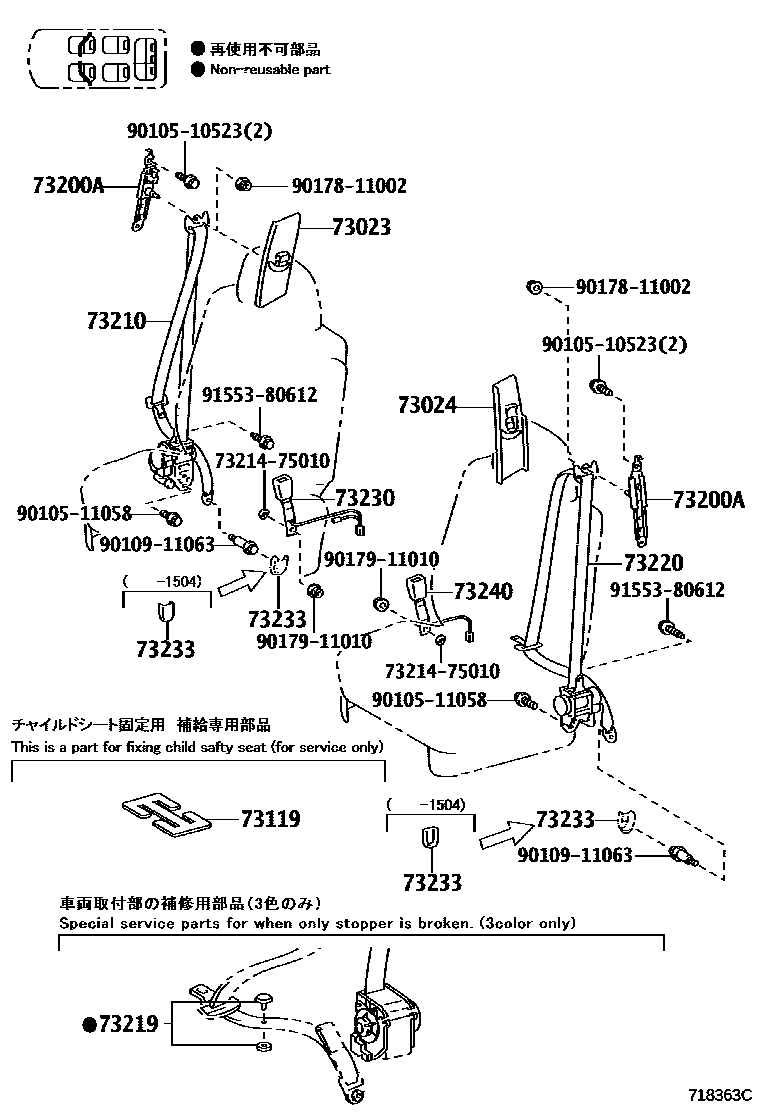

SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-30010-A3iAHR20201304-201605

SHELL,TRIM0#

sub73023-30010

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-30010-A3iAHR20201304-201605

SHELL,TRIM0#

sub73024-30010

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAHR20201304

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iAHR20201507

main73200-53010iAHR20201304-201506

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-28800-A1iAHR20201304-201308

IVORY,TRIM0#

sub73210-28801

main73210-28801-A1iAHR20201309-201605

IVORY,TRIM0#

73219STOPPER, TONGUE PLATE

main73219-33010iAHR20201304

BLACK

main73219-33020iAHR20201304

GRAY

main73219-33030iAHR20201304

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-28770-A1iAHR20201304-201308

IVORY,TRIM0#

sub73220-28771

main73220-28771-A1iAHR20201309-201605

IVORY,TRIM0#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-28570-A0iAHR20201304-201605

SHELL,TRIM0#

73233COVER, LAP BELT OUTER ANCHOR

main73233-52010-A1iAHR20201304-201504

SHELL,TRIM0#

sub73233-60020

sub73233-0C010

main73233-60020-A1iAHR20201504-201605

SHELL,TRIM0#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-28580-A0iAHR20201304-201605

SHELL,TRIM0#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511058

main90105-11058

9010911063

main90109-11063

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

17 parts on this diagram · 3 diagrams in section
