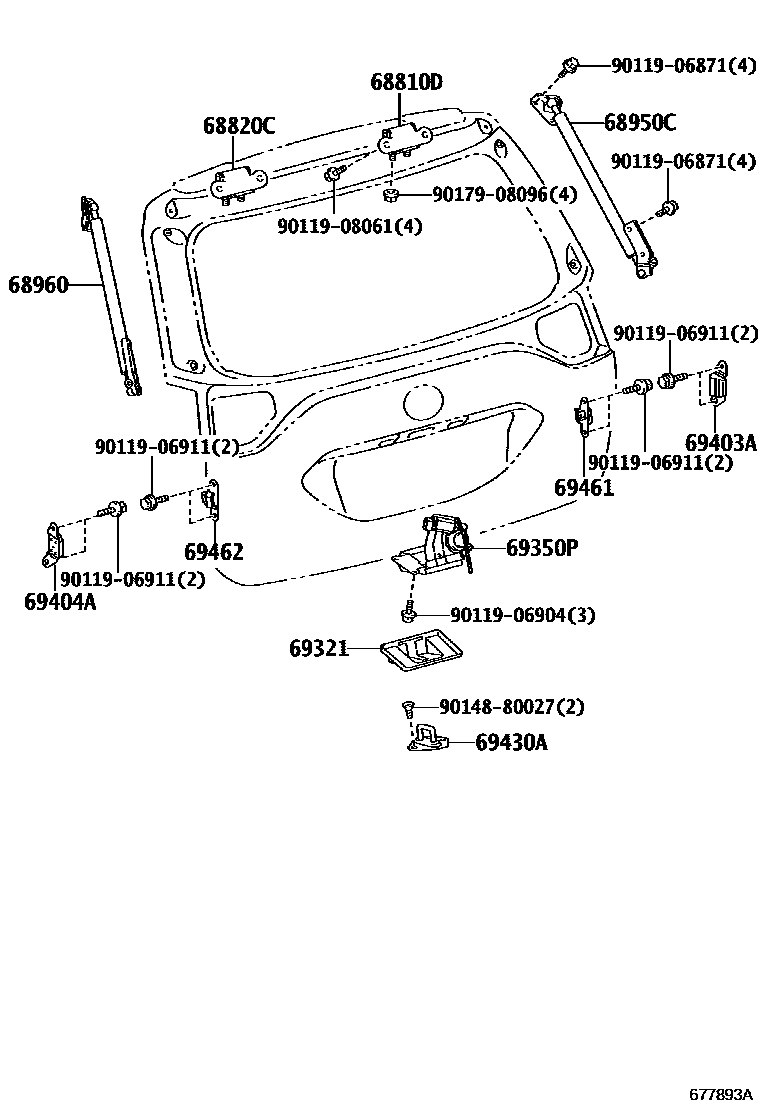

BACK DOOR LOCK & HINGE

68810DHINGE ASSY, BACK DOOR, RH

main68810-21050iAHR20201304-201512

main68810-21051iAHR20201601-201605

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iAHR20201304-201512

main68810-21051iAHR20201601-201605

68950CSTAY ASSY, BACK DOOR, RH

main68950-28305iAHR20201304

68960STAY ASSY, BACK DOOR, LH

main68960-28305iAHR20201304

69321COVER, BACK DOOR LOCK

main69321-28020iAHR20201304

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150iAHR20201304-201512

sub69350-28151

main69350-28151iAHR20201601-201605

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-28030iAHR20201304

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-28020iAHR20201304

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-28050iAHR20201304

69461STOPPER, BACK DOOR SIDE MALE, RH

main67281-28010iAHR20201304

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-28010iAHR20201304

9011906871

main90119-06871

9011906904

main90119-06904

9011906911

main90119-06911

9011908061

main90119-08061

9014880027

main90148-80027

9017908096

main90179-08096

17 parts on this diagram · 1 diagram in section
