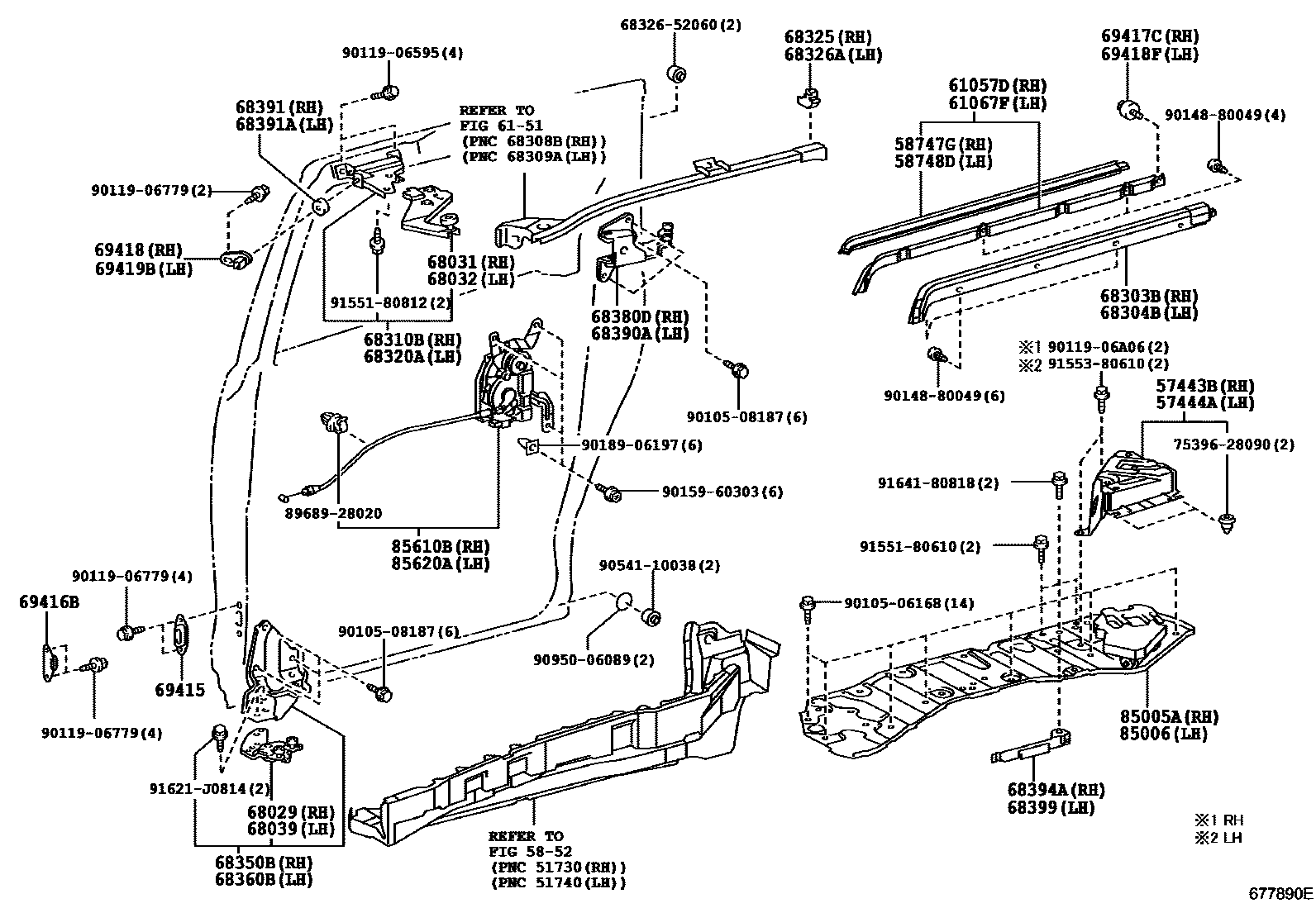

SLIDE ROLLER & RAIL
57443BSUPPORT, SIDE STEP, REAR RH
57444ASUPPORT, SIDE STEP, REAR LH
5852
58747GPROTECTOR, QUARTER PANEL, REAR RH
58748DPROTECTOR, QUARTER PANEL, REAR LH
61057DRAIL SUB-ASSY, REAR SIDE, RH
61067FRAIL SUB-ASSY, REAR SIDE, LH
6151
68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER
68031ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH
68032ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH
68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68310BROLLER ASSY, SLIDE DOOR, UPPER RH
68320AROLLER ASSY, SLIDE DOOR, UPPER, LH
68325CUSHION, SLIDE DOOR UPPER RAIL, RH
68326ACUSHION, SLIDE DOOR UPPER RAIL, LH
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68360BROLLER ASSY, SLIDE DOOR, LOWER LH
68380DHINGE ASSY, SLIDE DOOR, CENTER RH
68390AHINGE ASSY, SLIDE DOOR, CENTER LH
68391CUSHION, SLIDE DOOR UPPER ROLLER, RH
68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH
68394APLATE, SLIDE DOOR LOWER RAIL, RH
68399PLATE, SLIDE DOOR LOWER RAIL, LH
69415STOPPER, SLIDE DOOR DOWN FEMALE
69416BSTOPPER, SLIDE DOOR DOWN MALE
69417CCUSHION, SLIDE DOOR OPEN STOPPER, RH
69418STOP, SLIDE DOOR OPEN
69418FCUSHION, SLIDE DOOR OPEN STOPPER, LH
69419BSTOP, SLIDE DOOR OPEN, LH
85005AMOTOR UNIT, SLIDE DOOR, RH
85006MOTOR UNIT, SLIDE DOOR, LH
85610BMOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH
85620AMOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH
6832652060CLIP(FOR TAIL GATE REMOTE CONTROL LINK)
7539628090CLIP, OUTSIDE MOULDING, NO.2
8968928020CLAMP, WIRELESS DOOR LOCK
9010506168
9010508187
9011906595
9011906779
9011906A06
9014880049
9015960303
9018906197
9054110038
9095006089
9155180610
9155180812
9155380610
91621J0814
9164180818
54 parts on this diagram · 1 diagram in section
