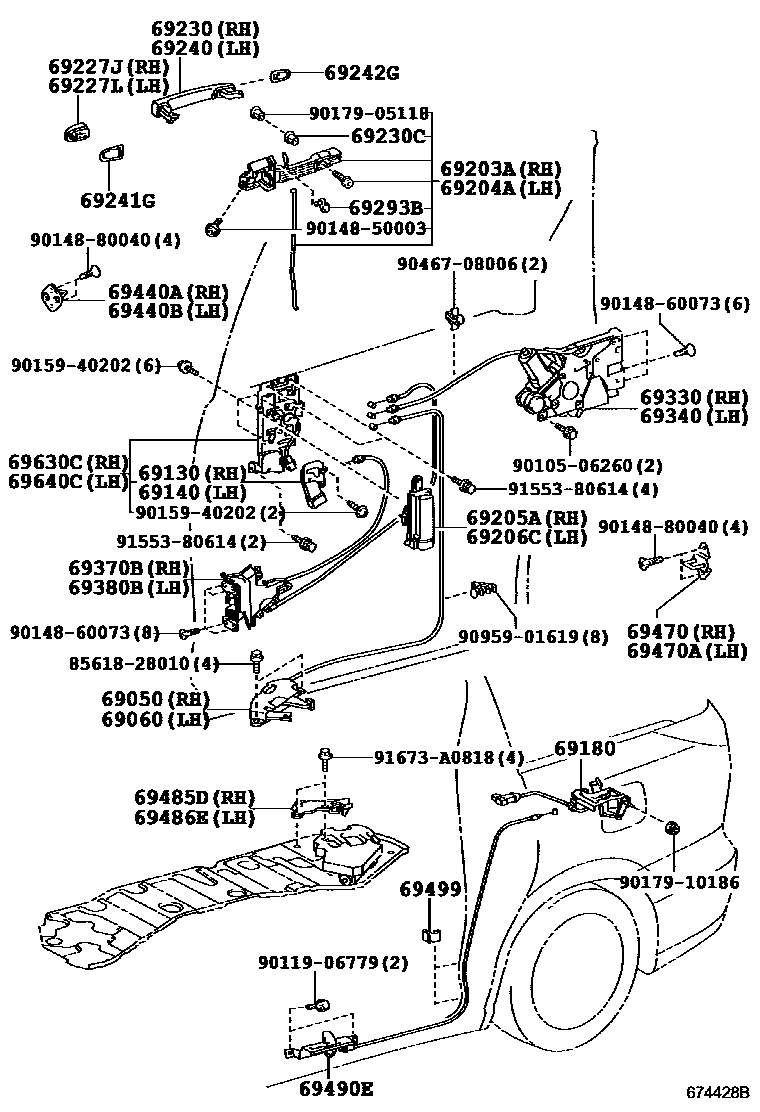

REAR DOOR LOCK & HANDLE

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69050-28041iAHR20201304

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69060-28071iAHR20201304

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-58020iAHR20201304

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-58020iAHR20201304

69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER

main69180-28080iAHR20201304

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-28020iAHR20201304

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-28020iAHR20201304

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69207-58010-E3iAHR20201304-201605

DK. BROWN,TRIM0#,W(CHILD LOCK LEVER)

sub69281-58010

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69208-58010-E3iAHR20201304-201605

DK. BROWN,TRIM0#,W(CHILD LOCK LEVER)

sub69282-58010

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69250-58010-A2iAHR20201304-201605

WHITE PEARL CS.,070

main69250-58010-B1iAHR20201304-201605

SILVER ME.,1F7

main69250-58010-B9iAHR20201304-201605

ICE TITANIUM M.M.,1H4

main69250-58010-C1iAHR20201304-201605

BLACK,202

main69250-58010-D2iAHR20201304-201605

DEEP RED M.M.,3R9

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69250-58010-A2iAHR20201304-201605

WHITE PEARL CS.,070

main69250-58010-B1iAHR20201304-201605

SILVER ME.,1F7

main69250-58010-B9iAHR20201304-201605

ICE TITANIUM M.M.,1H4

main69250-58010-C1iAHR20201304-201605

BLACK,202

main69250-58010-D2iAHR20201304-201605

DEEP RED M.M.,3R9

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-28080-A0iAHR20201304-201605

WHITE PEARL CS.,070

main69230-28080-B0iAHR20201304-201605

SILVER ME.,1F7

main69230-28080-B5iAHR20201304-201605

ICE TITANIUM M.M.,1H4

main69230-28080-C0iAHR20201304-201605

BLACK,202

main69230-28080-D0iAHR20201304-201605

DEEP RED M.M.,3R9

69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)

main90386-08066×2iAHR20201304

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69230-28080-A0iAHR20201304-201605

WHITE PEARL CS.,070

main69230-28080-B0iAHR20201304-201605

SILVER ME.,1F7

main69230-28080-B5iAHR20201304-201605

ICE TITANIUM M.M.,1H4

main69230-28080-C0iAHR20201304-201605

BLACK,202

main69230-28080-D0iAHR20201304-201605

DEEP RED M.M.,3R9

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69242-60030×2iAHR20201304

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-28060×2iAHR20201304

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iAHR20201304

LH

main69293-12040iAHR20201304

RH

69330LOCK ASSY, REAR DOOR, RH

main69200-28043iAHR20201304

69340LOCK ASSY, REAR DOOR, LH

main69300-28083iAHR20201304

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-28101iAHR20201304

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-28111iAHR20201304

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-58011iAHR20201304

69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-58011iAHR20201304

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28120iAHR20201304

69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH

main69470-28120iAHR20201304

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-28040iAHR20201304

69486ESTRIKER, SLIDE DOOR OPEN, LH

main69486-28060iAHR20201304

69490ESTOPPER ASSY, SLIDE DOOR HALF OPEN

main69490-28040iAHR20201304

69499CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE

main69499-28020×2iAHR20201304

69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH

main69630-28160iAHR20201304

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-28240iAHR20201304

8561828010SCREW, SLIDE ROOF MOTOR THRUST

main85618-28010

9010506260

main90105-06260

9011906779

main90119-06779

9014850003

main90148-50003

9014860073

main90148-60073

9014880040

main90148-80040

9015940202

main90159-40202

9017905118

main90179-05118

9017910186

main90179-10186

9046708006

main90467-08006

9095901619

main90959-01619

9155380614

main91553-80614

91673A0818

main91673-A0818

44 parts on this diagram · 1 diagram in section
