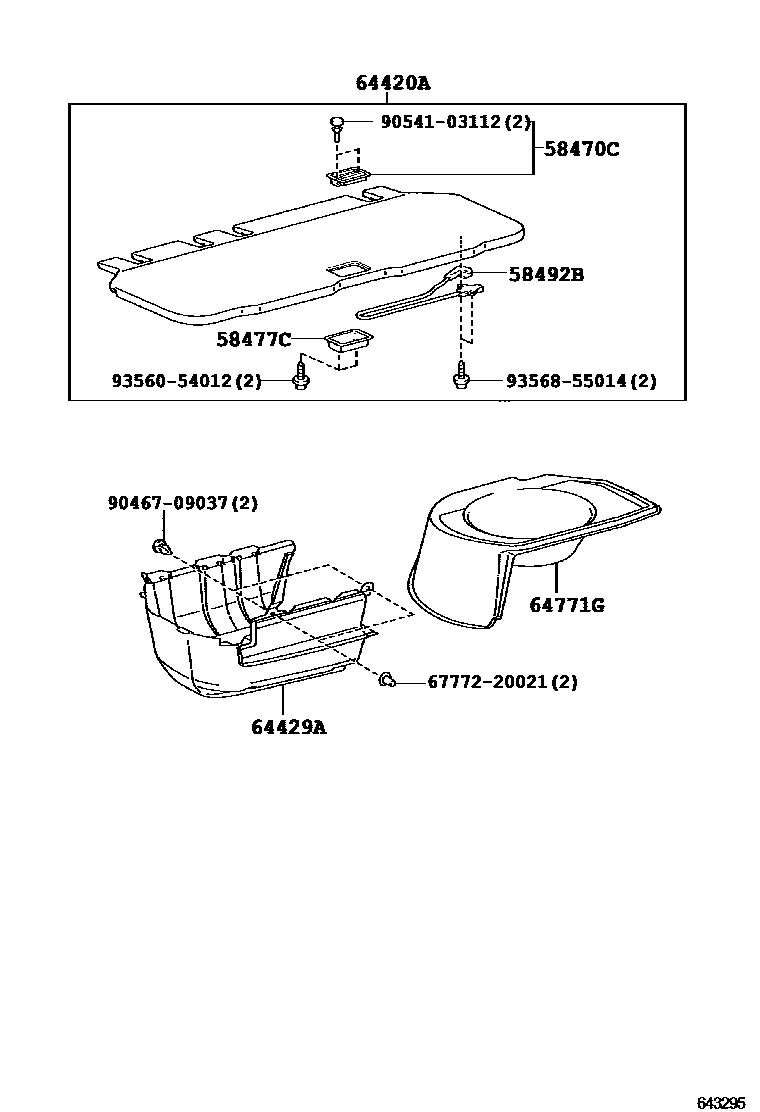

DECK BOARD & DECK TRIM COVER

58470CHANDLE ASSY, DECK BOARD

main58470-33010-A2iAHR20201304-201605

SHELL,TRIM0#

58477CPROTECTOR, DECK BOARD, NO.1

main58477-28020iAHR20201304-201605

58492BHOOK, DECK BOARD LOCK

main58492-28040iAHR20201304

64420ALID ASSY, LUGGAGE ROOM BOX

main64420-28060-A0iAHR20201304-201512

SHELL,TRIM0#

main64420-28100-A0iAHR20201601-201605

SHELL,TRIM0#

64429ABOX, LUGGAGE COMPARTMENT TRIM

main64429-28100iAHR20201304-201605

64771GCOVER, SPARE WHEEL

main64771-28050iAHR20201304

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9046709037

main90467-09037

9054103112

main90541-03112

9356054012

main93560-54012

9356855014

main93568-55014

11 parts on this diagram · 1 diagram in section
