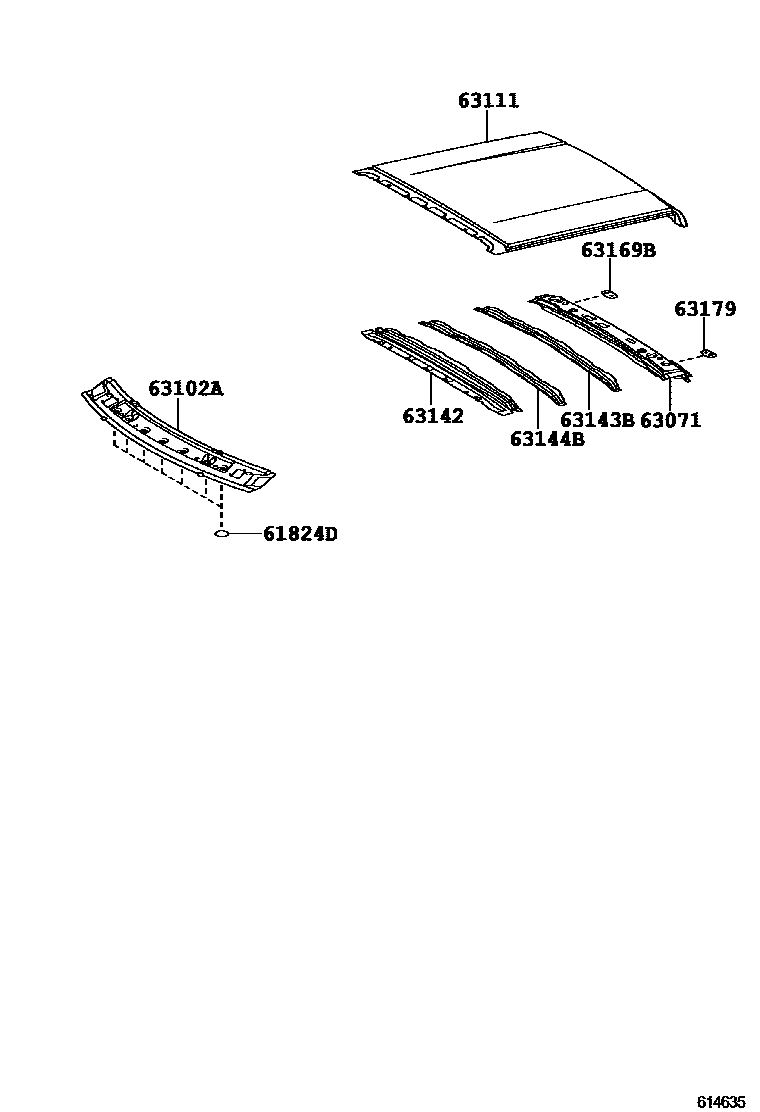

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF

61824DPLATE, NOISE CONTROL, NO.1

main61824-12050×7iAHR20201304

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-28040iAHR20201304

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-28040iAHR20201304

63111PANEL, ROOF

main63111-28270iAHR20201304

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-28090iAHR20201304

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-28090iAHR20201304

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-28080iAHR20201304

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-35020iAHR20201304

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-35020iAHR20201304

9 parts on this diagram · 2 diagrams in section
