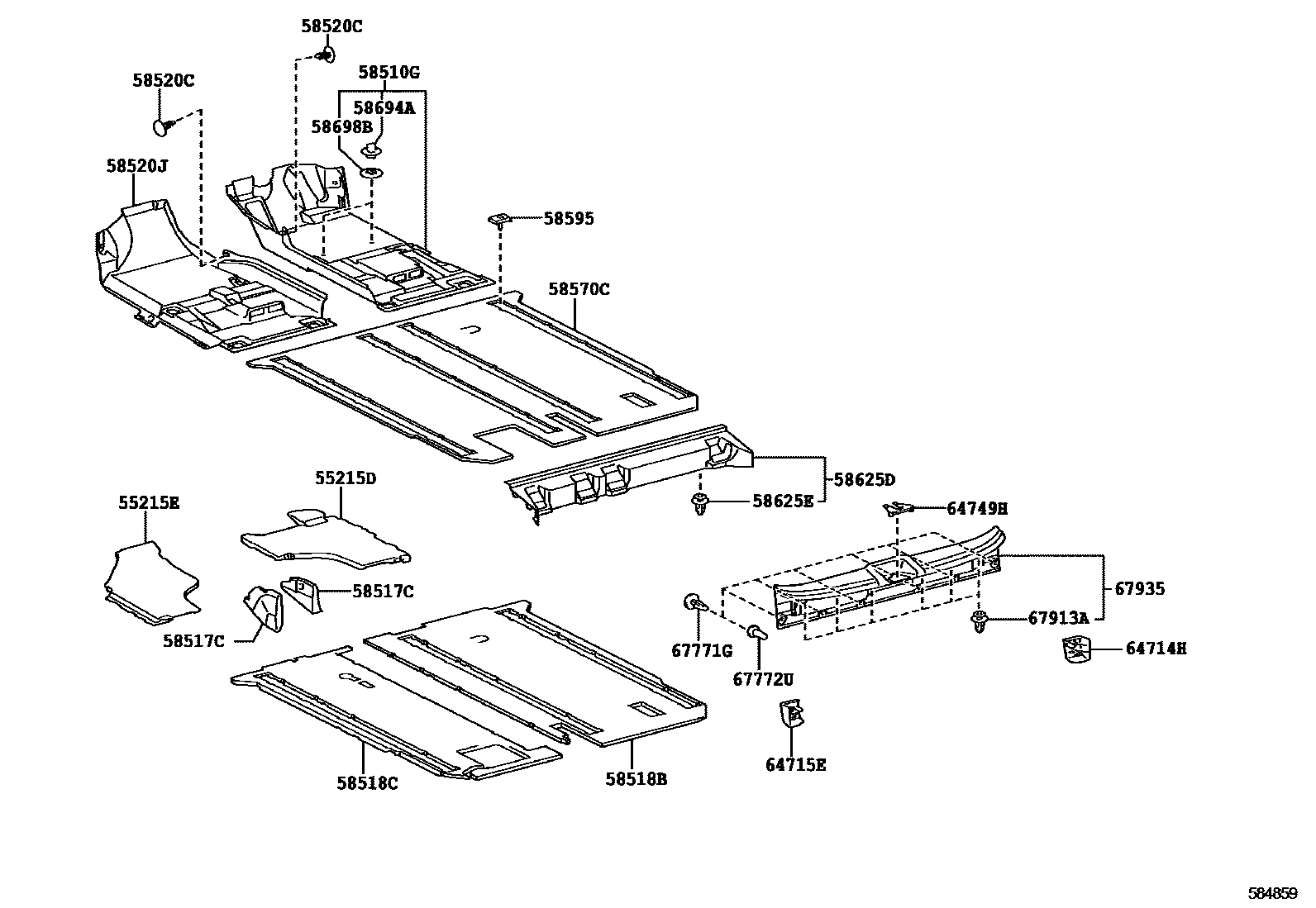

FLOOR MAT & SILENCER PAD
55215DPAD, DASH PANEL INSULATOR, NO.3
55215EPAD, DASH PANEL INSULATOR, NO.3
58510GCARPET ASSY, FLOOR, FRONT RH
SHELL,TRIM0#
58518BMAT, REAR FLOOR, NO.2
58520CCLIP(FOR FRONT FLOOR CARPET)
58520JCARPET ASSY, FLOOR, FRONT LH
SHELL,TRIM0#
58570CCARPET ASSY, REAR FLOOR
SHELL,TRIM0#
58595MOULDING, FLOOR CARPET, NO.3
SHELL,TRIM0#
58625DPLATE, REAR FLOOR MAT, NO.1
SHELL,TRIM0#
58625ECLIP(FOR REAR FLOOR MAT PLATE)
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
64714HCOVER, DECK SIDE TRIM, NO.1
SHELL,TRIM0#
64715ECOVER, DECK SIDE TRIM, NO.2
SHELL,TRIM0#
64749HCOVER, BACK DOOR STRIKER
SHELL,TRIM0#
67771GRETAINER, BACK DOOR CENTER GARNISH
SHELL,TRIM0#
67772UCAP, BACK DOOR CENTER GARNISH RETAINER
67913ACLIP(FOR SCUFF PLATE)
67935PLATE, BACK DOOR SCUFF
SHELL,TRIM0#
21 parts on this diagram · 1 diagram in section
