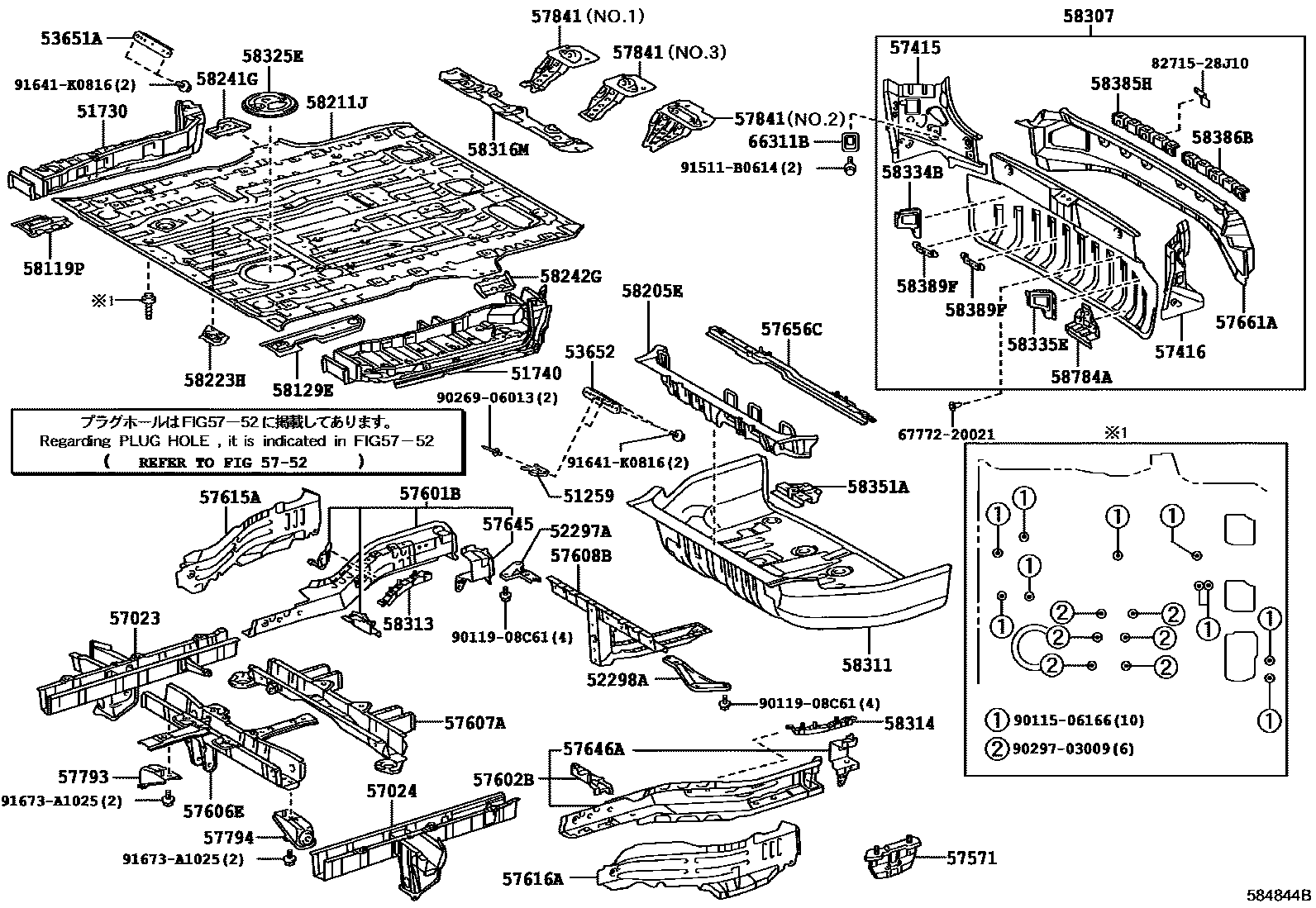

REAR FLOOR PANEL & REAR FLOOR MEMBER

51259PROTECTOR, REAR SUSPENSION MEMBER EDGE

main51259-28010iAHR20201304

51730STEP ASSY, REAR FLOOR, RH

main51730-28120iAHR20201304

51740STEP ASSY, REAR FLOOR, LH

main51740-28120iAHR20201304

52297ABRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-28010iAHR20201304

52298ABRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-28010iAHR20201304

53651ABRACE, REAR SUSPENSION, UPPER RH

main53651-28010iAHR20201304

53652BRACE, REAR SUSPENSION, UPPER LH

main53651-28010iAHR20201304

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-28480iAHR20201304

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-28490iAHR20201304

57415RAIL, FLOOR SIDE, REAR RH

main57415-28120iAHR20201304

57416RAIL, FLOOR SIDE, REAR LH

main57416-28110iAHR20201304

5752

57571RETAINER, BATTERY CARRIER MOUNTING

main57571-28010iAHR20201304

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-28090iAHR20201304

sub57601-28100

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-28080iAHR20201304

sub57602-28090

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-28820iAHR20201304

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-28460iAHR20201304

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-28240iAHR20201304

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-28060iAHR20201304

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-28050iAHR20201304

57645REINFORCEMENT, REAR SIDE MEMBER, RH

main57645-28070iAHR20201304-201605

sub57801-28050

57646AREINFORCEMENT, REAR SIDE MEMBER, LH

main57646-28040iAHR20201304-201605

sub57802-28020

57656CMEMBER, REAR FLOOR CROOS, NO.5

main57656-28070iAHR20201304

57661APANEL, REAR FLOOR REAR CROSS, OUTER

main57661-28030iAHR20201304

57793BRACKET, REAR SUSPENSION ARM, REAR RH NO.1

main57793-28031iAHR20201304

57794BRACKET, REAR SUSPENSION ARM, REAR LH NO.1

main57794-28031iAHR20201304

57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH

main57841-28080iAHR20201304

NO.1

main57841-28090iAHR20201304

NO.2

main57841-28100iAHR20201304

NO.3

58119PPLATE, FRONT FLOOR SIDE, RH

main58119-28030iAHR20201304

58129EPLATE, FRONT FLOOR SIDE, LH

main58129-28030iAHR20201304

58205EREINFORCE SUB-ASSY, REAR SEAT HINGE

main58205-28040iAHR20201304

58211JPAN, CENTER FLOOR

main58211-28290iAHR20201304

58223HREINFORCEMENT, FLOOR PANEL SIDE, RH

main58223-28030iAHR20201304

58241GPANEL, FLOOR SIDE, RH

main58241-28010iAHR20201304

58242GPANEL, FLOOR SIDE, LH

main58242-28010iAHR20201304

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-28110iAHR20201304

58311PAN, REAR FLOOR

main58311-2J870iAHR20201304

58313PANEL, REAR FLOOR SIDE, RH

main58313-28040iAHR20201304

58314PANEL, REAR FLOOR SIDE, LH

main58314-28020iAHR20201304

58316MRETAINER, REAR SEAT ANCHOR

main58316-28060iAHR20201304

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-28090iAHR20201304

58334BPLATE, REAR FLOOR CROSSMEMBER, CENTER RH

main58334-28010iAHR20201304

58335EPLATE, REAR FLOOR CROSSMEMBER, CENTER LH

main58335-28030iAHR20201304

58351ABRACKET, SPARE WHEEL CARRIER

main58351-28060iAHR20201304

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-28030iAHR20201304

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-28020iAHR20201304

58389FBRACKET, LOWER BACK COVER

main58389-28010iAHR20201304

58784ASUPPORT, TOOL BAG

main58784-28020iAHR20201304

66311BHOOK, ROPE

main66310-30011-A0iAHR20201304-201605

SHELL,TRIM0#

sub66310-30011

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

8271528J10BRACKET,WIRING HARNESS CLAMP

main82715-28J10

9011506166

main90115-06166

9011908C61

main90119-08C61

9026906013

main90269-06013

9029703009

main90297-03009

91511B0614

main91511-B0614

91641K0816

main91641-K0816

91673A1025

main91673-A1025

57 parts on this diagram · 1 diagram in section
